Sonance - Blaze PowerZone Connect 1502 – 1500 W DSP-enabled Class-D amplifier with 2 channels (Each) - Black
Available in stock

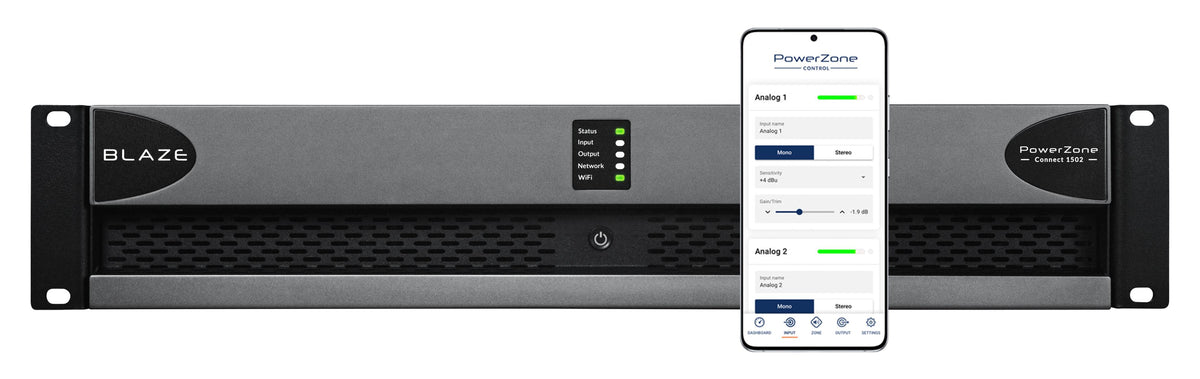

The PowerZone Connect 2U series is a line of ultra-reliable, full-matrix DSP-enabled Class-D amplifiers that delivers exceptional system configuration and flexible output, with a total system power ranging of up to 1500 W. The PowerZone Connect 2U series powers both conventional low-impedance (2 ohms to 16 ohms) loudspeakers and constant voltage (70 V/100 V) transformer-coupled loudspeakers, and features proportional distribution. Our intuitive PowerZone Control web app is built into all our PowerZone Connect amplifiers for easy system setup. PowerZone Control facilitates effortless customization of even the most challenging audio/voice systems by delivering many DSP configuration options and tuning features, including multizone setup, input mixing, priority and ducking, restriction, input and output EQ, S/PDIF output routing, high-pass filter, speaker presets, delay, Wall-S1 controller configuration, Sine generator, and much more.
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Most orders ship within a few business days — you will get tracking by email as soon as it is on the way. Questions about a delivery or a return? Reach our US-based team at info@improvemintfinancial.com or (855) 447-4921.
Highlights
- Number of Channels : 2 , see in specifications
- Total Power Handling : 1500 W , see in specifications
- Minimum Frequency Response : 20Hz , see in specifications
- Maximum Frequency Response : 20 kHz , see in specifications
- Amplifier Type : Integrated amplifiers , see in specifications
- Amplifier Class : D , see in specifications
- Network Connector(s) : 1 x LAN , see in specifications
- Impedance : 8 ohm , see in specifications
Specifications
General
| Brand | Sonance |
|---|---|
| Model Number | LBX-888-002 |
| Product Name | Blaze PowerZone Connect 1502 – 1500 W DSP-enabled Class-D amplifier with 2 channels (Each) |
| Product Width | 17.3 inches |
| Product Depth | 12.6 inches |
| Product Height | 3.5 inches |
| Product Weight | 13.01 pounds |
| Warranty - Parts | 5 years |
| Warranty - Labor | 5 Years |
All specifications (32)
Key specs
| Amplifier Class | D |
|---|---|
| Audio Only Inputs | Unbalanced RCA |
| Audio/Video Inputs | No audio/video inputs |
| Continuous Watts x Channel @ Ohms | 750 W x 2 @ 8 ohm |
| Color | Black |
| Maximum Watts x Channel @ Ohms | 1500 W @ 4 ohms bridged (1 channel) |
| Total Power Handling | 1500 watts |
Other
| Number of Channels | 2 |
|---|---|
| Minimum Frequency Response | 20 hertz |
| Impedance | 8 ohm |
| Maximum Frequency Response | 20 kilohertz |
| Amplifier Type | Integrated amplifiers |
| Video Only Inputs | No video only inputs |
| Network Connector(s) | 1 x LAN |
| Antenna Input | No antenna inputs |
| Speaker-Level Inputs | No |
| Line-Level Inputs | Yes |
| Speaker Connection Type | Banana Jack/Screw Terminals |
| Audio/Video Outputs | No audio/video outputs |
| Video Only Outputs | No video only outputs |
| App Compatible | Yes |
| Fan Cooled | Yes |
| Bridgeable | Yes |
Features
- Full Rack 2U Form Factor Professional-grade design with robust construction, ideal for fixed installations.
- Full-Matrix DSP Configuration via PowerZone Control Configure and manage the full DSP matrix directly through the built-in PowerZone Control web application.
- Hybrid Power Distribution (4 ohm, 8 ohm, 16 ohm, 70V/100 V) Flexible power distribution supporting both low-impedance (4 ohm to 16 ohm) and high-impedance (70 V/100 V) speaker configurations.
- Pascal UMAC Class-D Technology High-efficiency Class-D amplification powered by Pascal UMAC for superior audio performance.
- S/PDIF Input/Output Supports digital audio connectivity through S/PDIF inputs and outputs.
- Configurable GPIO (general purpose input/output) Customizable GPIO ports for enhanced control and integration with external systems.
- Energy Efficiency & Compliance Compliant with ErP and Energy Star standards for environmentally friendly operation.
- UL Listed Audio Equipment Certified to meet UL safety standards for professional audio equipment.
- UREC™ Universal Power Supply with PFC Reliable power supply featuring Power Factor Correction (PFC) for global compatibility.
- 5-Year Warranty Comes with a comprehensive 5-year warranty for long-term peace of mind.
