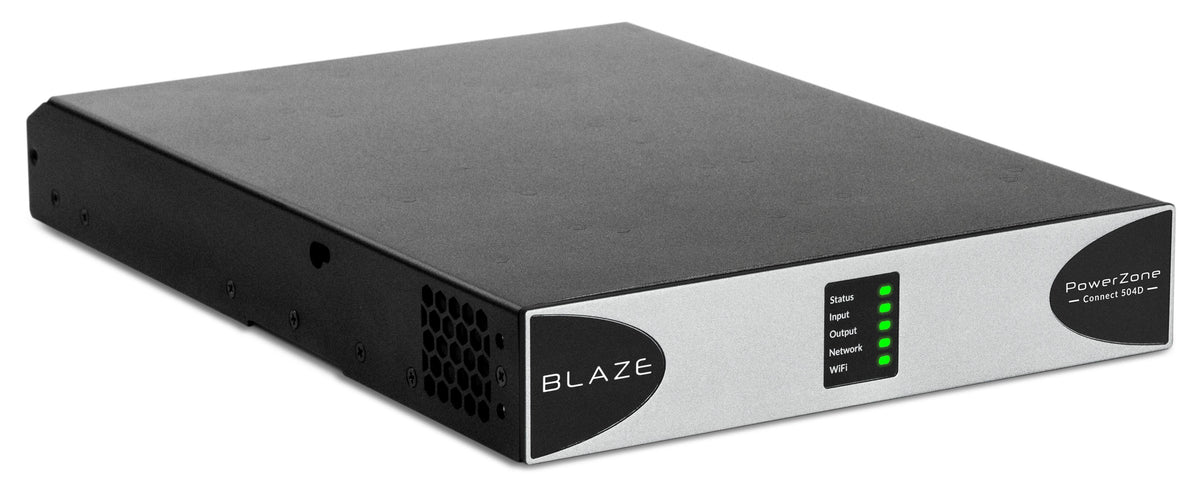

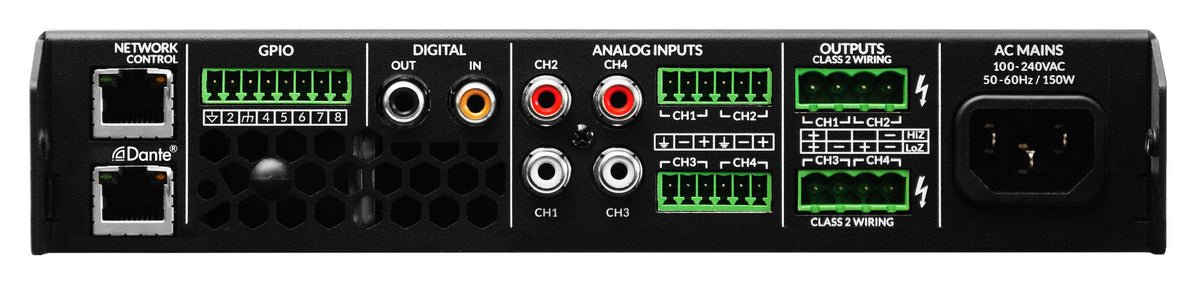

Sonance - Blaze PowerZone Connect 504D – 500 W DSP-enabled Class-D amplifier with 4 channels and Dante (Each) - Black

Type: Integrated Amplifiers

Model: UBX-888-029

SKU: 6647108

$2,079.99

Out of stock

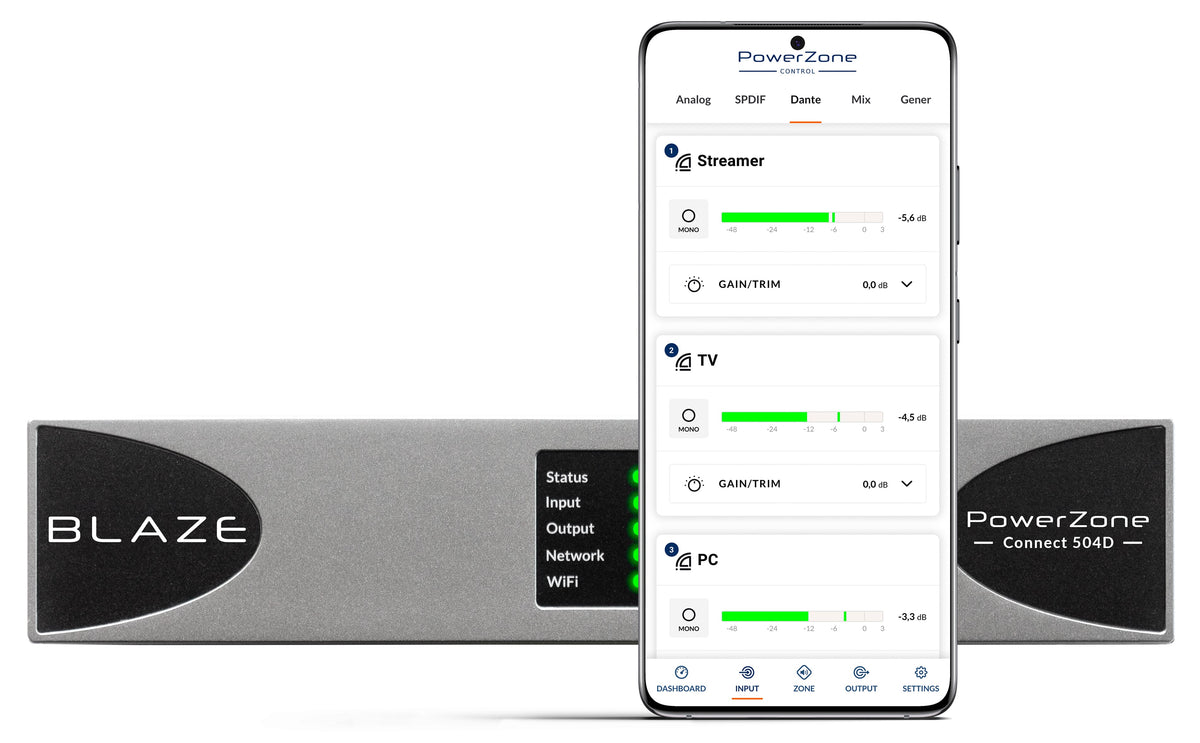

The PowerZone Connect 1U series is a line of DSP-enabled Class-D amplifiers designed to simplify the lives of system installers, providing unmatched reliability, efficiency, and exceptional system configuration. Their compact form factor makes them an ideal choice for audio/voice installation projects with limited space constraints, demanding high-output performance of up to 500 W. The 1U family powers both conventional low-impedance (4 ohms to 16 ohms) loudspeakers and constant voltage (70 V/100 V) transformer-coupled loudspeakers, and features automatic power-sharing technology for proportional distribution. Our intuitive PowerZone Control web app is built into all our PowerZone Connect amplifiers for easy system setup. PowerZone Control facilitates effortless customization of even the most challenging audio/voice systems by delivering many DSP configuration options and tuning features, including multizone setup, input mixing, priority and ducking, restriction, input and output EQ, S/PDIF output routing, high-pass filter, speaker presets, delay, Wall-S1 controller configuration, Sine generator, and much more. Specific models of the PowerZone Connect 1U amplifiers offer compatibility with Audinate Dante AoIP networks and installations.

Pickup Enter a ZIP to check Shipping Arrives in 5–7 business days

Low weekly payments
No Credit Needed
Pay it off early in 110 days

Shipping & Returns

Most orders ship within a few business days — you will get tracking by email as soon as it is on the way. Questions about a delivery or a return? Reach our US-based team at info@improvemintfinancial.com or (855) 447-4921.

Share:

Sonance - Blaze PowerZone Connect 504D – 500 W DSP-enabled Class-D amplifier with 4 channels and Dante (Each) - Black

$2,079.99

Highlights

Number of Channels : 4 , see in specifications
Total Power Handling : 500 W , see in specifications
Minimum Frequency Response : 20Hz , see in specifications
Maximum Frequency Response : 20 kHz , see in specifications
Amplifier Type : Integrated amplifiers , see in specifications
Amplifier Class : D , see in specifications
Network Connector(s) : 1 x LAN , see in specifications
Impedance : 8 ohm , see in specifications

Specifications

General

Brand	Sonance
Model Number	UBX-888-029
Product Name	Blaze PowerZone Connect 504D – 500 W DSP-enabled Class-D amplifier with 4 channels and Dante (Each)
Product Width	8.7 inches
Product Depth	12.6 inches
Product Height	1.7 inches
Product Weight	6.17 pounds
Warranty - Parts	5 years
Warranty - Labor	5 Years

All specifications (32)

Key specs

Amplifier Class	D
Audio Only Inputs	Unbalanced RCA
Audio/Video Inputs	No audio/video inputs
Continuous Watts x Channel @ Ohms	125 W x 4 @ 8 ohm
Color	Black
Maximum Watts x Channel @ Ohms	250 W @ 4 ohms bridged (2 channels)
Total Power Handling	500 watts

Other

Number of Channels	4
Minimum Frequency Response	20 hertz
Impedance	8 ohm
Maximum Frequency Response	20 kilohertz
Amplifier Type	Integrated amplifiers
Video Only Inputs	No video only inputs
Network Connector(s)	1 x LAN
Antenna Input	No antenna inputs
Speaker-Level Inputs	No
Line-Level Inputs	Yes
Speaker Connection Type	Banana Jack/Screw Terminals
Audio/Video Outputs	No audio/video outputs
Video Only Outputs	No video only outputs
App Compatible	Yes
Fan Cooled	Yes
Bridgeable	Yes

Features

Ultra-Compact ½-Rack Design Space-saving ½-rack form factor, perfect for installations where efficiency and performance must go hand in hand.
Full-Matrix DSP Configuration via PowerZone Control Configure and manage the full DSP matrix directly through the built-in PowerZone Control web application.
Dante 4×4 Networking Integrated Dante Ultimo 4×4 chip for seamless digital audio networking and system integration.
Hybrid Power Distribution (4 ohm, 8 ohm, 16 ohm, 70V/100 V) Flexible power distribution supporting both low-impedance (4 ohm to 16 ohm) and high-impedance (70 V/100 V) speaker configurations.
Pascal UMAC Class-D Amplification Delivers clean, efficient, and reliable power with industry-leading Class-D amplifier technology.
Flexible Power Sharing Distribute and allocate output power across channels to match system requirements without wasted capacity.
Digital Connectivity with S/PDIF Includes both input and output for high-quality digital audio signal transfer.
Configurable GPIO (general purpose input/output) Customizable GPIO ports for enhanced control and integration with external systems.
Energy Efficient and Compliant ErP and Energy Star certified for reduced power consumption and environmentally responsible operation.
Certified & Reliable UL listed for safety assurance, built with the UREC™ universal power supply with PFC for worldwide compatibility.
5-Year Warranty Comes with a comprehensive 5-year warranty for long-term peace of mind.
