Available in stock

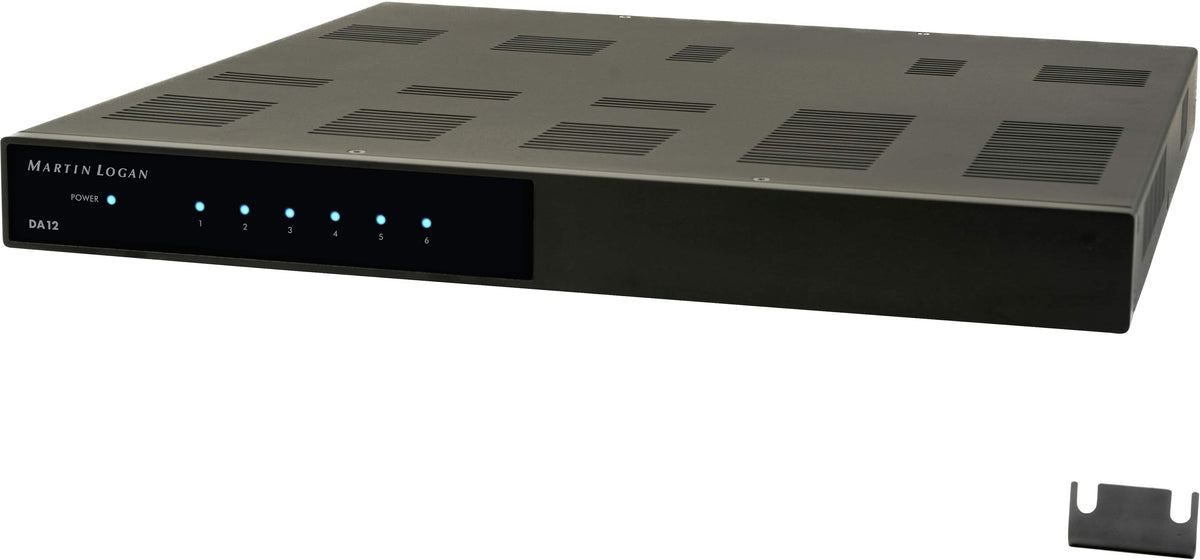

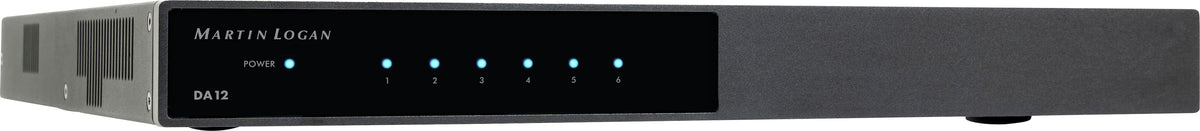

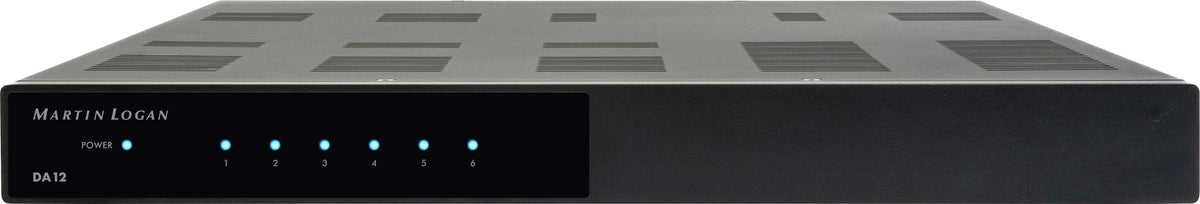

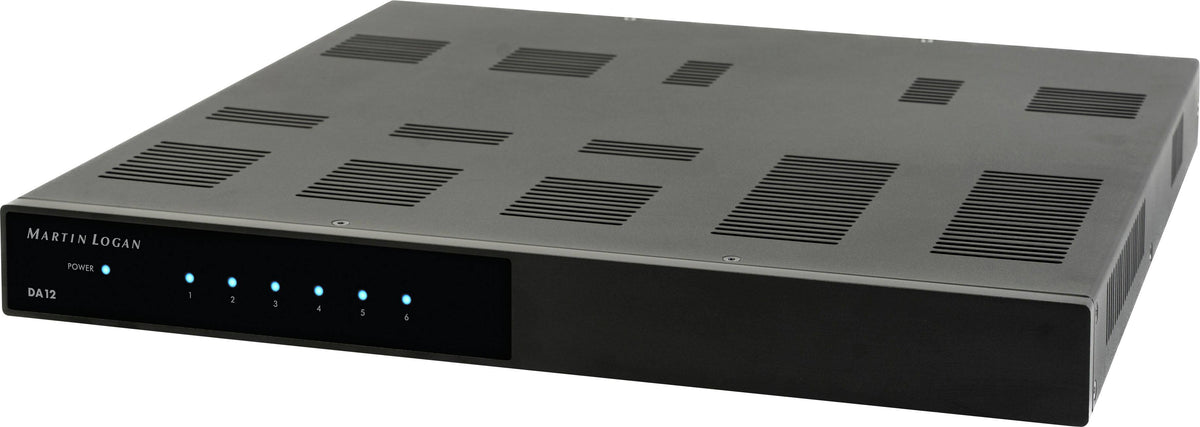

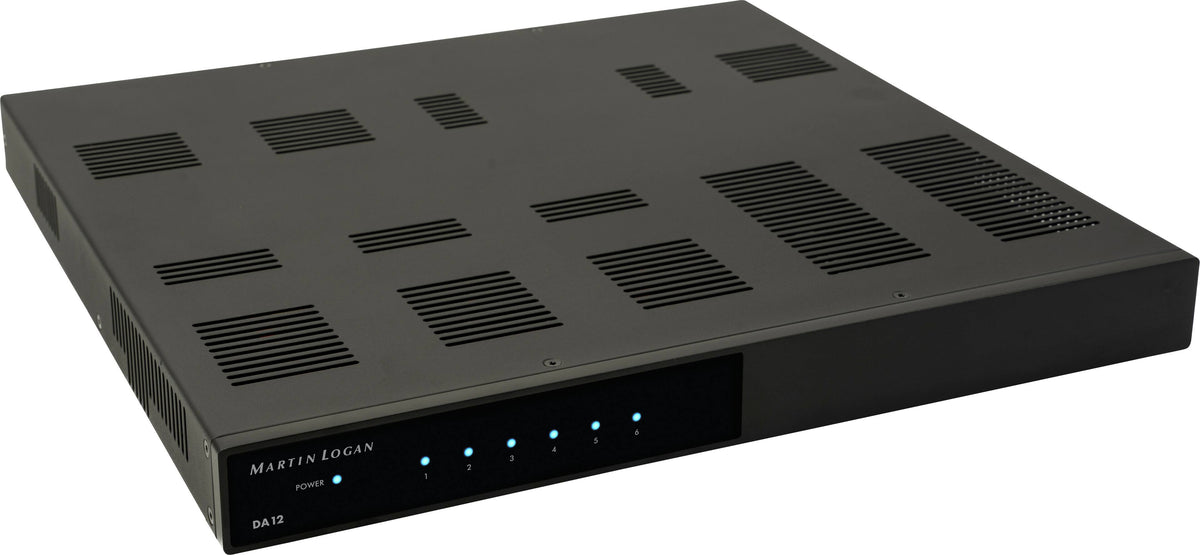

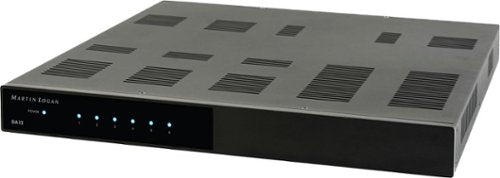

Multi-Room Audio Simplified. MartinLogan’s DA12 offers a simple, yet robust way to power your home’s multi-room music system. With 75W available on all of its 12 channels, DA12 provides plenty of muscle to really bring your custom installation speakers to life.
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Most orders ship within a few business days — you will get tracking by email as soon as it is on the way. Questions about a delivery or a return? Reach our US-based team at info@improvemintfinancial.com or (855) 447-4921.
Highlights
- Number of Channels : 12 , see in specifications
- Total Power Handling : 1000 W , see in specifications
- Minimum Frequency Response : 20Hz , see in specifications
- Maximum Frequency Response : 20 kHz , see in specifications
- Amplifier Type : Power amplifiers , see in specifications
- Amplifier Class : D , see in specifications
- Network Connector(s) : No network connectors , see in specifications
- Total Harmonic Distortion : 0.002 percent , see in specifications
Specifications
General
| Brand | MartinLogan |
|---|---|
| Model Number | DA12D |
| Product Name | DA12, 1000W, 12-Channel Distribution Amplifier |
| Product Width | 17 inches |
| Product Depth | 16.6 inches |
| Product Height | 1.75 inches |
| Product Weight | 16 pounds |
| Warranty - Parts | 3 years |
| Warranty - Labor | 3 years |
All specifications (28)
Key specs
| Amplifier Class | D |
|---|---|
| Amplifier Type | Power amplifiers |
| Number of Audio Zones | 6 |
| Continuous Watts x Channel @ Ohms | 75 Watts x 12 @ 8ohms |
| Color | Black |
| Maximum Watts x Channel @ Ohms | 150 Watts x 12 @ 4ohms |
| Speaker Connection Type | Banana Jack/Screw Terminals |
| Total Power Handling | 1000 watts |
Other
| Number of Channels | 12 |
|---|---|
| Minimum Frequency Response | 20 hertz |
| Total Harmonic Distortion | 0.002 percent |
| Maximum Frequency Response | 20 kilohertz |
| Video Only Inputs | No video only inputs |
| Network Connector(s) | No network connectors |
| Line-Level Inputs | Yes |
| Preamp Outputs | Yes |
| Video Only Outputs | No video only outputs |
| Fan Cooled | Yes |
| Bridgeable | Yes |
Features

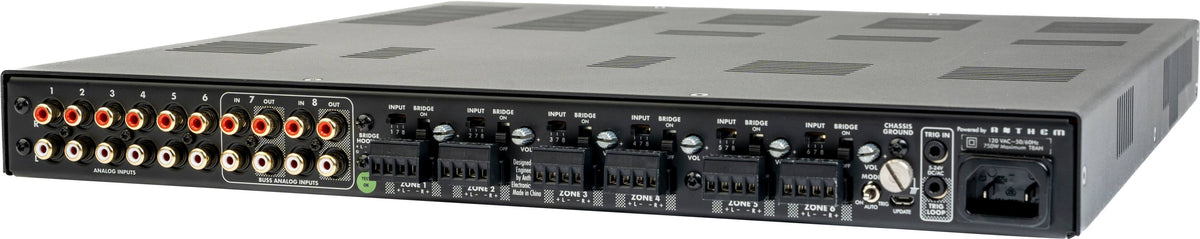

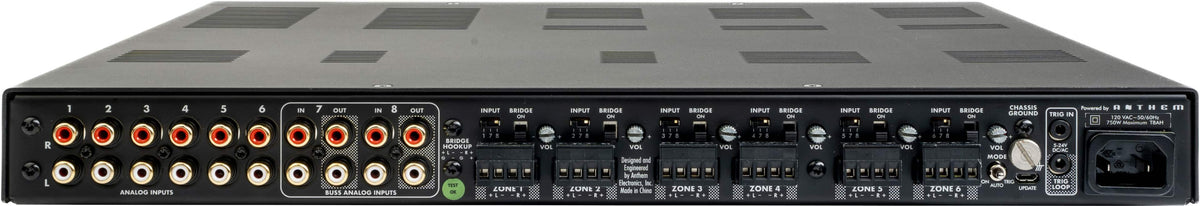

- Pure Power, Plain and Simple Developed with Anthem Electronics, the DA12 offers 75W x 12 channels at 8 ohms or 150W x 12 channels at 4 ohms. A streamlined version of MartinLogan's MDA series, it provides more power without built-in matrix switching. Featuring 6 dedicated analog inputs and 2 selectable global analog inputs, the DA12 easily adapts to your audio needs. Ideal for distributed audio or boosting home theater systems, just add your sources or matrix for powerful, ready-to-play content.
- Maximum Power Density The DA12 features a compact, efficient power supply delivering up to 1,000 watts in a 1U rack space. It offers 75W at 8 ohms and 150W at 4 ohms across 12 channels, with channel bridging for 280W at 8 ohms. Designed for custom speaker setups, it includes an automatic fan cooling system to ensure uninterrupted power in demanding situations.
- Superior Performance DA12 has been meticulously designed to deliver unparalleled audio quality tailored to custom install applications. With an impressive 0.002% THD and a high-efficiency compact power supply capable of delivering up to 1,000 watts, the DA12 is the perfect blend of superior sound quality and prodigious power, all in a compact package, making it a must-have for custom installations.
- Uncompromising Installation Reliability and Flexibility The DA12 ensures optimal safety and quality, preventing damage to the amplifier and connected speakers when properly installed. It features built-in safeguards against out-of-range current, temperature, and voltage, and multiple thermal sensors monitor temperature fluctuations for reliable performance in various environments.
Customer reviews
5.0
out of 5
1 customer review
Most recent review
-
Whole home audio power
Provides all necessary power for whole home audio experience.
Ratings and reviews are provided by our partner.
