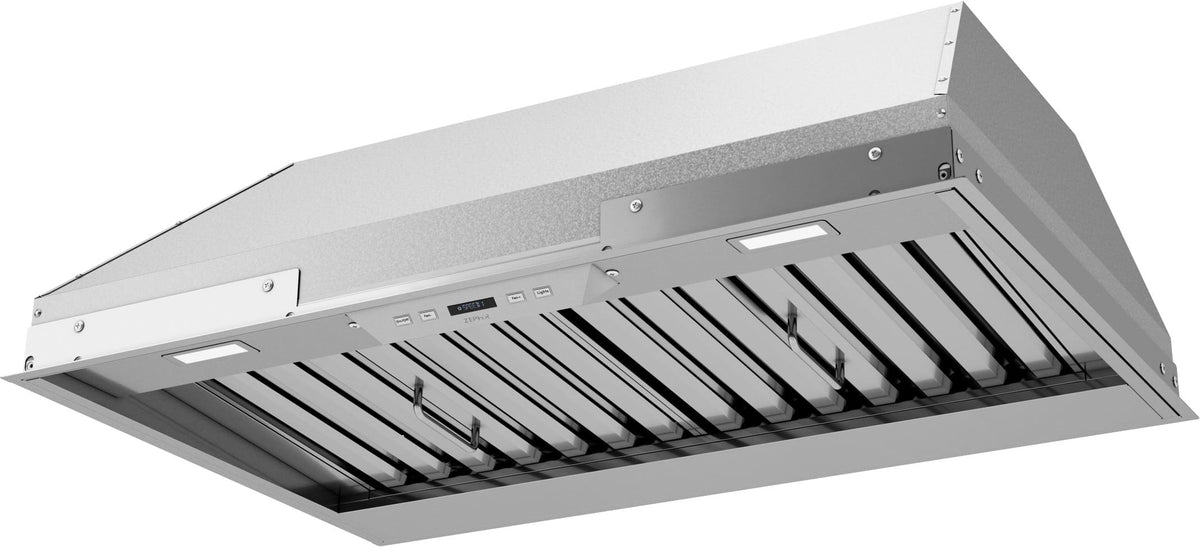

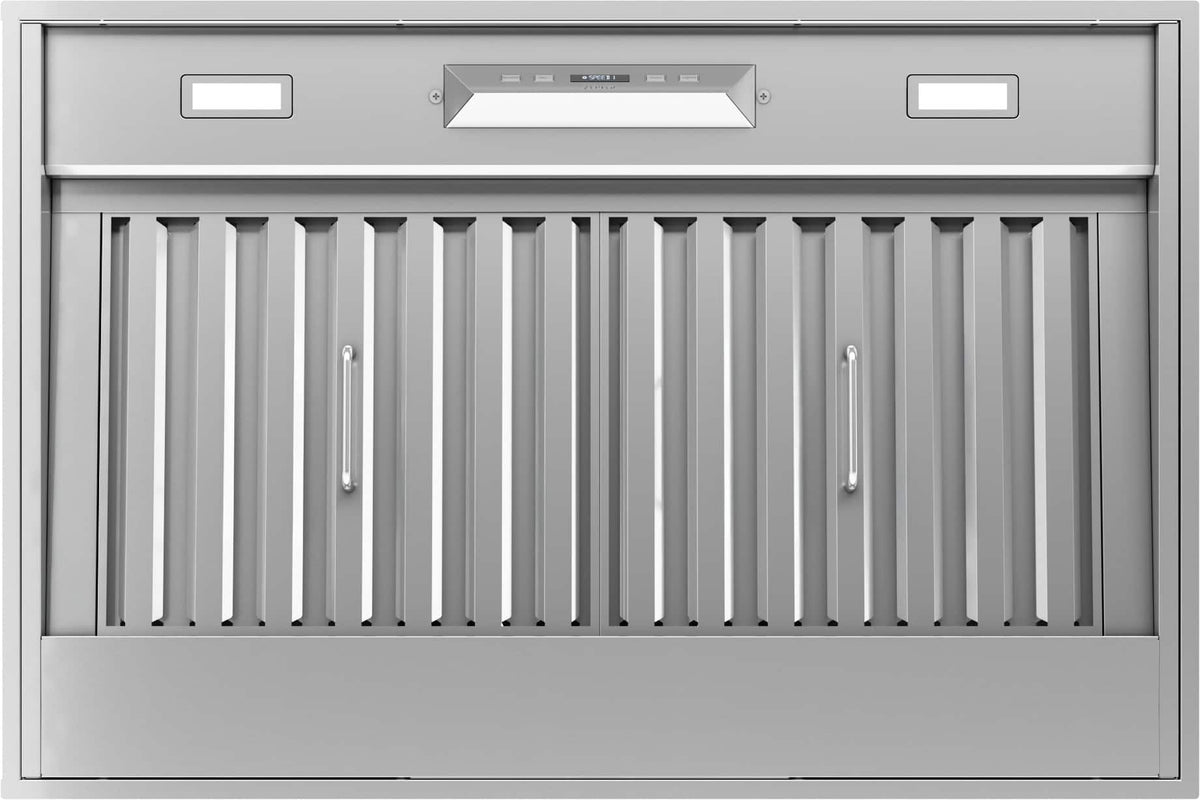

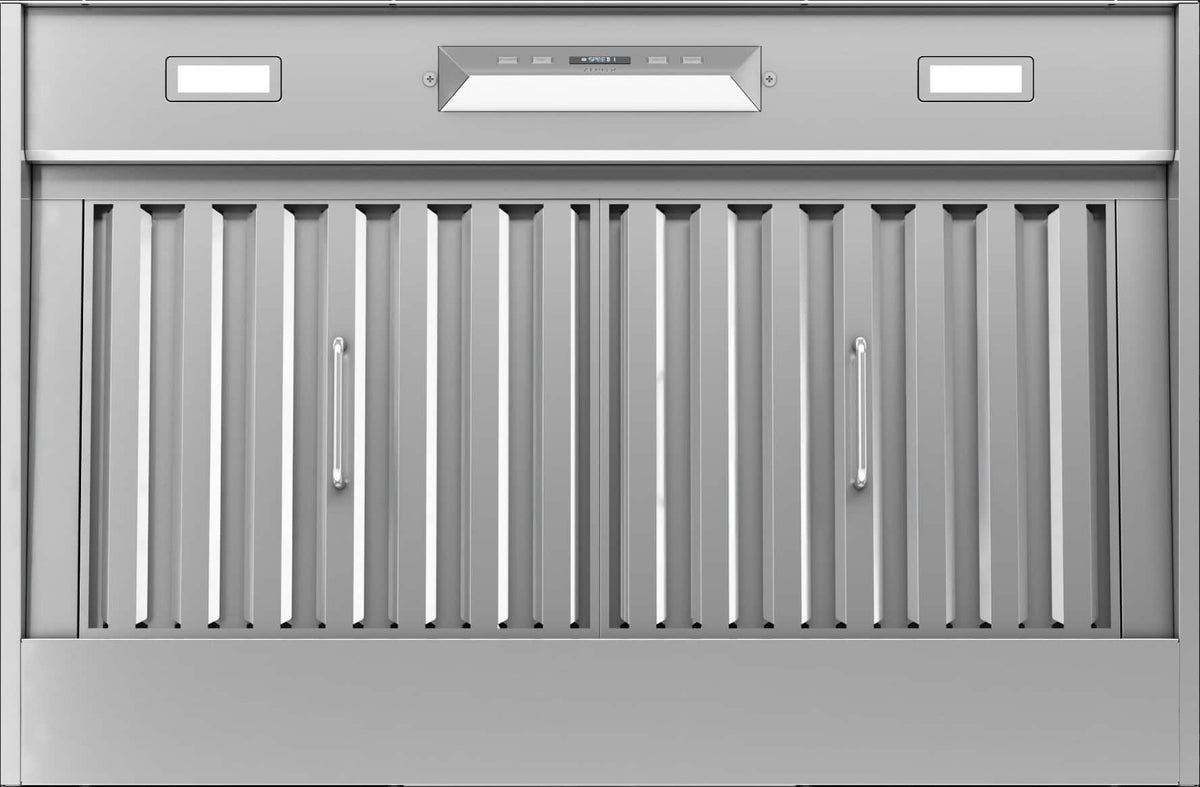

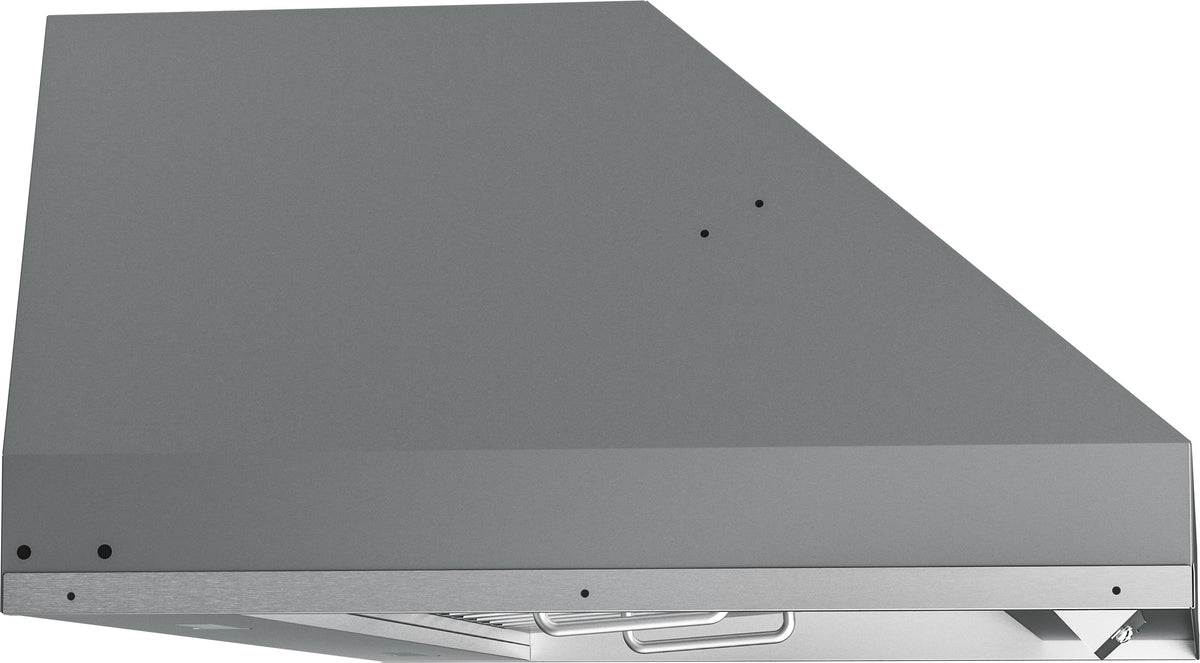

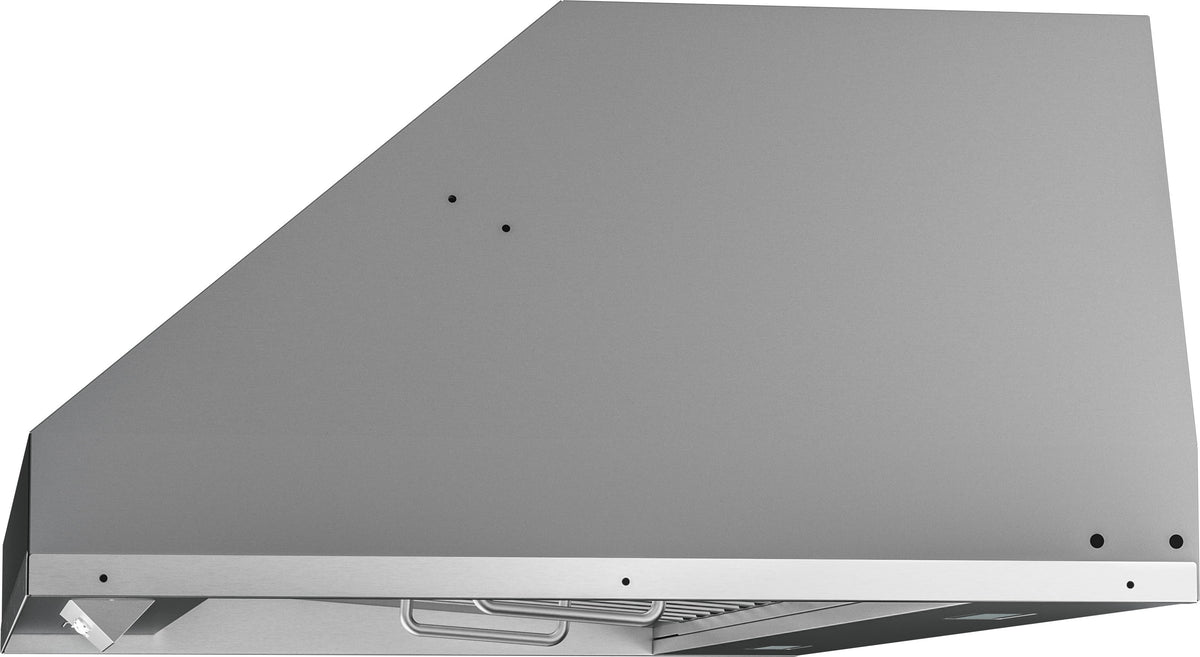

Zephyr - 36 inches - Externally Vented & Externally Vented - Range Hood Insert - Stainless Steel
Available in stock
Now available with LumiLight LED lighting with TruHue™ that lets you customize the ambiance from warm to cool (2700K to 5000K) with just a touch, Monsoon II delivers even more. Designed using universally-recognized, conventional installation dimensions, Monsoon II is a great option for custom cabinetry or an enclosure. Its stainless steel baffle filters with removable grease tray make it easy to maintain its pro-style look, while the new 5-speed electronic LCD controls, optional wireless remote control, and exclusive ACT™ technology give the homeowner more than they expected.
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Most orders ship within a few business days — you will get tracking by email as soon as it is on the way. Questions about a delivery or a return? Reach our US-based team at info@improvemintfinancial.com or (855) 447-4921.
Highlights
- Minimum Installation Height Above Cooktop : 26" , see in specifications
- Standardized Width : 36" , see in specifications
- Range Hood Type : Insert , see in specifications
- Vent Style : External , see in specifications
- Maximum Installation Height Above Cooktop : 36" , see in specifications
- Vent Type : Ducted , see in specifications
- Number of Fan Speeds : 5 , see in specifications
- Control Type : Button , see in specifications
Specifications
General
| Brand | Zephyr |
|---|---|
| Model Number | AK9334CS |
| Product Name | Monsoon II 36 in. 650 CFM Insert Mount Range Hood with LED Light |
| Product Width | 34.375 inches |
| Product Depth | 22.5 inches |
| Product Height | 12 inches |
| Product Weight | 40.1 pounds |
| Warranty - Parts | 3 years |
| Warranty - Labor | 1 year |
All specifications (43)
Key specs
| Color | Stainless Steel |
|---|---|
| Vent Type | Ducted |
| Range Hood Type | Insert |
| Dishwasher-Safe Filter | Yes |
| Integrated Light(s) | Yes |
| Temperature Sensor | Yes |
| Control Type | Button |
Other
| Minimum Installation Height Above Cooktop | 26 inches |
|---|---|
| Maximum Installation Height Above Cooktop | 36 inches |
| Standardized Width | 36 inches |
| Duct Shape | Round |
| Cut-Out Width | 34.625 inches |
| Cut-Out Depth | 22.75 inches |
| Exhaust Vent Location | Top/Rear |
| Vent Style | External |
| Number of Fan Speeds | 5 |
| Display Type | LCD |
| Delay Shut-Off | Yes |
| Auto Fan Shut-Off | Yes |
| Remote Control | Yes |
| Damper Included | No |
| Number of Lights | 2 |
| Number of Light Levels | 2 |
| Bulb Type Required | LED |
| Bulb(s) Included | Yes |
| Maximum Bulb Wattage | 6 watts |
| Maximum Air Flow Capacity | 650 cubic feet per minute |
| Minimum Air Flow Capacity | 200 cubic feet per minute |
| Maximum Operating Sound Level | 8 sones |
| Minimum Operating Sound Level | 1 sones |
| Removable Grease Filter | Yes |
| Number of Filters | 2 |
| Amperage | 5 amperes |
| Voltage | 120 volts |
Features
- Airflow Control Technology (ACT) Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
- LumiLight LED Lighting with TruHue A bright idea: customize your hoods light to harmonize with the rest of your kitchens lighting at the touch of a button with TruHue anywhere from 2700K to 5000K.
- Optional Dual Internal Blower Kit Available Optional dual internal blower kit available to fit your application. (PBD-1200B)
- Electronic Touch Controls Electronic touch controls adjust the range hood blower and LED light levels, and enable the auto delay-off function.
- Professional Baffle Filters High-airflow baffle filters that are dishwasher safe and ensure a lifetime of exceptional performance.
- Optional Wireless Remote Control (RC-0002) ADA-compliant, wireless RF remote control with battery and holder. Equipped with a magnet on the back for easy storage on any magnetic surface. Maximum remote control communication distance is 15 feet from the hood. Please check your Zephyr range hoods specification sheet to ensure compatibility.
- Dual-Level Lighting The dual-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- TempGuard TempGuard is a built-in safety feature that turns on the fan if excessive heat is detected.
