Helos 22 features dual tweeters and a dual voice coil woofer. This design allows the speaker to provide stereo sound from a single speaker, ideal for use in small rooms such as bathrooms, small offices, entryways, and kitchens. Helos 22 also bridges to deliver mono sound reproduction with wide dispersion. You can use Helos 22 for almost any application.
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Most orders ship within a few business days — you will get tracking by email as soon as it is on the way. Questions about a delivery or a return? Reach our US-based team at info@improvemintfinancial.com or (855) 447-4921.
Highlights
- Speaker Type : In-Ceiling , see in specifications
- Minimum Frequency Response : 47Hz , see in specifications
- Maximum Frequency Response : 20 kHz , see in specifications
- Impedance : 8 ohms , see in specifications
- Number of Speakers : 1 , see in specifications
- Peak Power Handling : 200 W , see in specifications
- Sensitivity : 89 dB , see in specifications
- RMS Power : 100 W , see in specifications
Specifications
General
| Brand | MartinLogan |
|---|---|
| Model Number | HELOS22 |
| Product Name | Helos 22 6-1/2" In-Ceiling Speaker (Each) |
| Product Width | 9.5 inches |
| Product Depth | 5.13 inches |
| Product Height | 9.1 inches |
| Product Weight | 4.5 pounds |
| Warranty - Parts | 5 years |
| Warranty - Labor | 5 years |
All specifications (35)
Key specs
| Wireless Multi-Room Audio | No |
|---|---|
| Audio Only Inputs | No audio only inputs |
| Color | Paintable White |
| Speaker Connectivity | Wired |
| Maximum Frequency Response | 20 kilohertz |
| Speaker Type | In-Ceiling |
| RMS Power | 100 watts |
| Speaker Wire Connection Type | Banana Jack/Screw Terminals |
| Speaker Wire Included | No |
Other
| Peak Power Handling | 200 watts |
|---|---|
| Impedance | 8 ohms |
| Minimum Frequency Response | 47 hertz |
| Sensitivity | 89 decibels |
| Number of Speakers | 1 |
| Number of Tweeters | 2 |
| Tweeter Size | 0.75 inches |
| Number of Midranges | 0 |
| Number of Drivers | 3 |
| Driver Size | 0.75 inches |
| Number of Woofers | 1 |
| Woofer Size | 6.5 inches |
| Network Connector(s) | No network connectors |
| Indoor Or Outdoor Use | Indoor |
| Mounting Dimensions | 5.7 Cut out diameter |
| Cable(s) Included | None |
| ENERGY STAR Certified | No |
Features

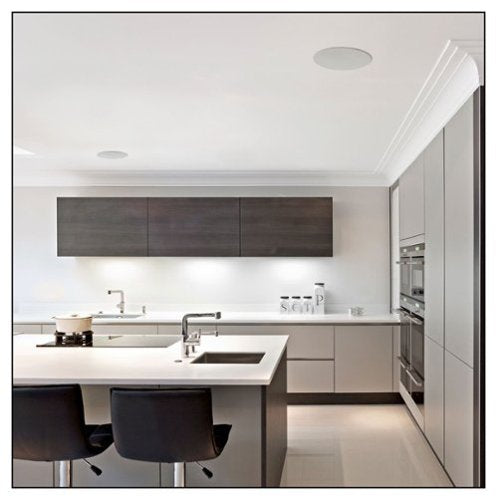

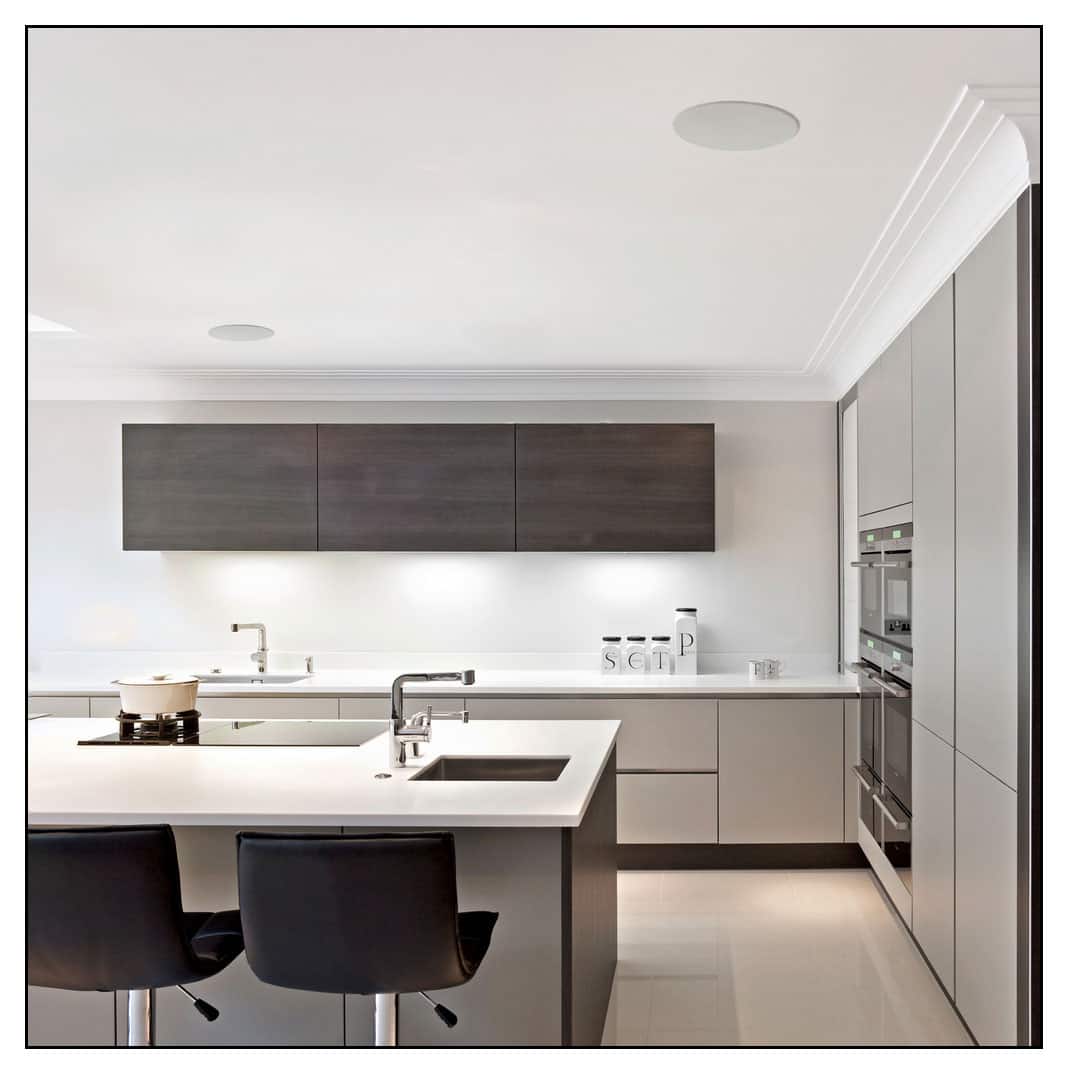

- Handles up to 200W maximum power For robust, controlled audio. Designed for use in small rooms, such as a bathroom, kitchen, entryway, small office or hallway. Can be used in multichannel or single-channel sound systems.
- 6-1/2" cast-basket, high-rigidity, aluminum-cone woofer With dual voice coils, an extended throw-drive assembly and thermal protection provides rich, vibrant sound.

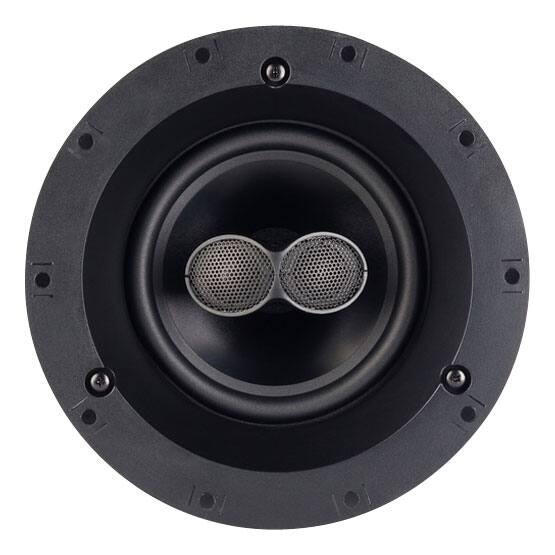

- Dual 3/4" neodymium soft-dome tweeters Deliver crisp, high tones and can be aimed, so you can easily direct your music toward a specific listening area.

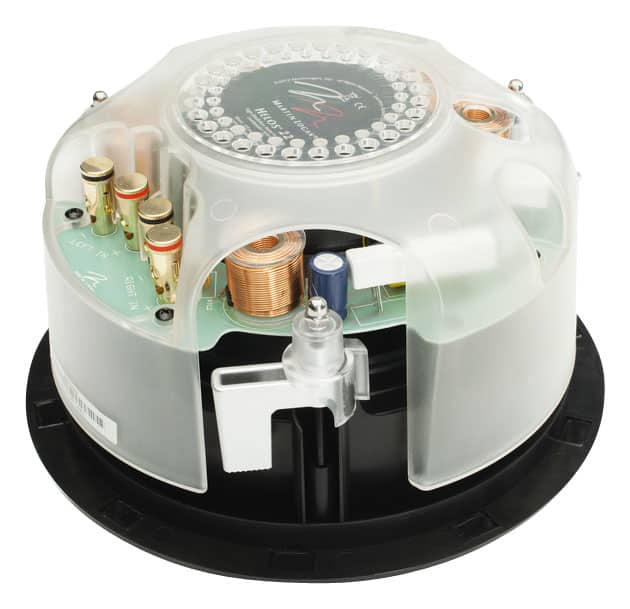

- Advanced-topology Vojtko crossover With polyester capacitors and air-core coils ensures extremely low distortion and seamless driver integration, as well as preserves sonic nuances while handling a source's full acoustic dynamics.
- Push-style binding posts Accept bare wires up to 5 AWG, so you can easily connect 2 sets of speaker cables from your amplifier's left and right channels. Compatible with 4-, 6- and 8-ohm-rated amplifiers (not included).
- Ultralow-profile, microperforated grille with no visible bezel Can be painted, making it easy to integrate the speaker into your ceiling. Magnets secure the grille in place to help reduce the risk of warping or damage during installation.
- 8-3/8"H x 8-3/8"W mounting cutout dimensions Mounting depth: 4-9/10". An included full-size template features quick-reference instructions and die-cut guides to simplify the process of creating the cutout hole.

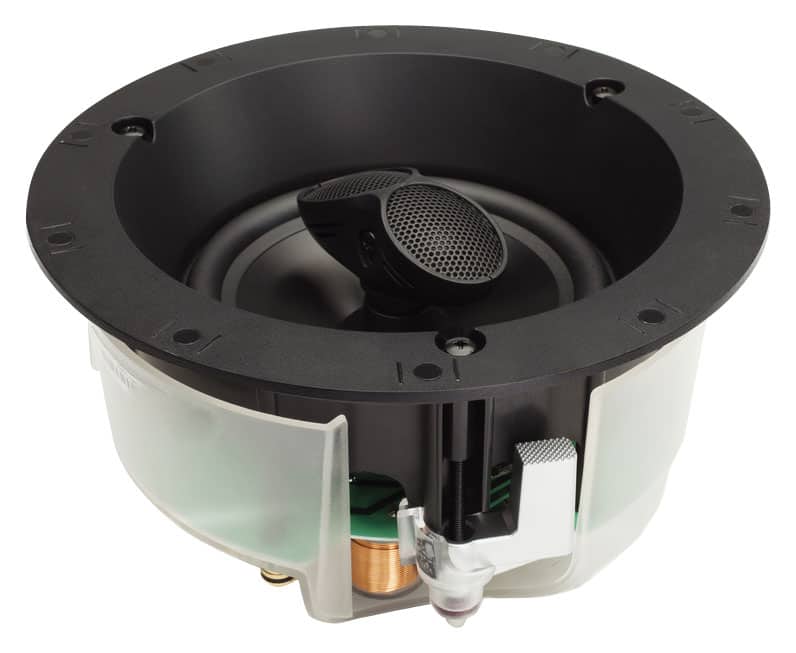

- Mounting-lock system Utilizes constant-control mounting locks to firmly couple the speaker's chassis to the ceiling for quick, easy installation. The mounting locks store within a self-contained housing when not in use.
- 47Hz - 20kHz frequency response (±3dB) Ensures a wide range of accurately reproduced sound.
- 89dB sensitivity @ 2.83V/m For powerful audio.
- 4 ohms mono nominal impedance (8 ohms x 8 ohms stereo) Ensures efficient conduction of power through the speaker.
