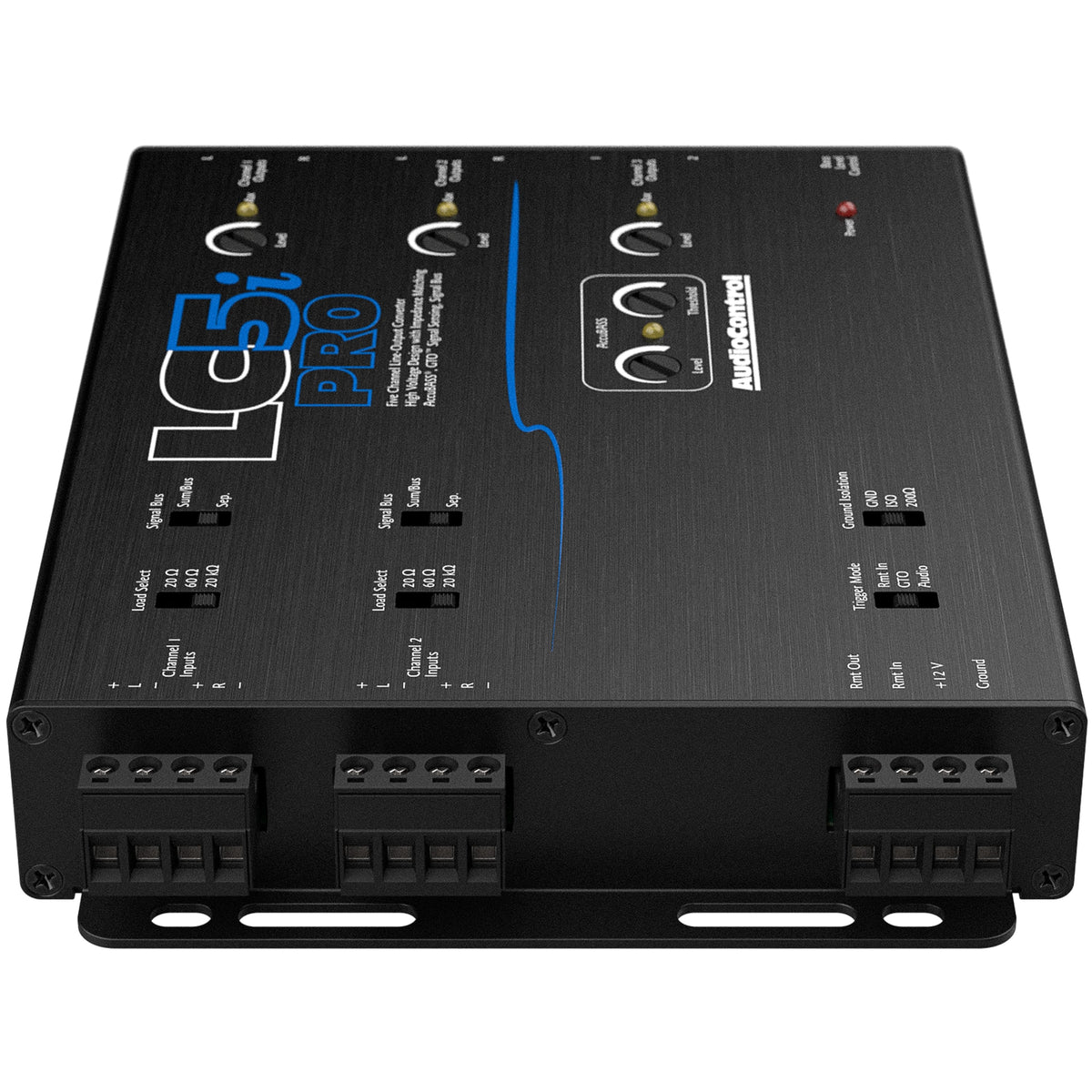

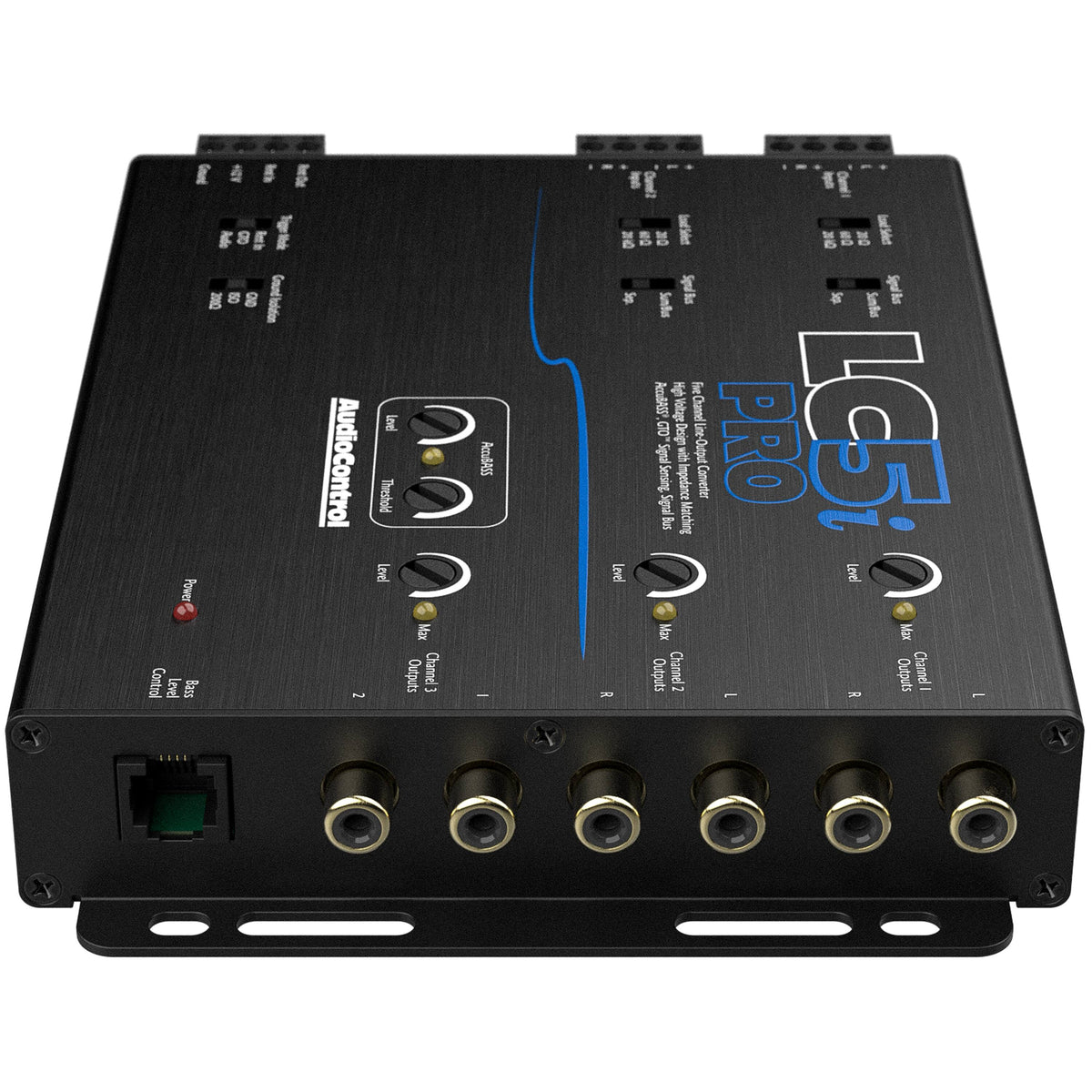

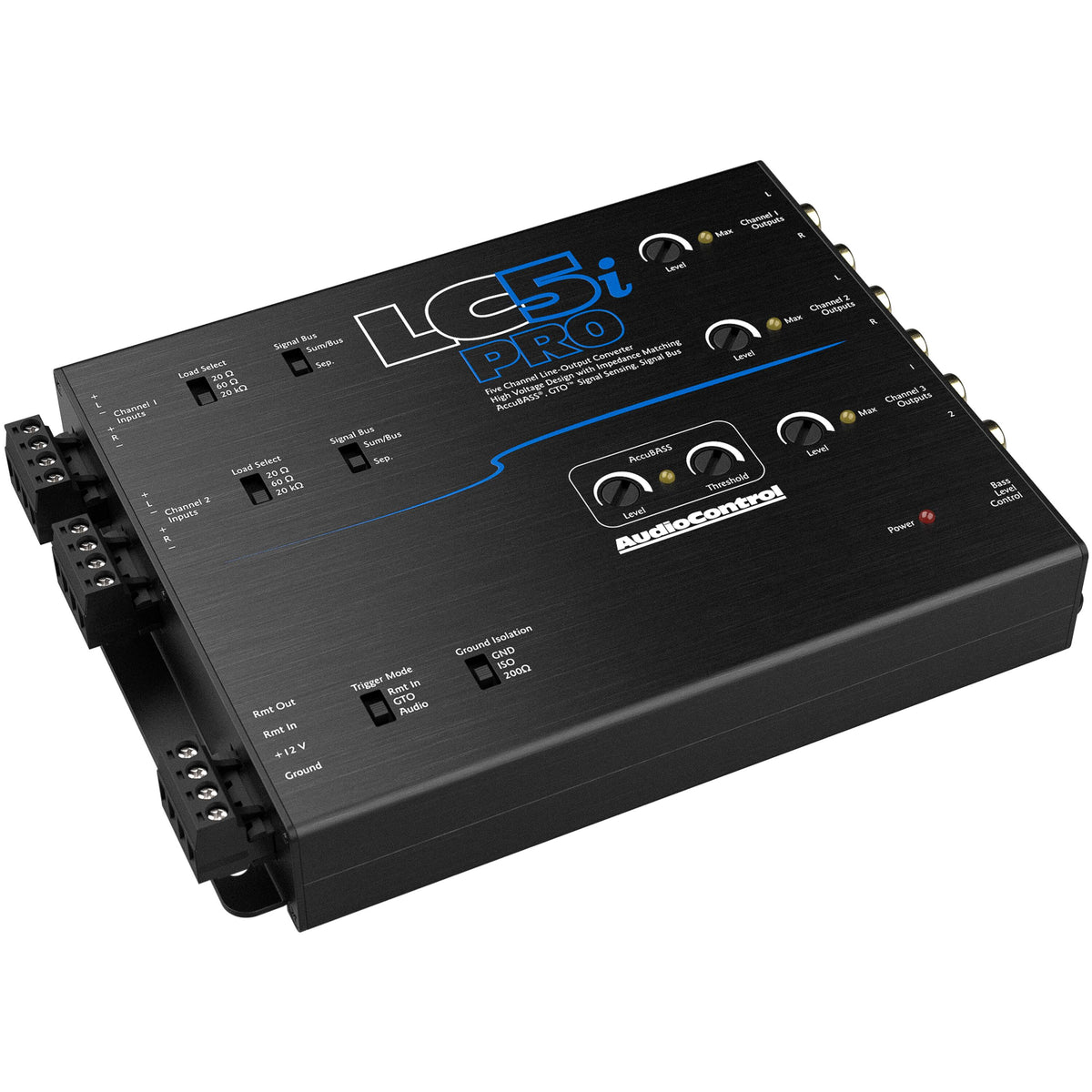

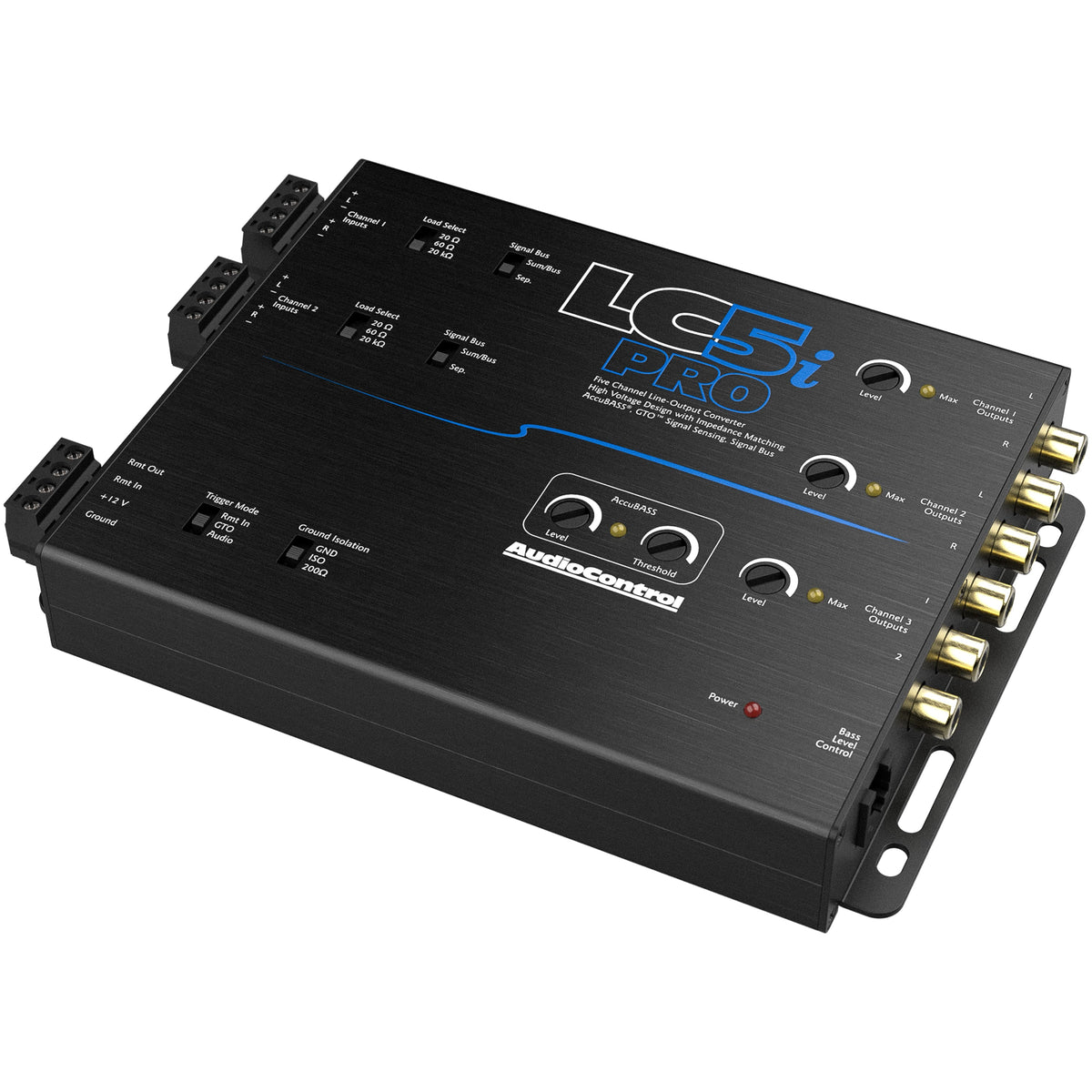

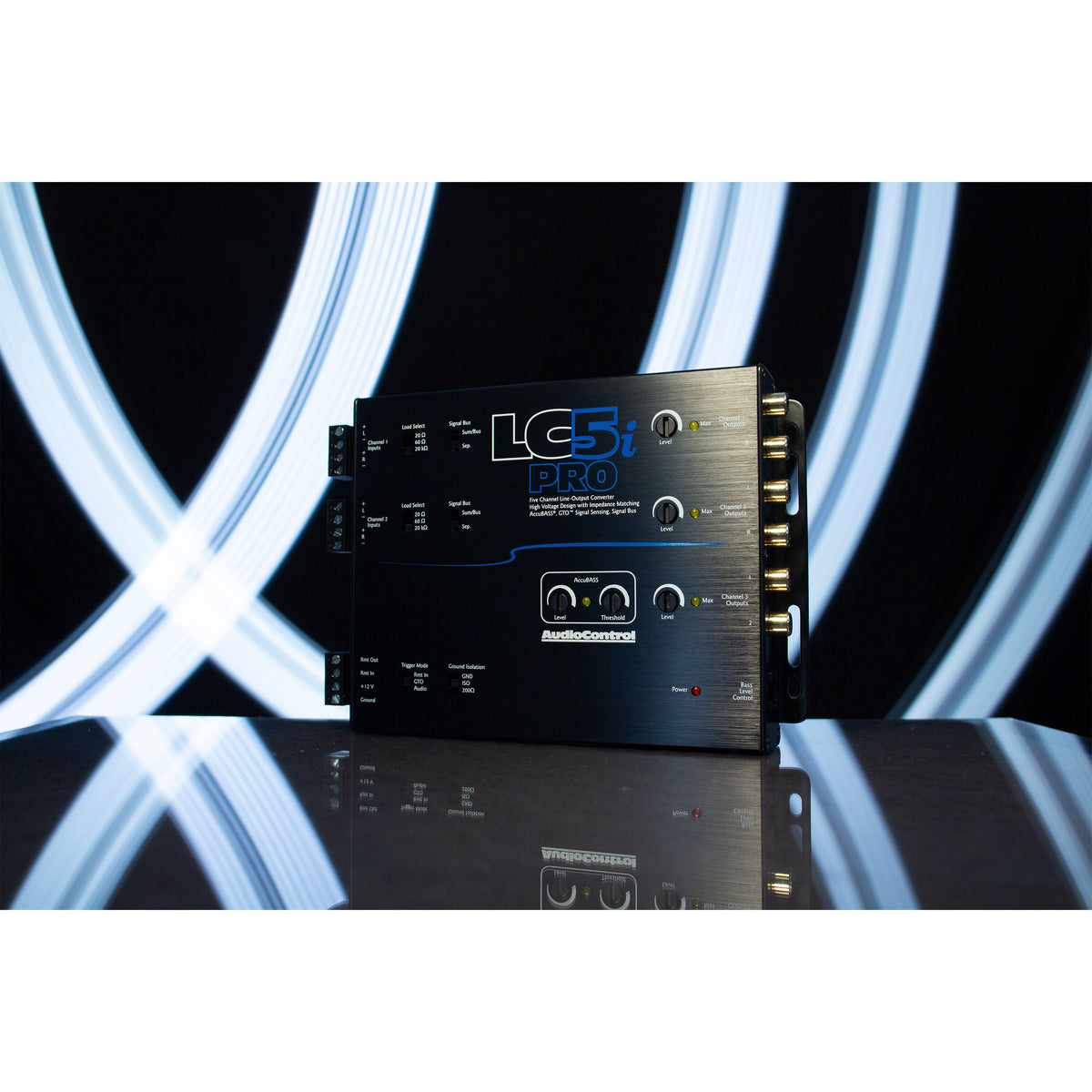

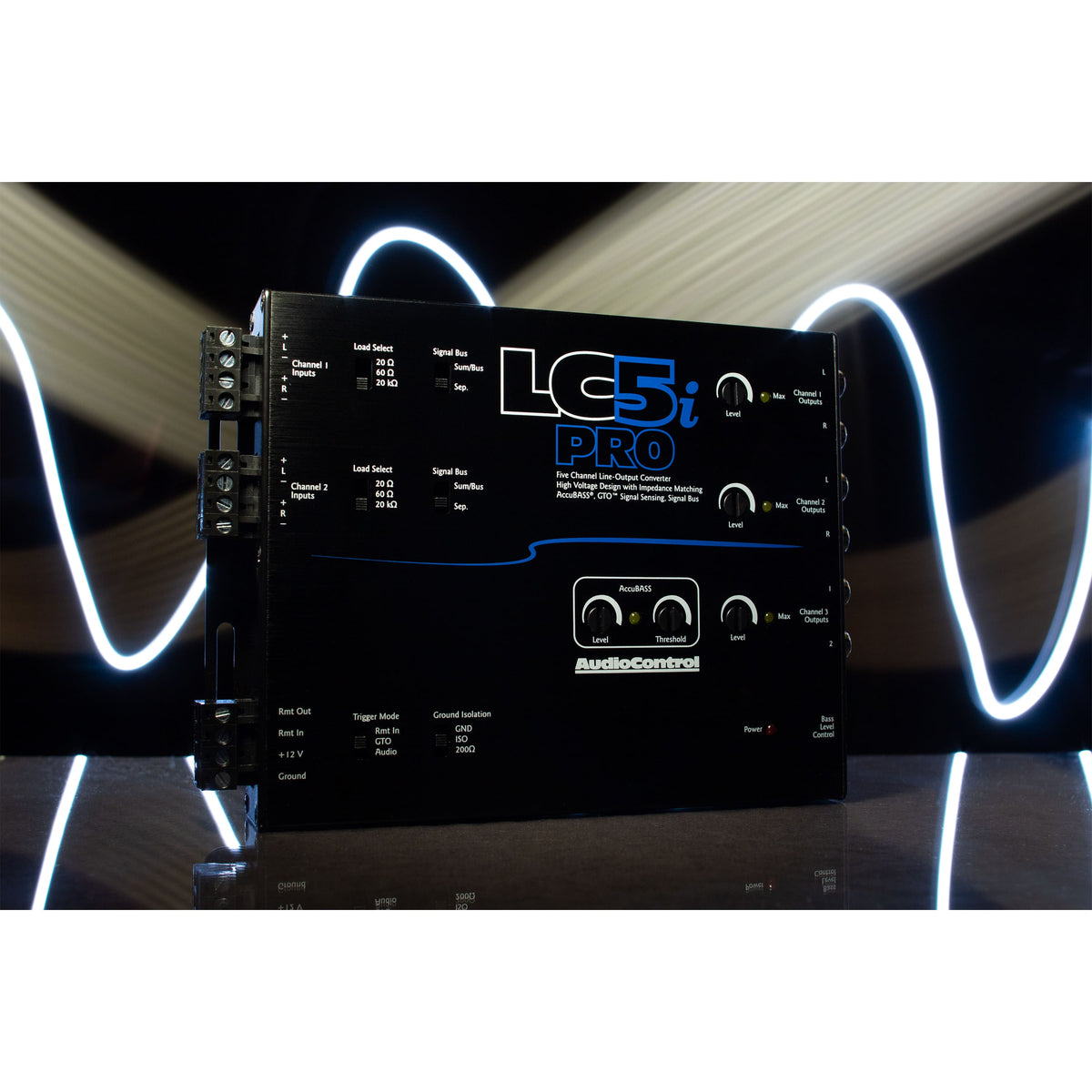

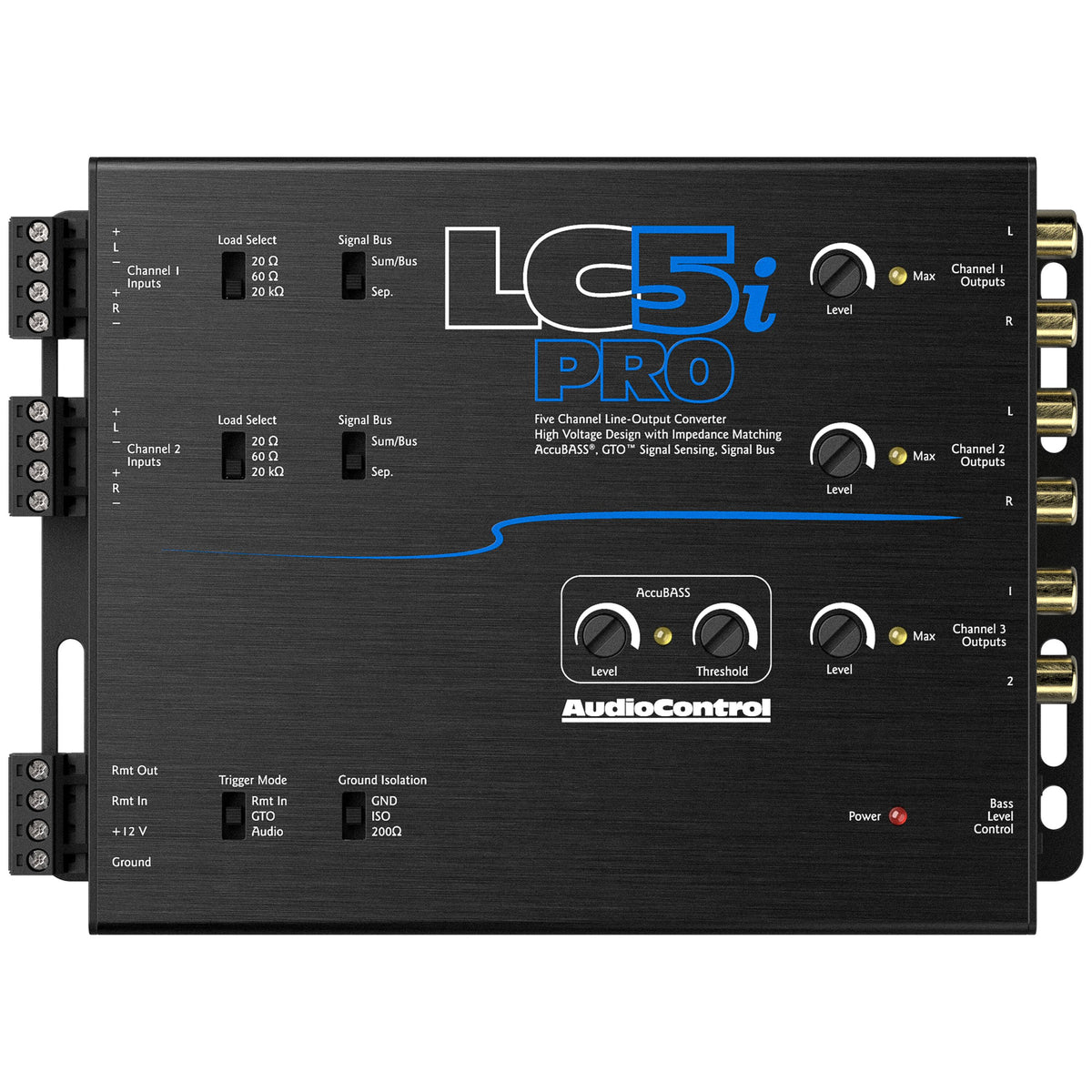

AudioControl - 5-Channel Active Line Output Converter with AccuBASS and Subwoofer Control - Black
Available in stock

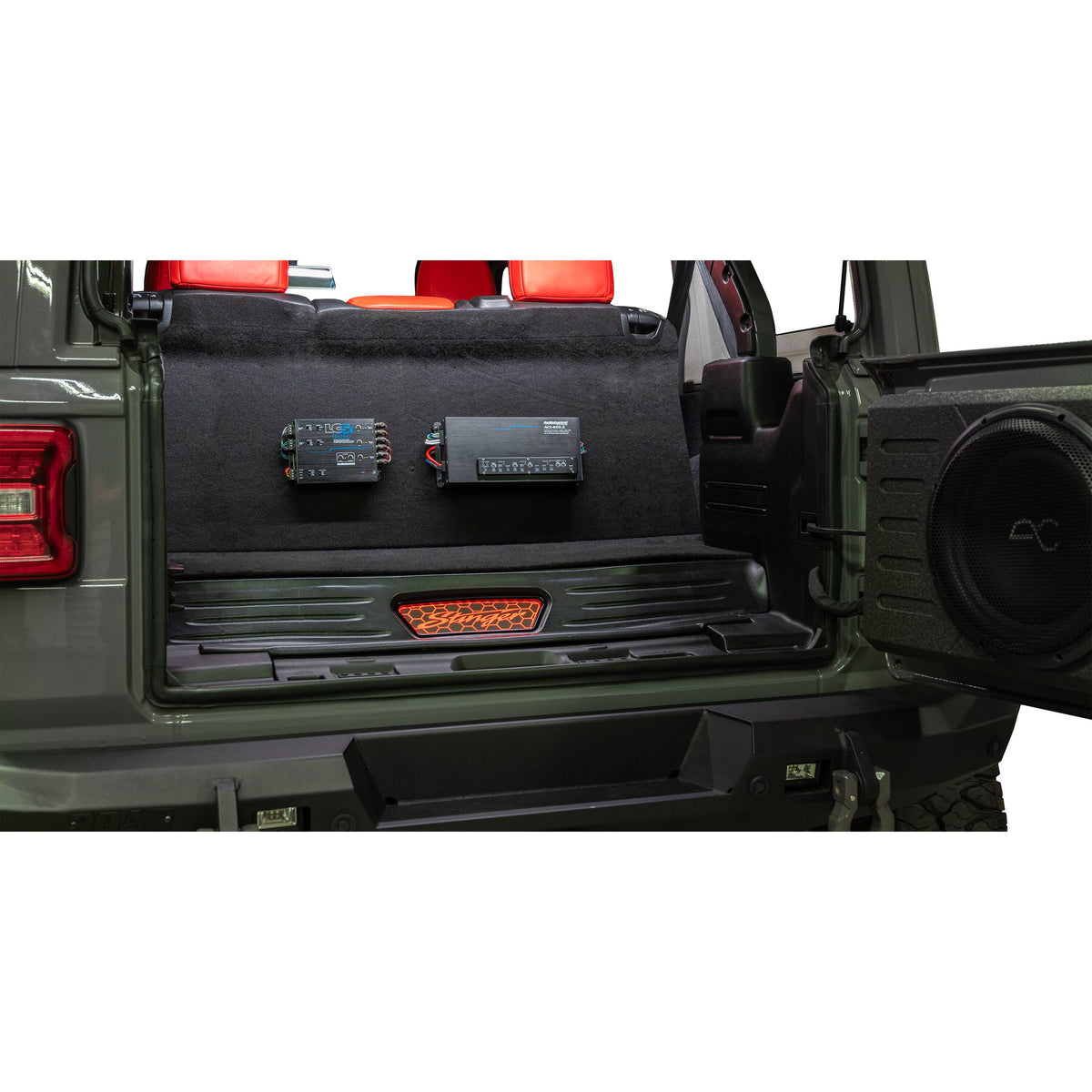

Easily add an aftermarket amplifier or subwoofer to your vehicle’s factory audio system with this 5-channel active line output converter by AudioControl. The LC5iPRO converts speaker-level (high-level) audio signals to RCA preamp (low-level) signals so you can install an aftermarket amplifier or subwoofer without replacing your factory radio. This five-channel line output converter also features subwoofer control and AccuBASS technology so you can turn up the volume without losing bass.
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Most orders ship within a few business days — you will get tracking by email as soon as it is on the way. Questions about a delivery or a return? Reach our US-based team at info@improvemintfinancial.com or (855) 447-4921.
Highlights
Specifications
General
| Brand | AudioControl |
|---|---|
| Model Number | LC5iPRO |
| Product Name | 5-Channel Active Line Output Converter with AccuBASS and Subwoofer Control |
| Product Width | 7 inches |
| Product Height | 1.14 inches |
| Product Weight | 1.1 pounds |
| Warranty - Parts | 5 years |
| Warranty - Labor | None |
All specifications (14)
Key specs
| Color | Black |
|---|
Other
| Vehicle Compatibility | Universal |
|---|---|
| Vehicle Type Compatibility | Automobile |
| Product Compatibility | Amplifier |
| Product Type | Line output converter |
| Product Length | 5.1 inches |
Features
- Compatible with most vehicles’ OEM audio systems For use when adding aftermarket amplifiers to car audio systems without RCA preamp outputs.
- 5-channel interface with dual amplifier preamp outputs Features two sets of active speaker-level inputs, two sets of full range main line-level outputs, and one set of low-passed bass line-level outputs for adding an aftermarket subwoofer.
- 400W (40V) peak power input per channel @ 20k ohms For high-quality sound.
- 9.5V RMS (13V peak) maximum output voltage @ 14.4V For efficient operation.
- AccuBASS processing Recovers bass frequencies lost at higher volumes.
- Signal bus switch Sum multiple input signals into a single channel output when connecting to premium factory systems with crossed-over speaker outputs for various speakers.
- Turn-on trigger mode switch Choose between GTO Signal Sense (DC offset) and audio sense to automatically power the line output converter or use remote 12V input for manual control.
- Dual variable stereo gain controls with clipping indicator Allows you to adjust main and bass output signals from -12dB to +12dB and indicates when levels are optimal.
- Selectable on-board load resistors Including 20 ohms, 60 ohms, and 20k ohms impedance for newer factory-amplified vehicles.
- Selectable ground isolation Choose from common, ISO (default), or 200 ohms.
- Dash remote level control Adjust the bass output level for your subwoofer with the included ACR-1 attenuator knob.

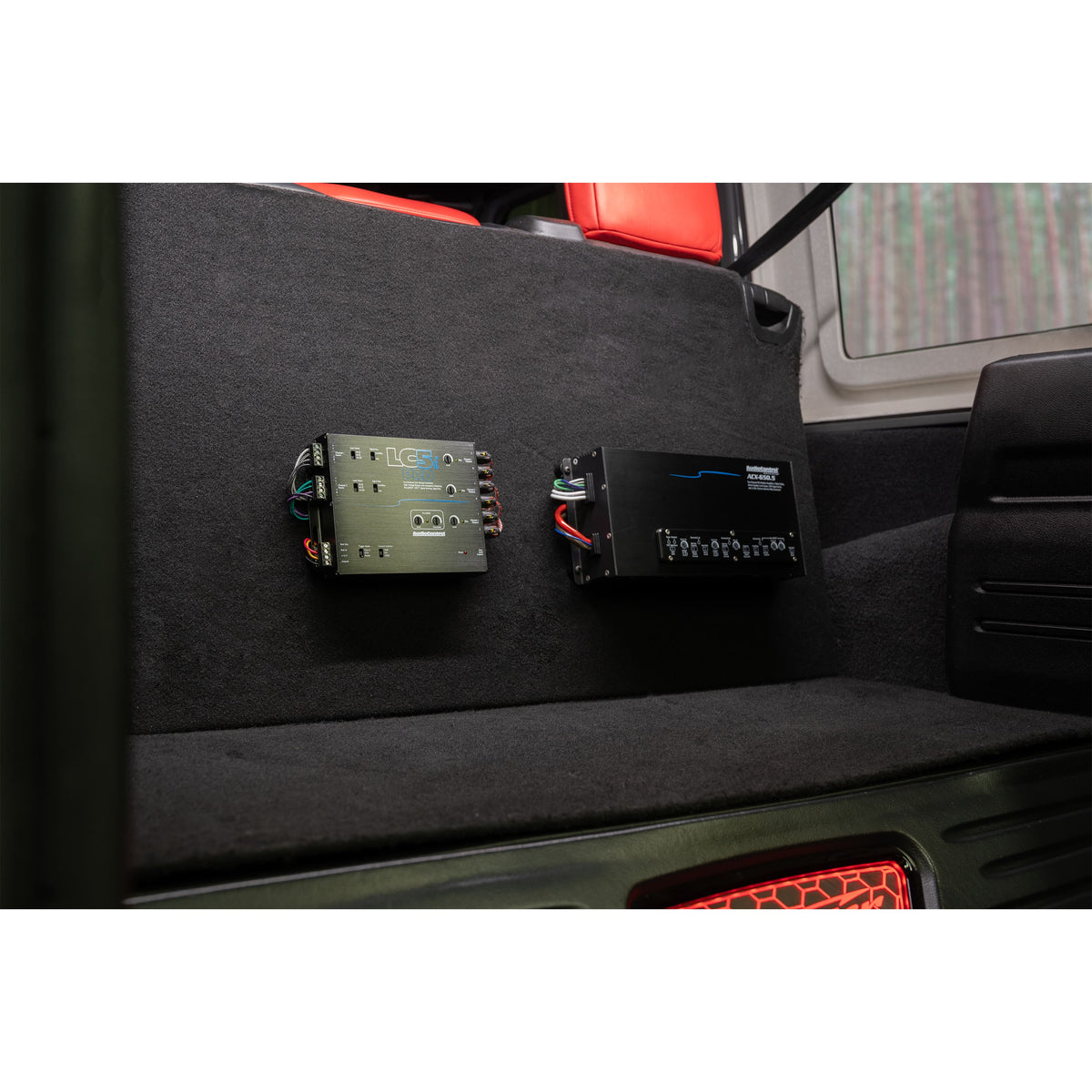

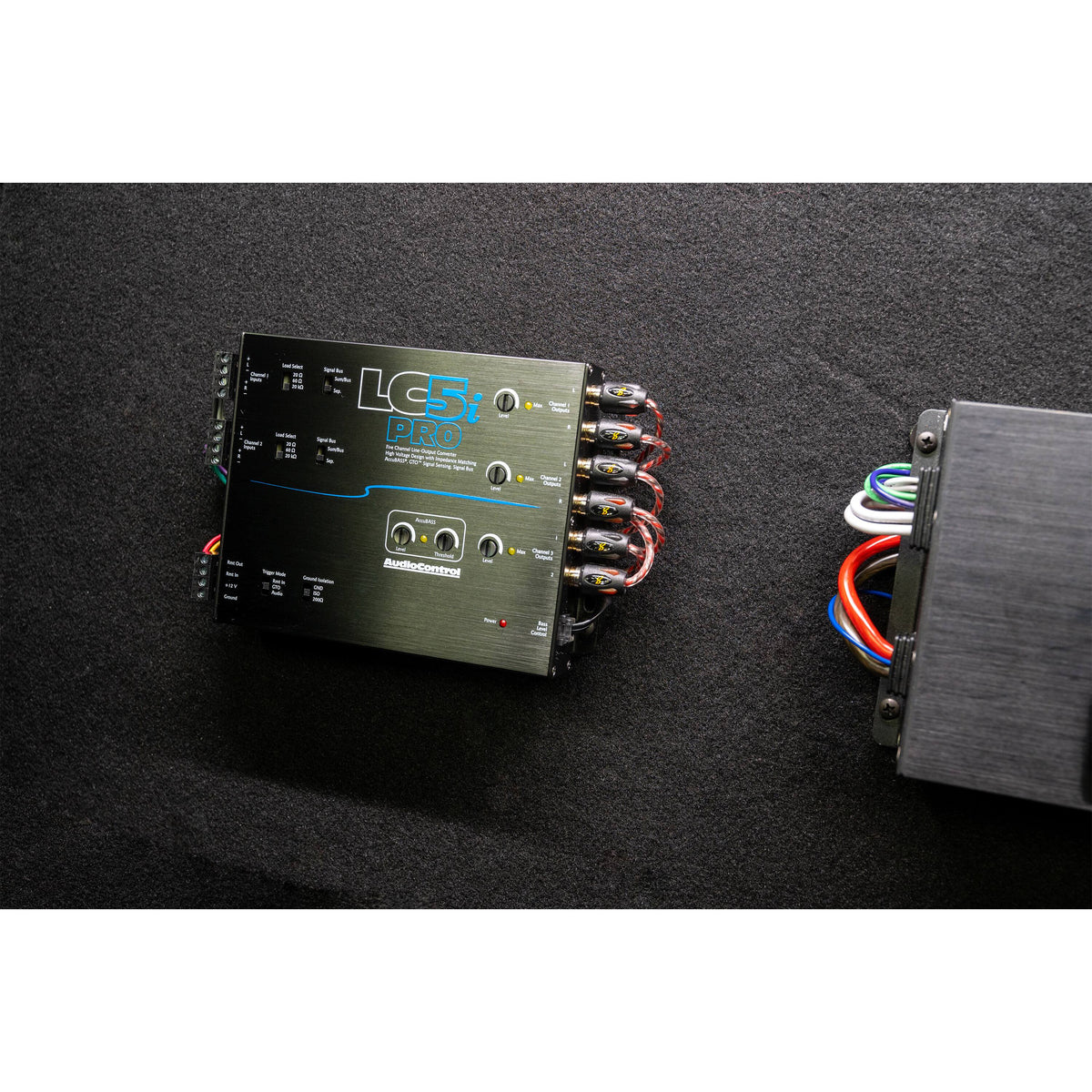

- Slim chassis with integrated mounting brackets Enables quick and easy installation.
Customers also viewed
From

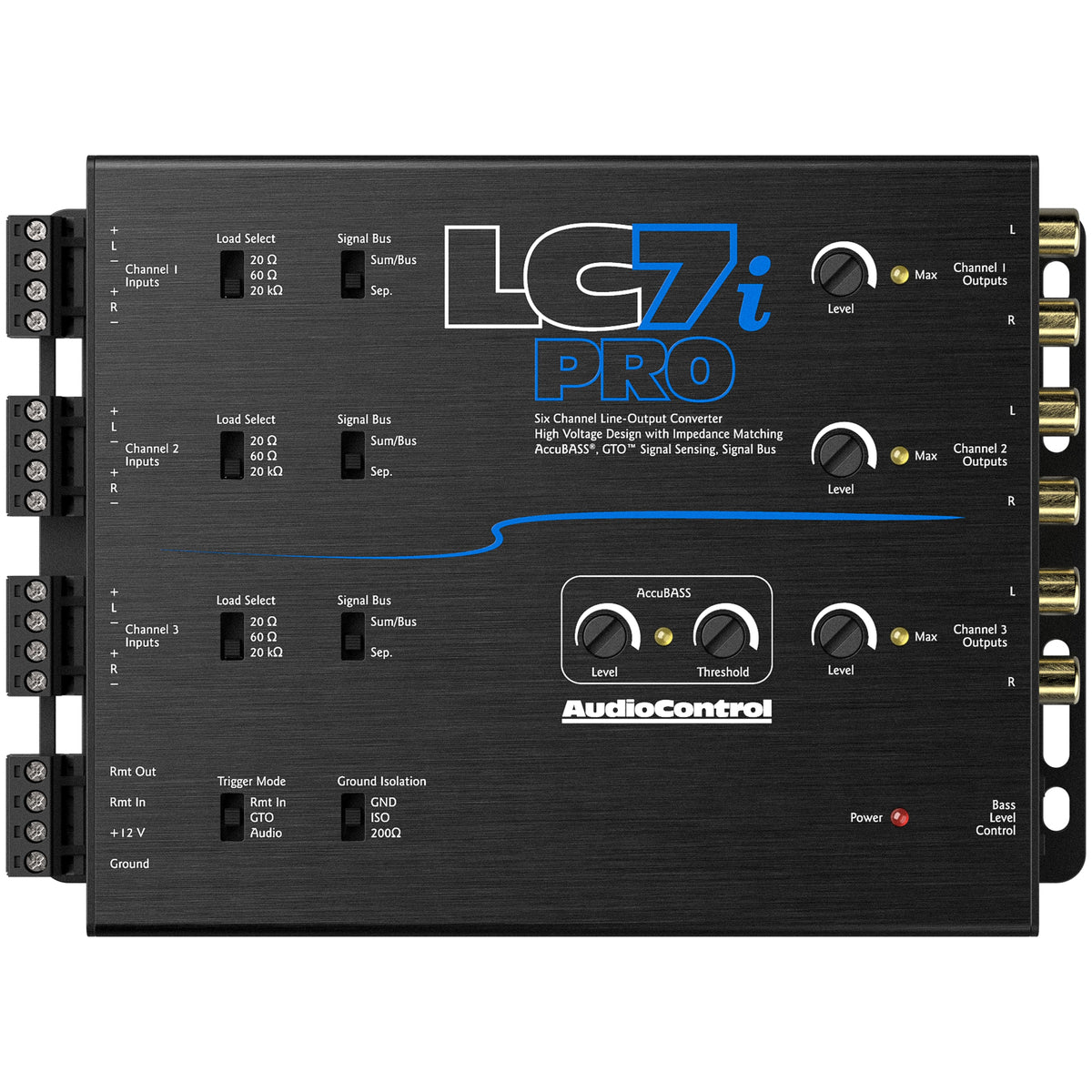

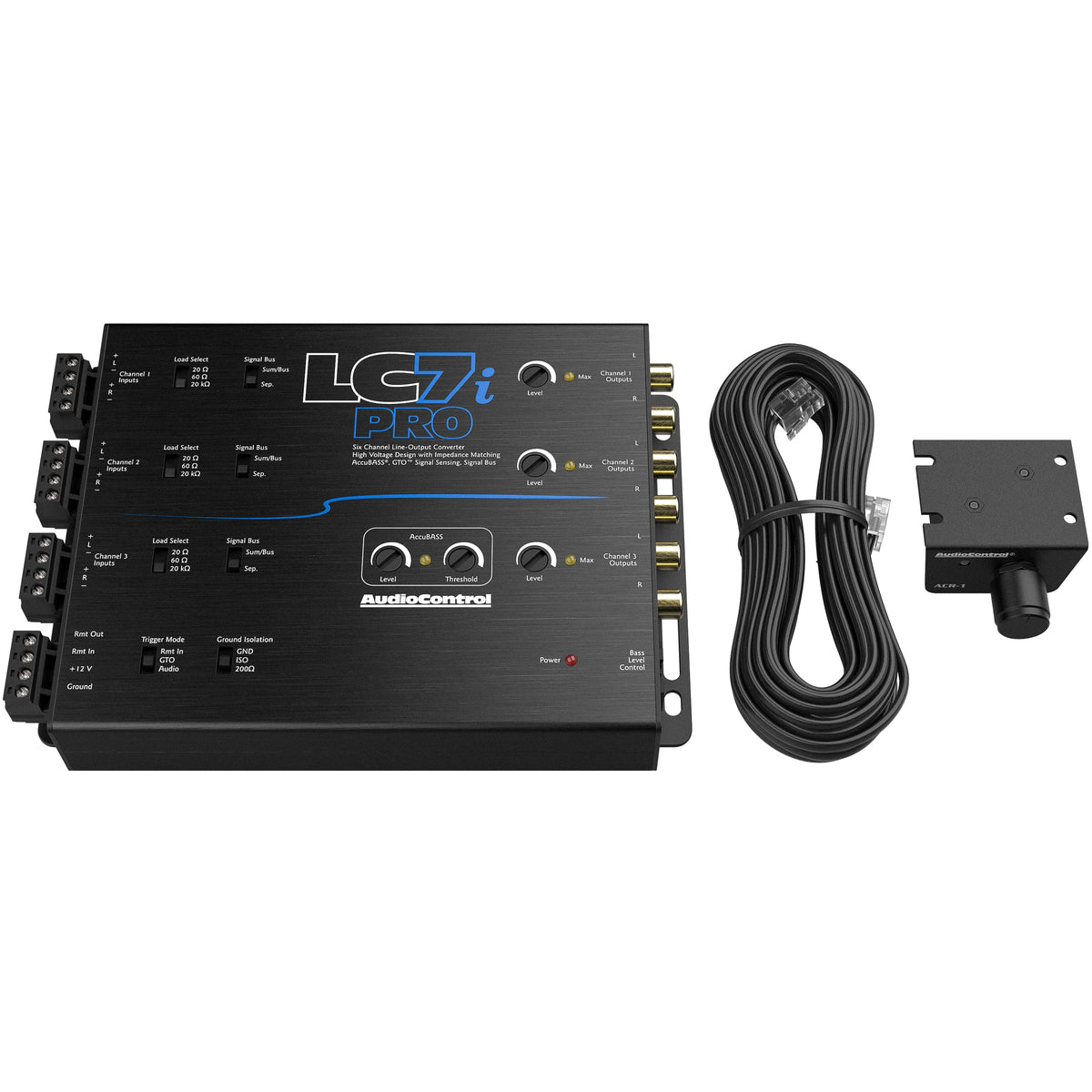

AudioControl - 6-Channel Active Line Output Converter with AccuBASS and Subwoofer Control - Black
Choose your option
From

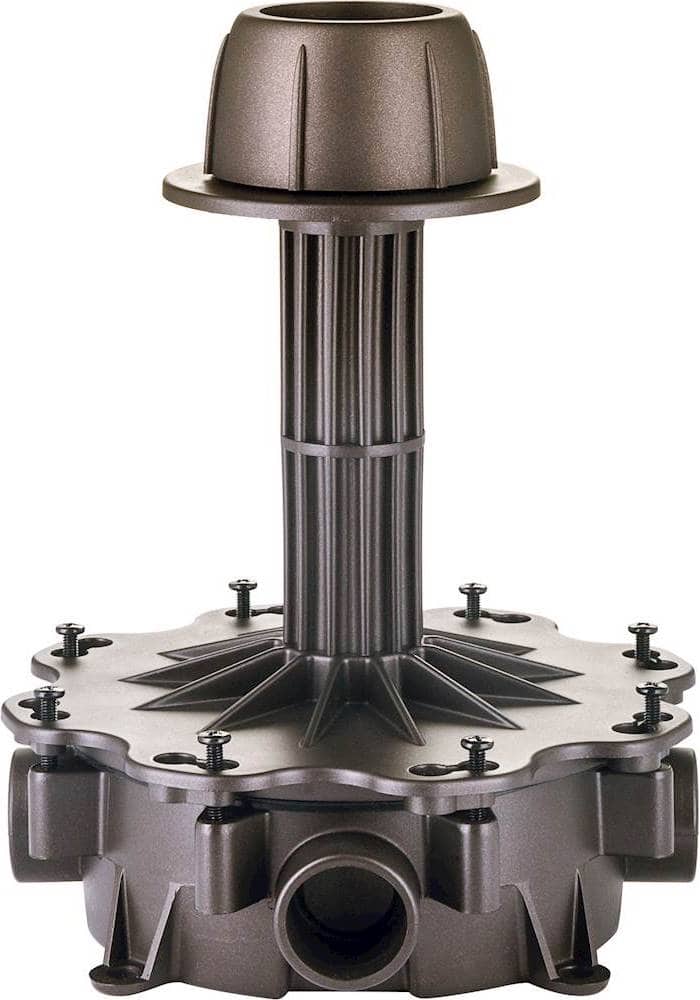

MartinLogan - Burial Conduit Box - Dark Bronze
Choose your option
Customers also bought
From
AudioControl - The Epicenter Concert Series Digital Bass Restoration Processor - Black
Choose your option
From
Metra - Speaker Pods for Select Jeep Wrangler Vehicles - Black
Choose your option
From

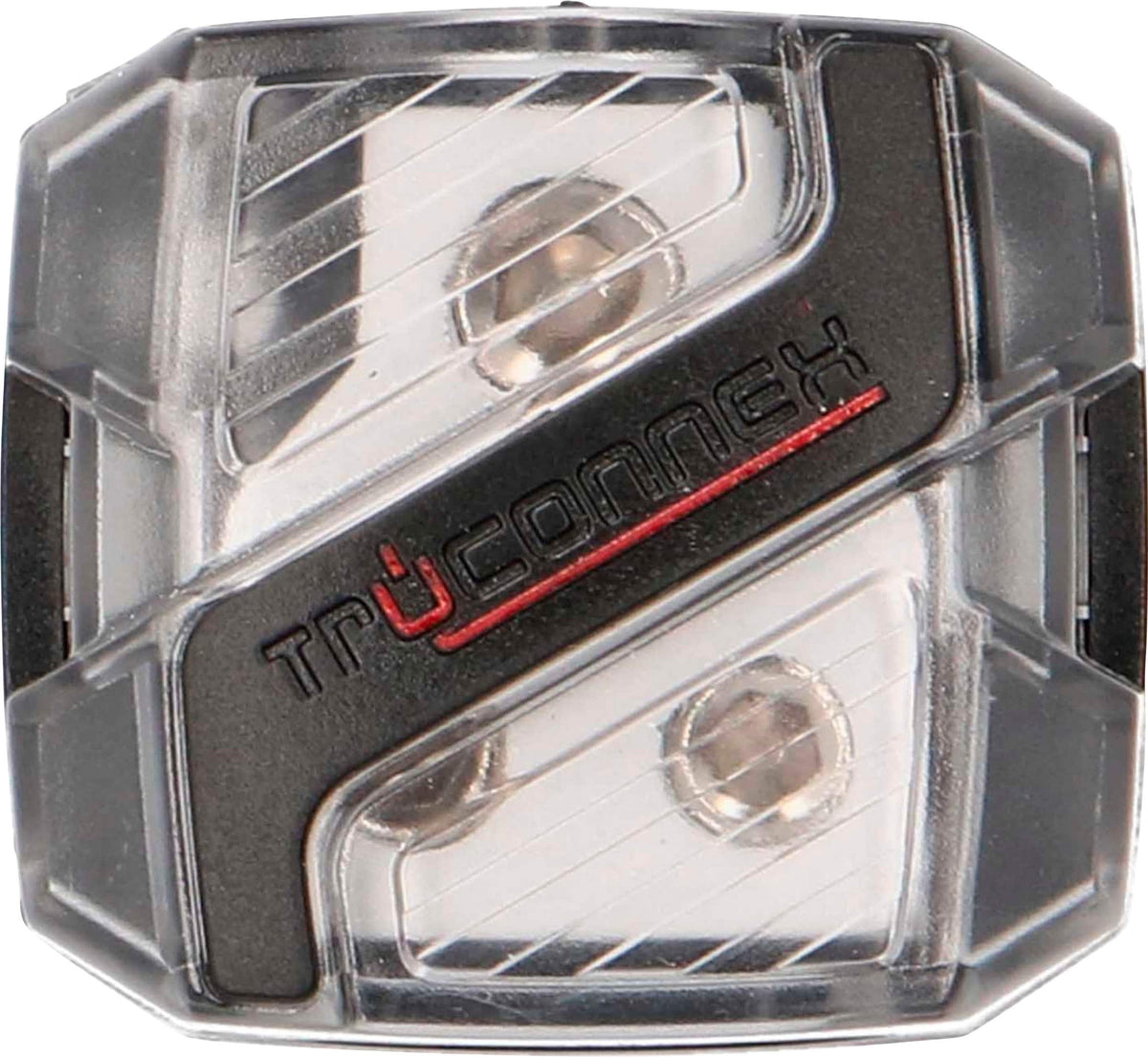

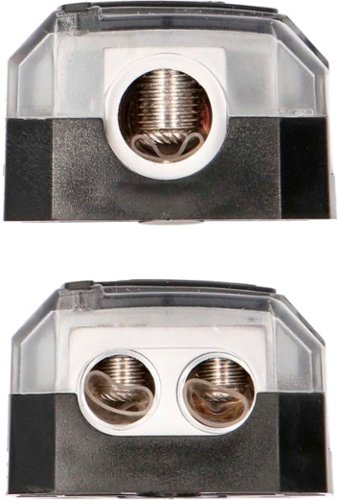

Metra - Power/Ground Distribution Block - Black
