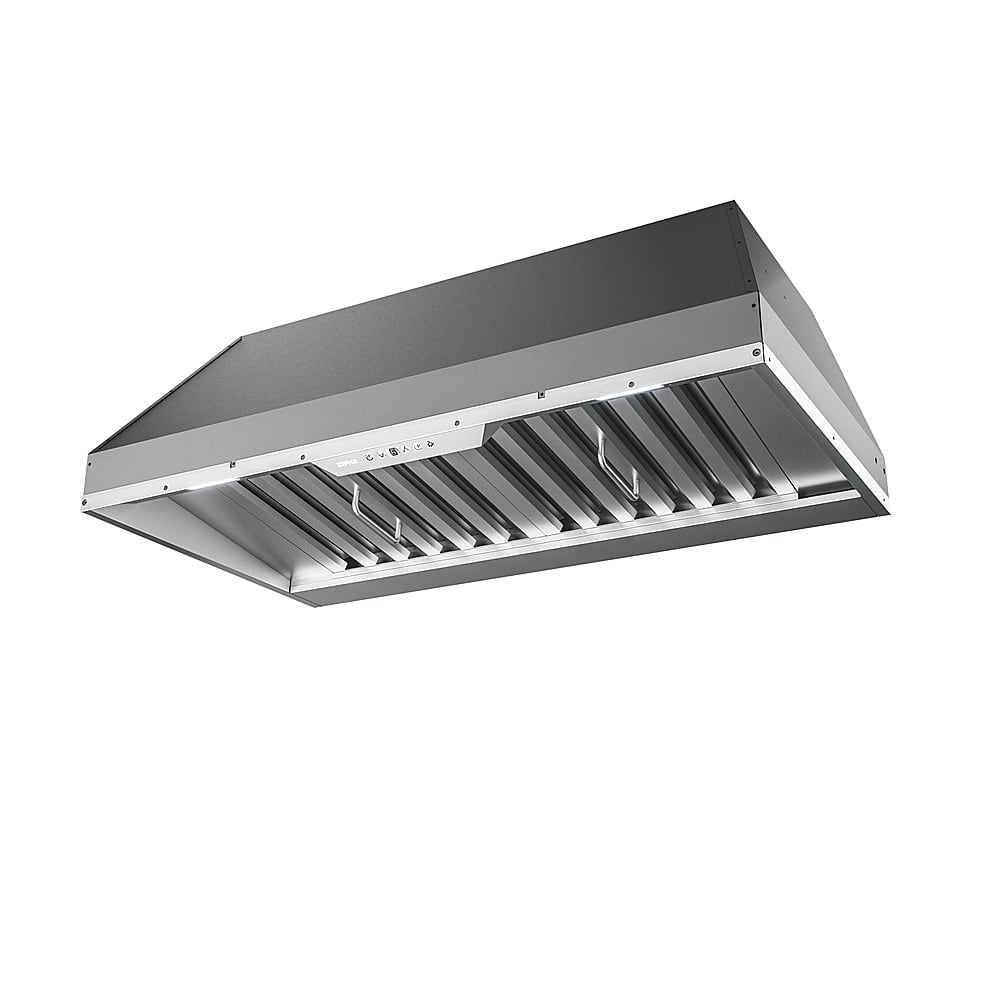

Monsoon I has taken the one-piece liner to the next level. Including dual-level LumiLight LEDs and an ADA-compliant wireless remote you can easily control Monsoon I without ever reaching over a dangerous cooking surface. Equipped with 6-speed electronic controls, pro baffle filters, our exclusive ACT technology and either a powerful 600-CFM blower (30 and 36 models) or 1,200-CFM blower (42 and 48 models).
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Most orders ship within a few business days — you will get tracking by email as soon as it is on the way. Questions about a delivery or a return? Reach our US-based team at info@improvemintfinancial.com or (855) 447-4921.
Highlights
- Minimum Installation Height Above Cooktop : 24" , see in specifications
- Standardized Width : 36" , see in specifications
- Range Hood Type : Insert , see in specifications
- Vent Style : External , see in specifications
- Maximum Installation Height Above Cooktop : 36" , see in specifications
- Vent Type : Ducted , see in specifications
- Number of Fan Speeds : 6 , see in specifications
- Control Type : Button , see in specifications
Specifications
General
| Brand | Zephyr |
|---|---|
| Model Number | AK9234BS |
| Product Name | Monsoon I 36 in. 600 CFM Insert Mount Range Hood with LED Light |
| Product Width | 34 3/8 inches |
| Product Depth | 19 1/4 inches |
| Product Height | 12 inches |
| Product Weight | 43.5 pounds |
| Warranty - Parts | 3 years |
| Warranty - Labor | 1 year |
All specifications (40)
Key specs
| Color | Stainless Steel |
|---|---|
| Vent Type | Ducted |
| Range Hood Type | Insert |
| Color Finish | Stainless steel |
| Removable Grease Filter | Yes |
| Integrated Light(s) | Yes |
| Temperature Sensor | No |
| Control Type | Button |
Other
| Minimum Installation Height Above Cooktop | 24 inches |
|---|---|
| Maximum Installation Height Above Cooktop | 36 inches |
| Standardized Width | 36 inches |
| Duct Shape | Round |
| Cut-Out Width | 34 5/8 inches |
| Cut-Out Depth | 22 5/8 inches |
| Exhaust Vent Location | Top/Rear |
| Vent Style | External |
| Number of Fan Speeds | 6 |
| Delay Shut-Off | Yes |
| Auto Fan Shut-Off | Yes |
| Remote Control | No |
| Number of Lights | 2 |
| Number of Light Levels | 2 |
| Bulb Type Required | LED |
| Bulb(s) Included | Yes |
| Maximum Bulb Wattage | 6 watts |
| Maximum Air Flow Capacity | 1200 cubic feet per minute |
| Minimum Air Flow Capacity | 450 cubic feet per minute |
| Maximum Operating Sound Level | 6 sones |
| Minimum Operating Sound Level | 1 sones |
| Amperage | 5 amperes |
| Voltage | 120 volts |
Features
- Airflow Control Technology (ACT) Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
- LumiLight LED Lighting LumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours. The tri-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- CleanAir Feature The CleanAir Function powers the hood on every four hours for 10 minutes to refresh the cooking area.
- Electronic Touch Controls Electronic touch controls adjust the range hood blower and LED light levels, and enable the auto delay-off function.

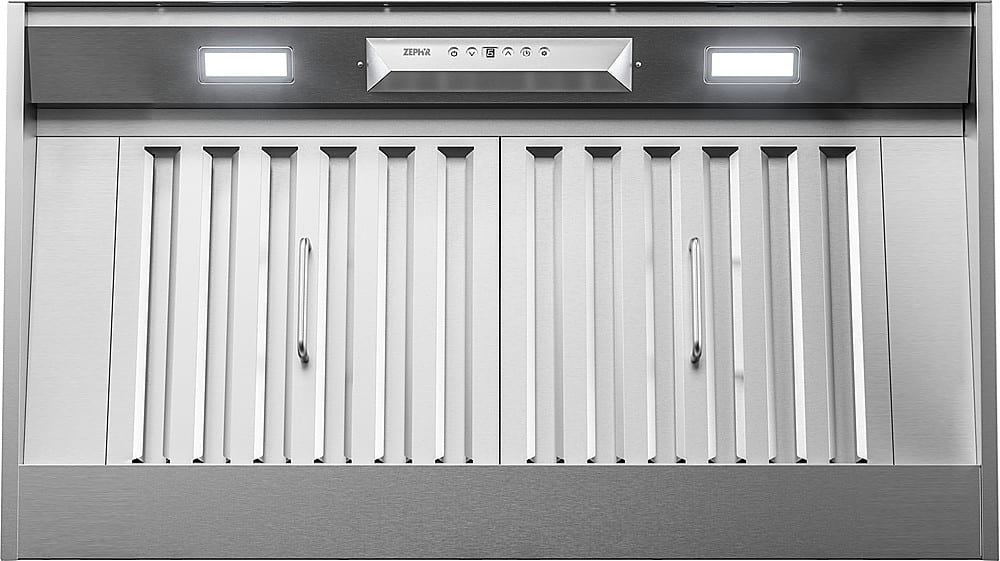

- Professional Baffle Filters High-airflow baffle filters that are dishwasher safe and ensure a lifetime of exceptional performance. (part # 50210039)
- Vertical or Horizontal Ducting This hood has the ability to vent either out the top or out the back.
- Dual-Level Lighting
