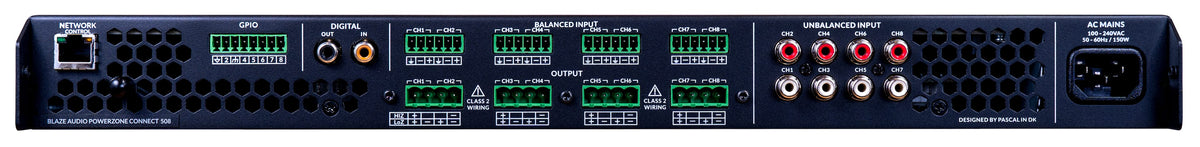

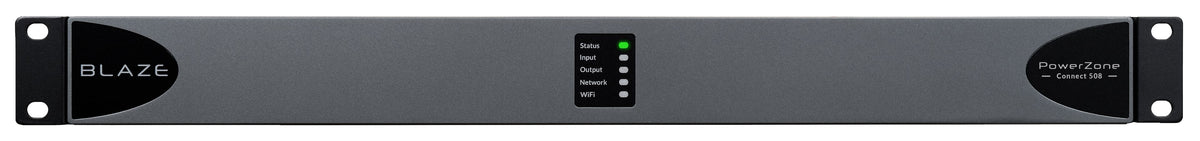

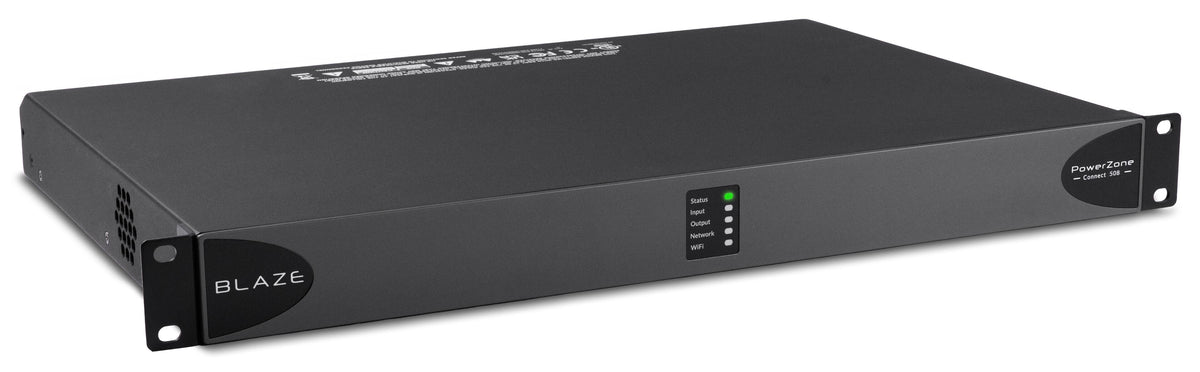

Sonance - Blaze PowerZone™ Connect 508 – 500 W DSP-enabled Class-D amplifier with 8 channels (Each) - Black
Available in stock
The PowerZone™ Connect 1U series is a line of DSP-enabled Class-D amplifiers designed to simplify the lives of system installers, providing unmatched reliability, efficiency, and exceptional system configuration. Their compact form factor makes them an ideal choice for audio/voice installation projects with limited space constraints, demanding high-output performance of 500 W. The 1U family powers both conventional low-impedance (4 Ω to 16 Ω) loudspeakers and constant voltage (70 V/100 V) transformer-coupled loudspeakers, and features automatic power-sharing technology for proportional distribution in both Lo-Z and Hi-Z modes.
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Most orders ship within a few business days — you will get tracking by email as soon as it is on the way. Questions about a delivery or a return? Reach our US-based team at info@improvemintfinancial.com or (855) 447-4921.
Highlights
- Number of Channels : 8 , see in specifications
- Total Power Handling : 500 W , see in specifications
- Minimum Frequency Response : 20Hz , see in specifications
- Maximum Frequency Response : 20 kHz , see in specifications
- Amplifier Type : Integrated amplifiers , see in specifications
- Amplifier Class : D , see in specifications
- Network Connector(s) : No network connectors , see in specifications
- Impedance : 8 ohms , see in specifications
Specifications
General
| Brand | Sonance |
|---|---|
| Model Number | UBX-888-024 |
| Product Name | Blaze PowerZone™ Connect 508 – 500 W DSP-enabled Class-D amplifier with 8 channels (Each) |
| Product Width | 12.6 inches |
| Product Depth | 17.3 inches |
| Product Height | 1.7 inches |
| Product Weight | 7.7 pounds |
| Warranty - Parts | 5 years |
| Warranty - Labor | 5 Years |
All specifications (32)
Key specs
| Amplifier Class | D |
|---|---|
| Audio Only Inputs | Unbalanced RCA |
| Audio/Video Inputs | No audio/video inputs |
| Continuous Watts x Channel @ Ohms | 60 Watt x 8 x 8 Ohm |
| Color | Black |
| Maximum Watts x Channel @ Ohms | 120W @ 4 ohms bridged (4 channel) |
| Total Power Handling | 500 watts |
Other
| Number of Channels | 8 |
|---|---|
| Minimum Frequency Response | 20 hertz |
| Impedance | 8 ohms |
| Maximum Frequency Response | 20 kilohertz |
| Amplifier Type | Integrated amplifiers |
| Video Only Inputs | No video only inputs |
| Network Connector(s) | No network connectors |
| Antenna Input | No antenna inputs |
| Speaker-Level Inputs | No |
| Line-Level Inputs | Yes |
| Speaker Connection Type | Banana Jack/Screw Terminals |
| Audio/Video Outputs | No audio/video outputs |
| Video Only Outputs | No video only outputs |
| App Compatible | Yes |
| Fan Cooled | Yes |
| Bridgeable | Yes |
Features
- 1RU Form Factor Compact 1RU rack-mount design for easy integration into standard equipment racks.
- Full-Matrix DSP Configuration via PowerZone™ Control Configure and manage the full DSP matrix directly through the built-in PowerZone™ Control web application.
- Hybrid Power Distribution (Lo-Z & Hi-Z) Flexible power distribution supporting both low-impedance (Lo-Z) and high-impedance (Hi-Z) speaker configurations.
- Pascal UMAC™ Class-D Technology High-efficiency Class-D amplification powered by Pascal UMAC™ for superior audio performance.
- S/PDIF Input/Output Supports digital audio connectivity through S/PDIF inputs and outputs.
- Configurable GPIO Customizable GPIO ports for enhanced control and integration with external systems.
- Energy Efficiency & Compliance Compliant with ErP and Energy Star standards for environmentally friendly operation.
- UL Listed Audio Equipment Certified to meet UL safety standards for professional audio equipment.
- UREC™ Universal Power Supply with PFC Reliable power supply featuring Power Factor Correction (PFC) for global compatibility.
- 5-Year Warranty Comes with a comprehensive 5-year warranty for long-term peace of mind.
