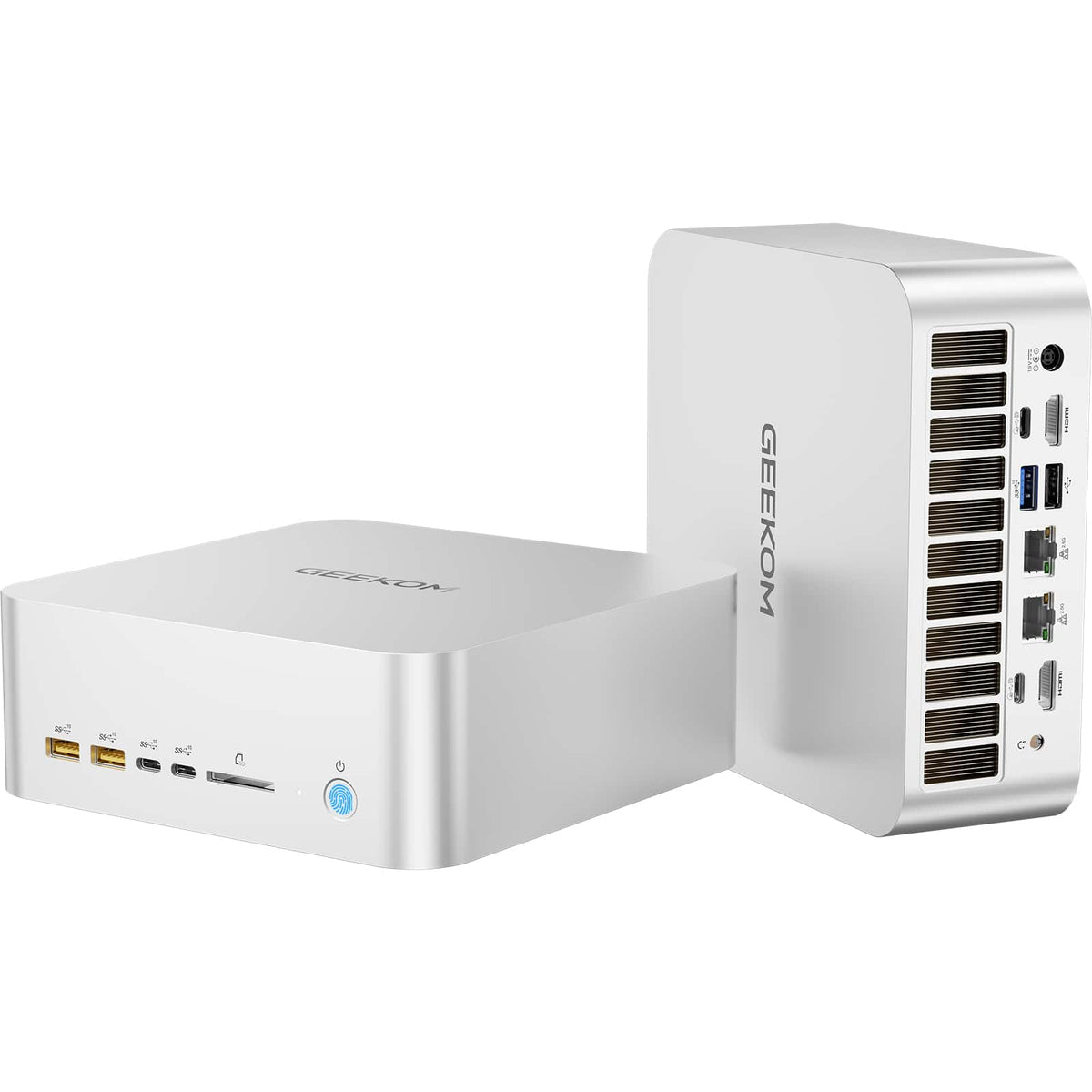

GEEKOM - A9 Mega mini pc AMD Ryzen™ AI Max+ 388 processor, Radeon™ 8060S Graphics,64GB Quad-Channel RAM & Up to 2TB SSD - Silver
Available in stock
The GEEKOM A9 Mega is a desktop-class AI workstation in a 1.9kg mini PC. The AMD Ryzen AI Max+ 388 processor combines 8 Zen 5 cores and 16 threads at up to 5.0GHz with a 50 TOPS NPU and the full 40-compute-unit Radeon 8060S GPU, giving it the graphics throughput of a discrete card without one. 64GB of quad-channel LPDDR5X-8000 memory feeds the GPU and NPU with high bandwidth for running large local AI models, and a 2TB PCIe 4.0 NVMe SSD provides fast storage with a second M.2 slot available for expansion. Note that the memory is soldered and cannot be upgraded after purchase. Connectivity is comprehensive: two USB4 Type-C ports at 40Gbps with DisplayPort 2.1, two USB 3.2 Gen 2 Type-C, three USB 3.2 Gen 2 Type-A, one USB 2.0 Type-A, dual HDMI 2.1 supporting 8K output, dual 2.5G Ethernet, an SD card reader and a 3.5mm audio jack. Wi-Fi 7 and Bluetooth 5.4 handle wireless. A vapor chamber and dual-fan cooling system sustain performance under load. Windows 11 Pro is preinstalled with a 3-year warranty.
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Most orders ship within a few business days. Track your order any time in your account, and many orders also get tracking by email. Questions about a delivery or a return? Reach our US-based team at info@improvemintfinancial.com or (855) 447-4921.
Highlights
- Color : Silver , see in specifications
- Motherboard Form Factor : Proprietary , see in specifications
- CPU Cooling System : Air , see in specifications
- Storage Type : SSD , see in specifications
- Solid State Drive Capacity : 2048 gigabytes , see in specifications
- CPU Cache Memory Level : L1 , see in specifications
- System Memory (RAM) : 64 gigabytes , see in specifications
- System Memory RAM Speed : 7500 megahertz , see in specifications
Specifications
General
| Brand | GEEKOM |
|---|---|
| Model Number | GM245A9MEGAAIMAX+388-642-US |
| Product Name | GEEKOM A9 Mega mini pc AMD Ryzen™ AI Max+ 388 processor, Radeon™ 8060S Graphics,64GB Quad-Channel RAM & Up to 2TB SSD |
| Year of Release | 2025 |
| Product Width | 6.73 inches |
| Product Depth | 2.79 inches |
| Product Height | 6.73 inches |
| Product Weight | 3.31 pounds |
| Warranty - Parts | 3 years |
| Warranty - Labor | 3 years |
All specifications (87)
Key specs
| Color | Silver |
|---|---|
| Motherboard Form Factor | Proprietary |
| CPU Cooling System | Air |
| Storage Type | SSD |
| Solid State Drive Capacity | 2048 gigabytes |
| CPU Cache Memory Level | L1 |
| System Memory (RAM) | 64 gigabytes |
| System Memory RAM Speed | 7500 megahertz |
| Solid State Drive Interface | NVMe |
| Processor Brand | AMD |
| Processor Model | AMD Ryzen AI Max+ 300 Series |
| Total Storage Capacity | 2048 gigabytes |
| Type of Memory (RAM) | LPDDR5X |
Other
| Processor Model Number | AI Max+ 388 |
|---|---|
| Processor Model Year of Release | 2025 |
| CPU Base Clock Frequency | 3.6 gigahertz |
| CPU Boost Clock Frequency | 5 gigahertz |
| Number of CPU Cores | 8-core |
| Number of CPU Threads | 16 |
| Unlocked Processor | No |
| L1 Cache | 640 megabytes |
| L2 Cache | 8 megabytes |
| L3 Cache | 32 megabytes |
| Neural Processing Unit (NPU) | Yes |
| Number Of Memory Slots | 0 |
| Number of Memory Sticks Included | 0 |
| Graphics Type | Integrated |
| GPU Brand | AMD Radeon |
| Graphics | AMD Radeon 8060S |
| Unlocked GPU | No |
| GPU Boost Clock Frequency | 2.9 gigahertz |
| GPU Video Memory (RAM) | 32 gigabytes |
| GPU Video Memory Type (RAM) | LPDDR5X |
| Number of GPU Cores | 40 |
| Operating System | Windows 11 Pro |
| Operating System Architecture | 64-bit |
| Display Connector(s) | 2 x HDMI 2.1 |
| Number of HDMI Outputs (Total) | 2 |
| Number of DisplayPort Outputs (Total) | 0 |
| Number of Thunderbolt Ports (Total) | 0 |
| Number of VGA Ports | 0 |
| Number Of DVI Ports | 0 |
| USB Ports | 3 x USB-A 3.2 |
| Number of USB Ports (Total) | 8 |
| Number of USB-A Charging Ports | 4 |
| Number of USB-C Charging Ports | 4 |
| Number Of PS/2 Ports | 0 |
| Microphone Input | Yes |
| Wireless Connectivity | Wi-Fi |
| Wireless Standard | BE |
| Wireless Networking Standard | Wi-Fi 7 |
| Ethernet Card | 10/100/1000/2500 |
| Number Of Ethernet Ports | 2 |
| Network Connectivity | None |
| Number of CPU Cooling Fans | 2 |
| Number of GPU Cooling Fans | 0 |
| Power Supply Maximum Wattage | 330 watts |
| Number of M.2 Slots | 2 |
| Number Of Internal 2.5" Bays | 0 |
| Number Of Internal 3.5" Bays | 0 |
| Number Of Internal 5.25" Bays | 0 |
| Number Of External 3.5" Expansion Bays | 0 |
| Number Of External 5.25" Expansion Bays | 0 |
| Number Of PCI-E x1 Slots | 0 |
| Number Of PCI-E x2 Slots | 0 |
| Number Of PCI-E x4 Slots | 2 |
| Number Of PCI-E x8 Slots | 0 |
| Number Of PCI-E x16 Slots | 0 |
| Media Card Reader | Yes |
| Media Card Slot | Secure Digital |
| Customizable Case Lighting | No |
| Size | Mini |
| ENERGY STAR Certified | No |
| EPEAT Registered | No |
| Optical Drive Type | None |
| Keyboard Included | No |
| Mouse Included | No |
Features

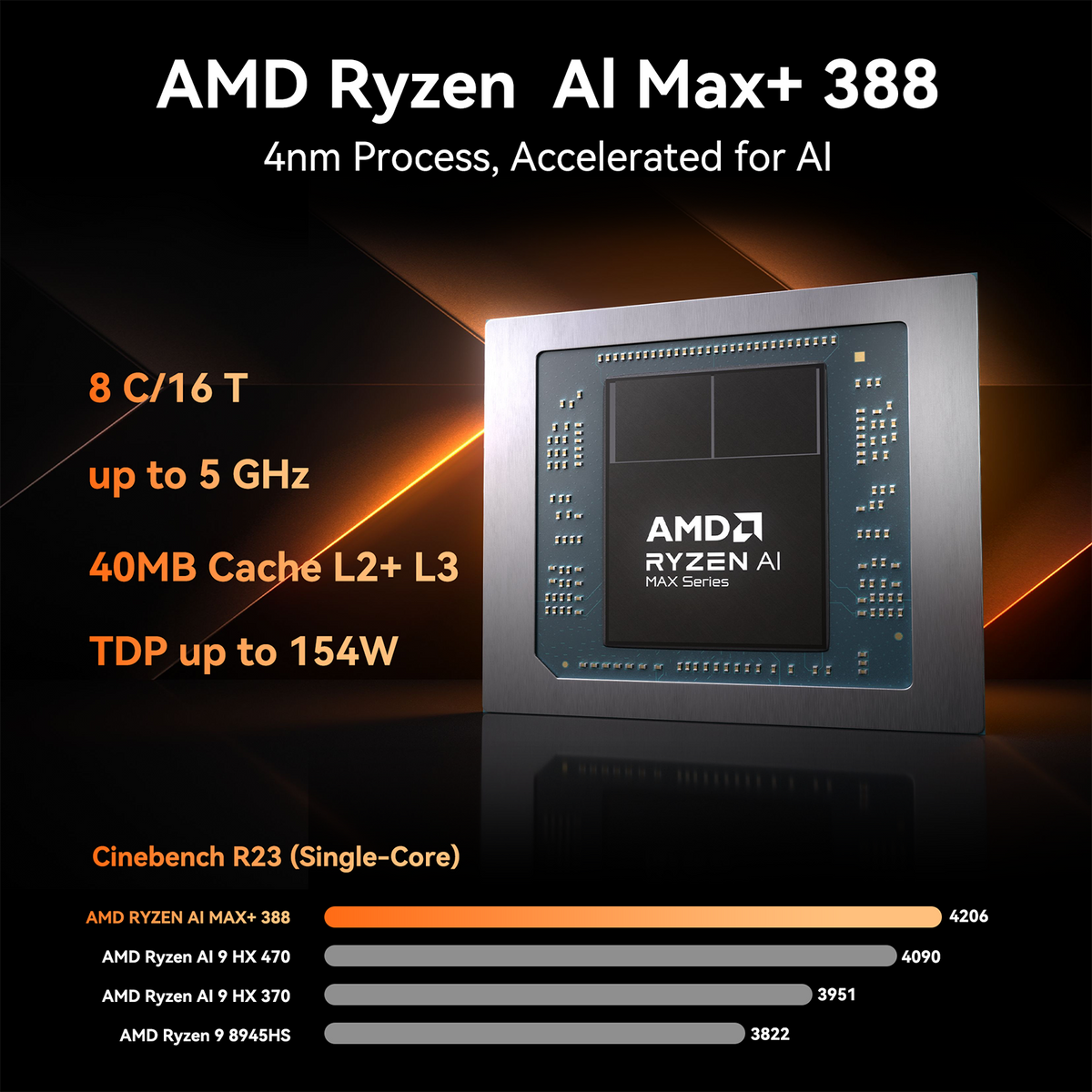

- AMD Ryzen™ AI Max+ 388 Processor | Next-Gen Local AI Workstation Built on 4nm Zen 5 architecture, 8 Cores 16 Threads with max boost up to 5.0GHz. Equipped with XDNA 2 NPU delivering up to 50 TOPS AI computing power. Run large language models, AI generation, real-time AI rendering locally without cloud reliance, ideal for developers, creators and AI enthusiasts.

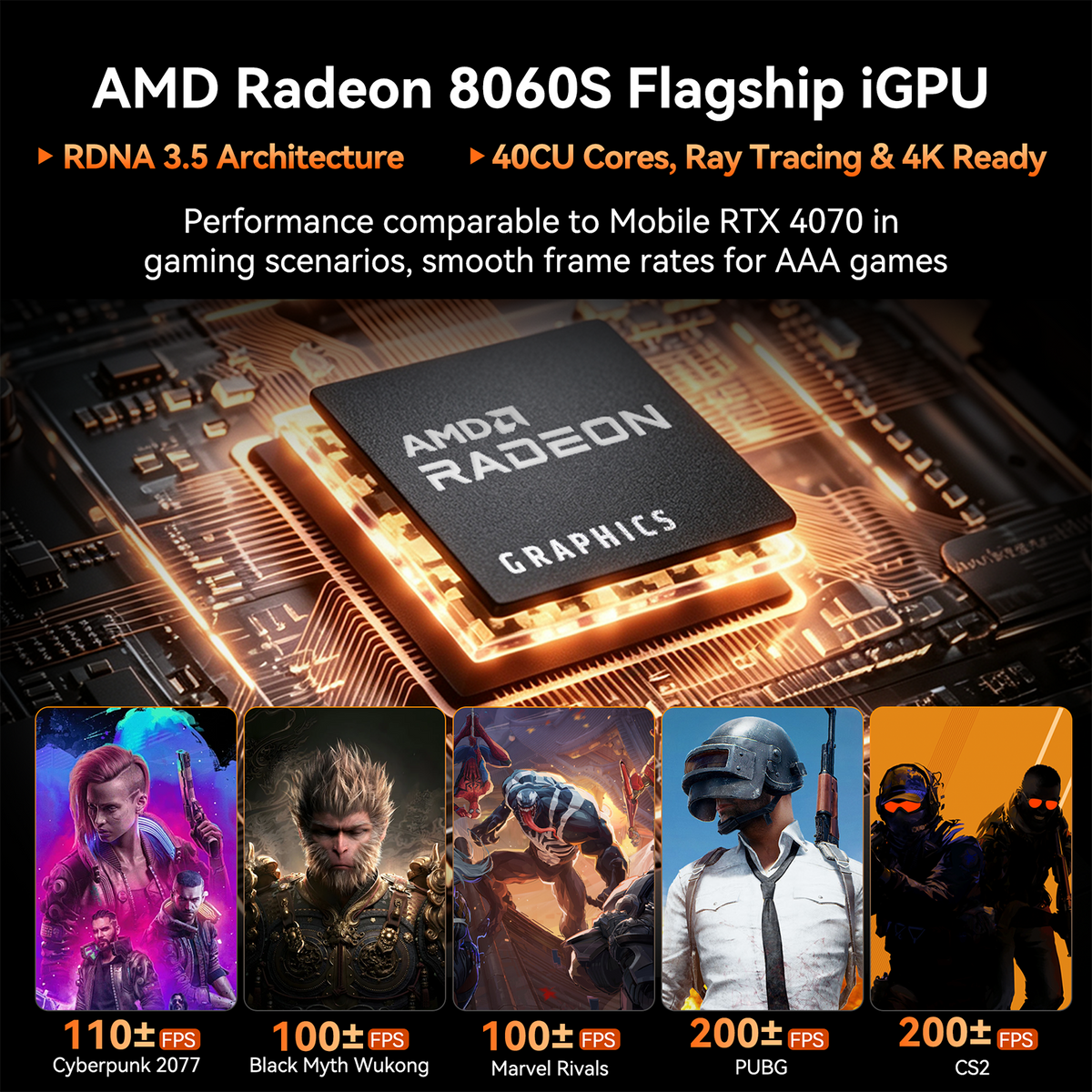

- Powerful Radeon™ 8060S Integrated Graphics (RDNA 3+) Features 40 Compute Units desktop-class iGPU, delivers outstanding graphics performance. Smoothly handles 4K/8K video editing, 3D modeling, VFX production and mainstream AAA games. Enables GPU-accelerated AI tasks to greatly boost creative workflow efficiency.

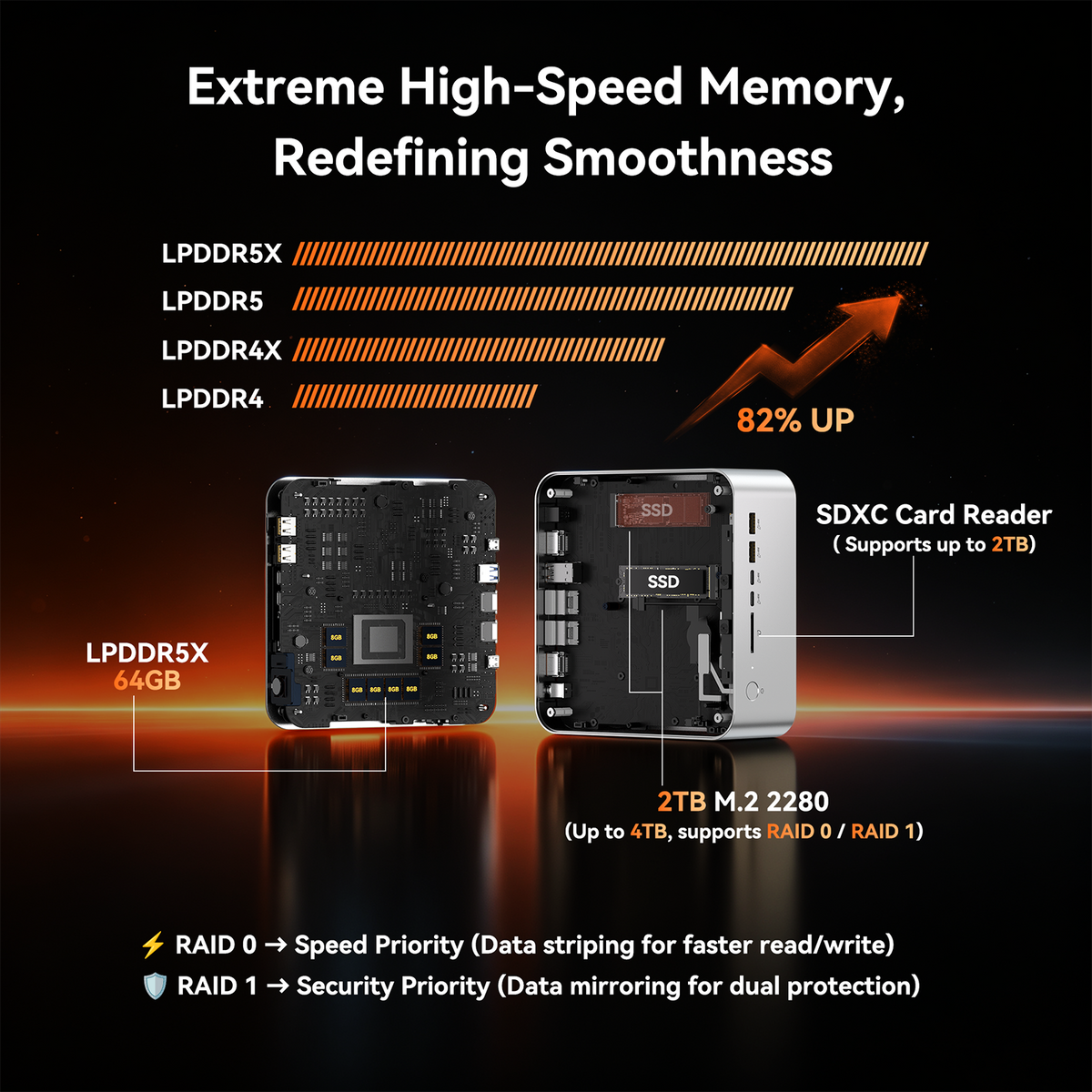

- 64GB Quad-Channel High-Bandwidth Memory + Expandable NVMe Storage Comes with 64GB Quad-Channel RAM for ultra-high memory bandwidth, eliminates bottlenecks for multi-tasking, virtual machines and memory-heavy AI workloads. Equipped with dual M.2 PCIe 4.0 slots, supports storage expansion up to 2TB (further upgradable) for large model libraries and media assets.
- Premium IceBlast Efficient Cooling & Robust Compact Chassis Adopts GEEKOM exclusive IceBlast thermal solution, sustains stable peak performance under long-lasting heavy loads without obvious throttling. Premium metal compact chassis supports VESA mounting to hide behind monitors, saving massive desk space for office and studio.

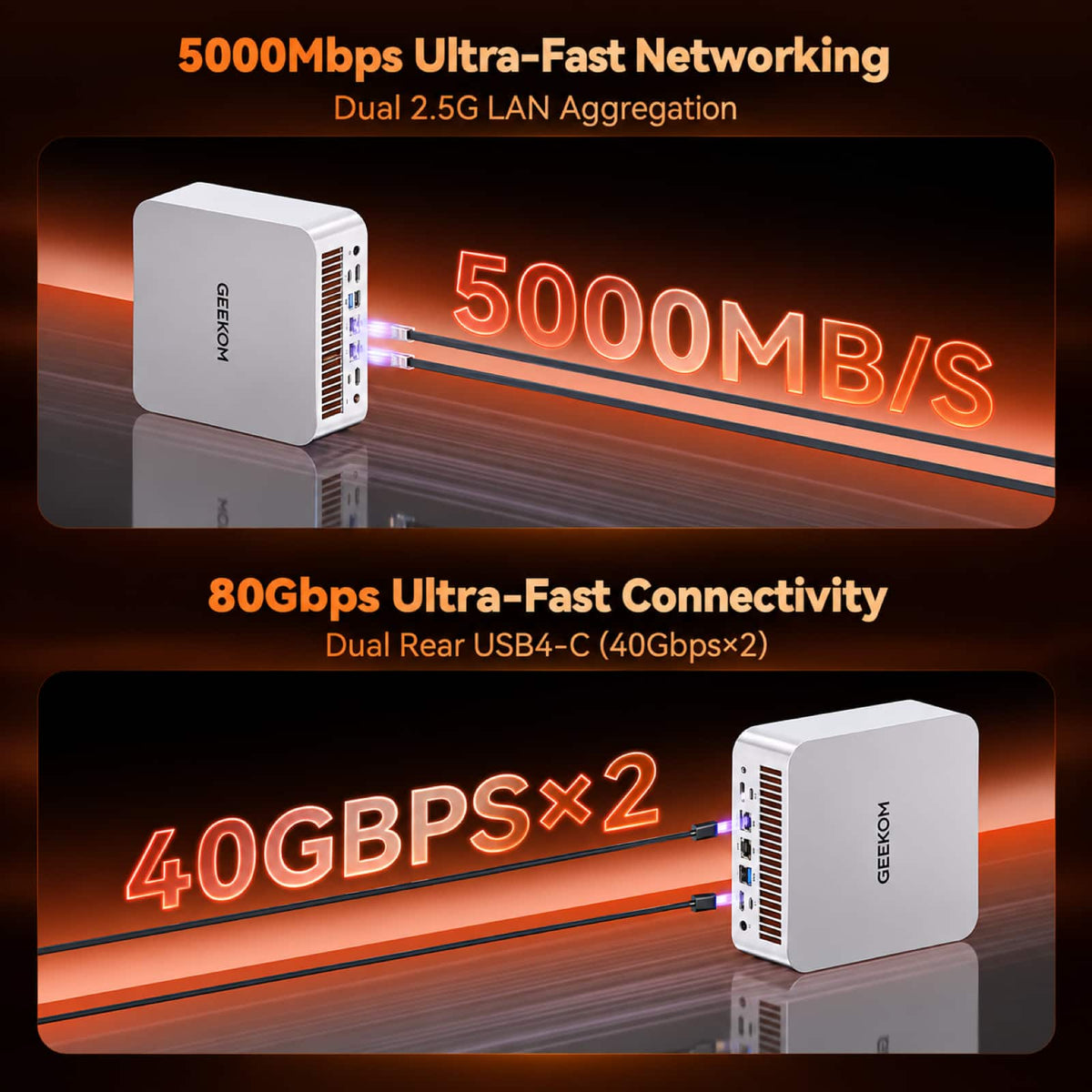

- Full-Featured Interfaces & Multi-Screen Ultra-HD Display Output Rich connectivity including dual USB4 40Gbps ports, HDMI 2.1, dual 2.5G Ethernet, SD 4.0 reader and multiple USB ports. Supports simultaneous multi-display ultra-high resolution output, perfect for multi-monitor trading workstations, content creation and digital signage.

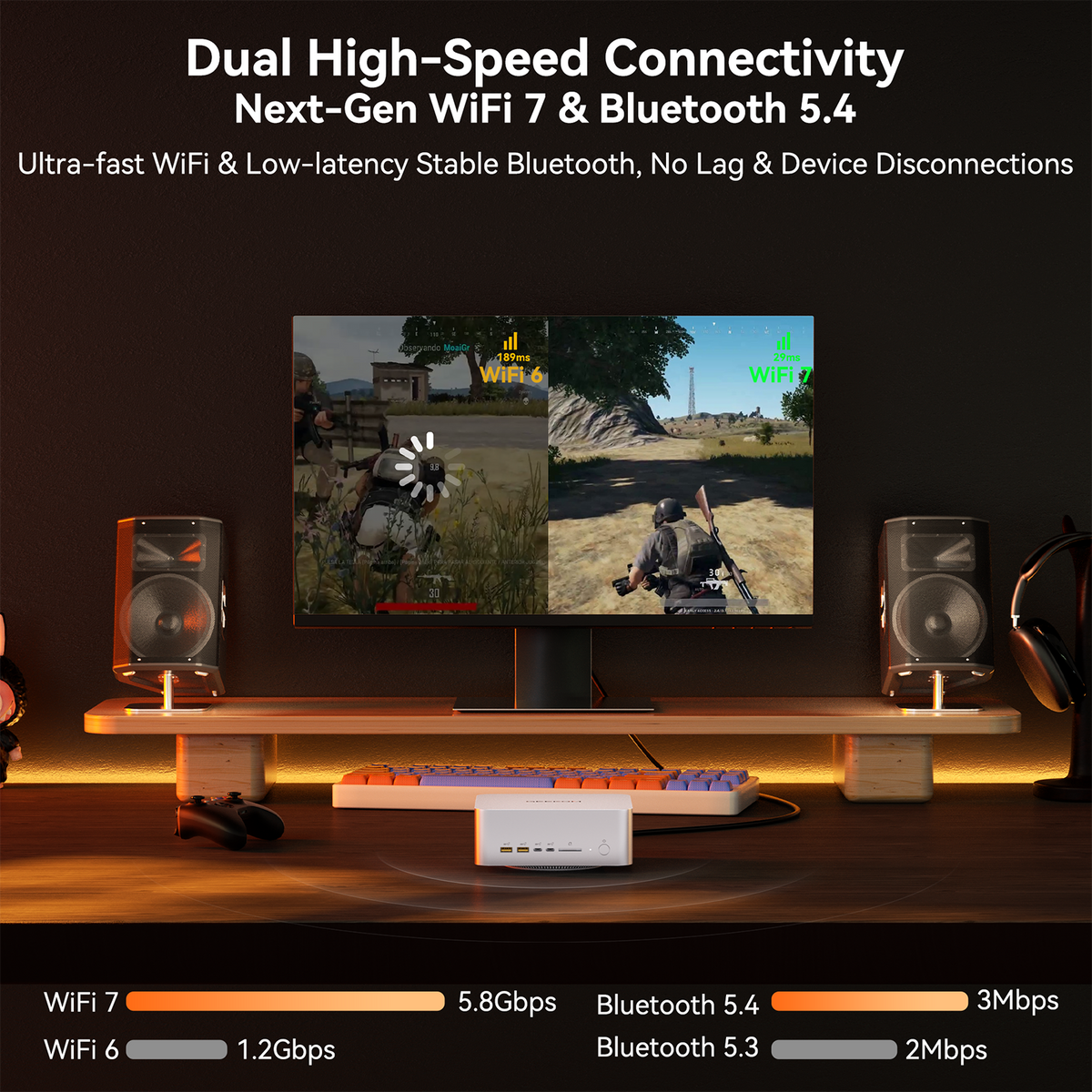

- Wi-Fi 7 + Bluetooth 5.4 & All-Round Professional Scenarios Latest Wi-Fi 7 and Bluetooth 5.4 deliver ultra-low latency and stable wireless connections. Versatile for local AI computing, video production, programming, professional office and light gaming. All GEEKOM mini PCs pass strict factory testing and come with official warranty support.
