Out of stock

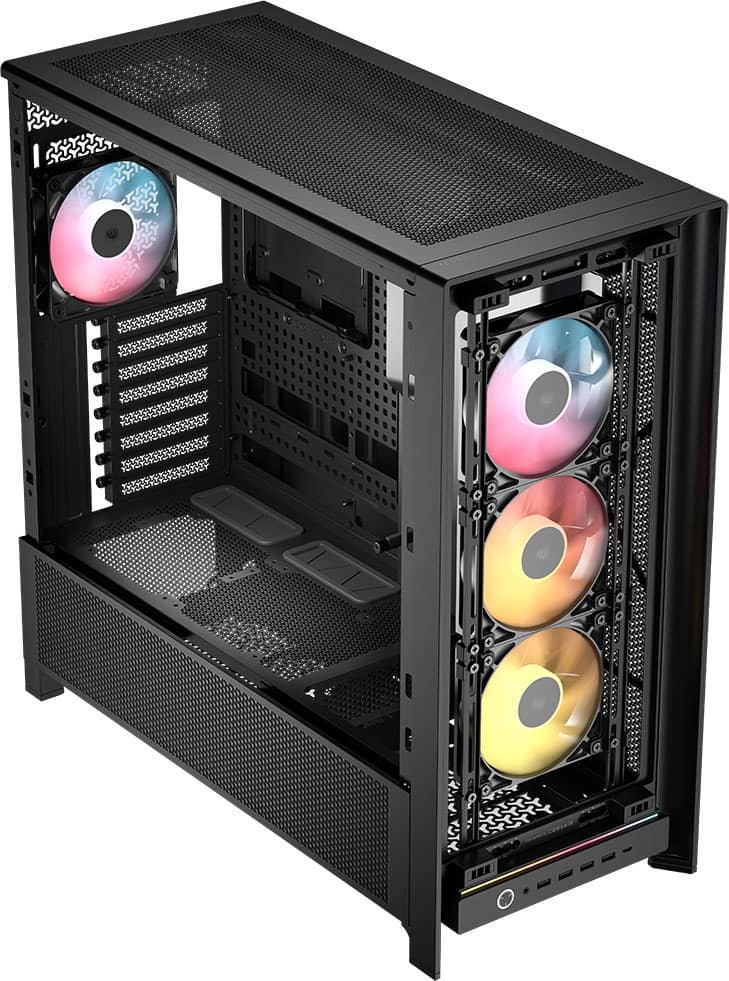

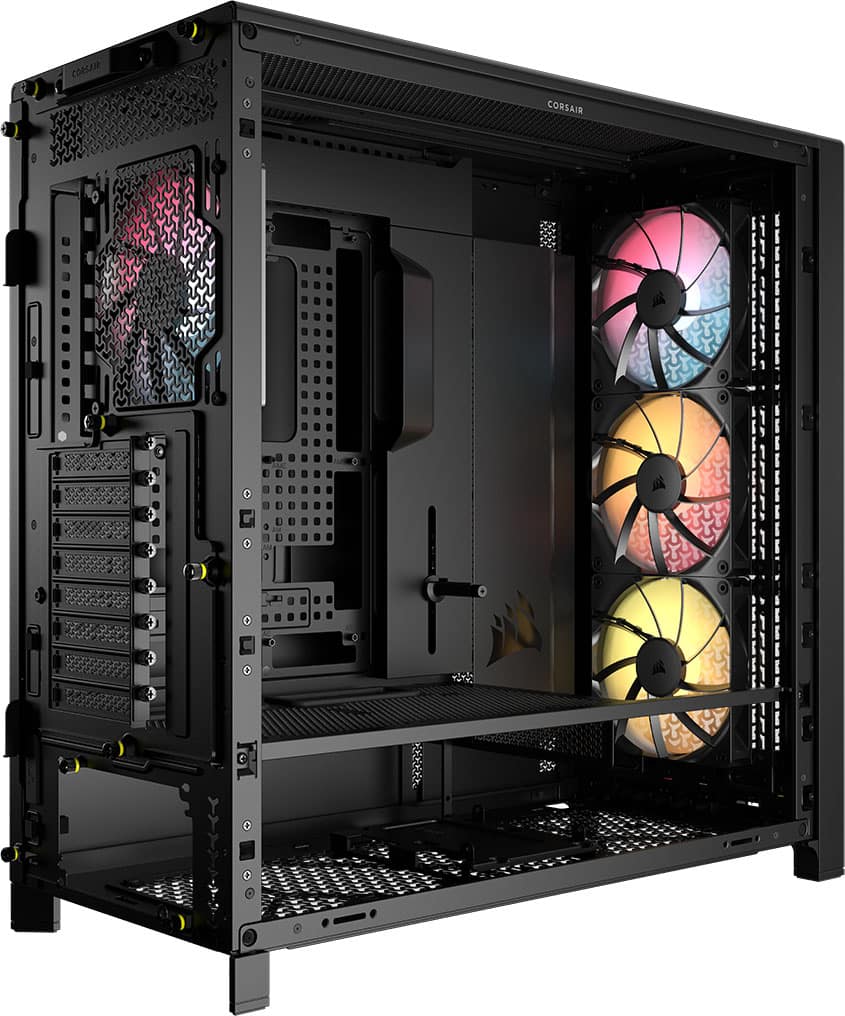

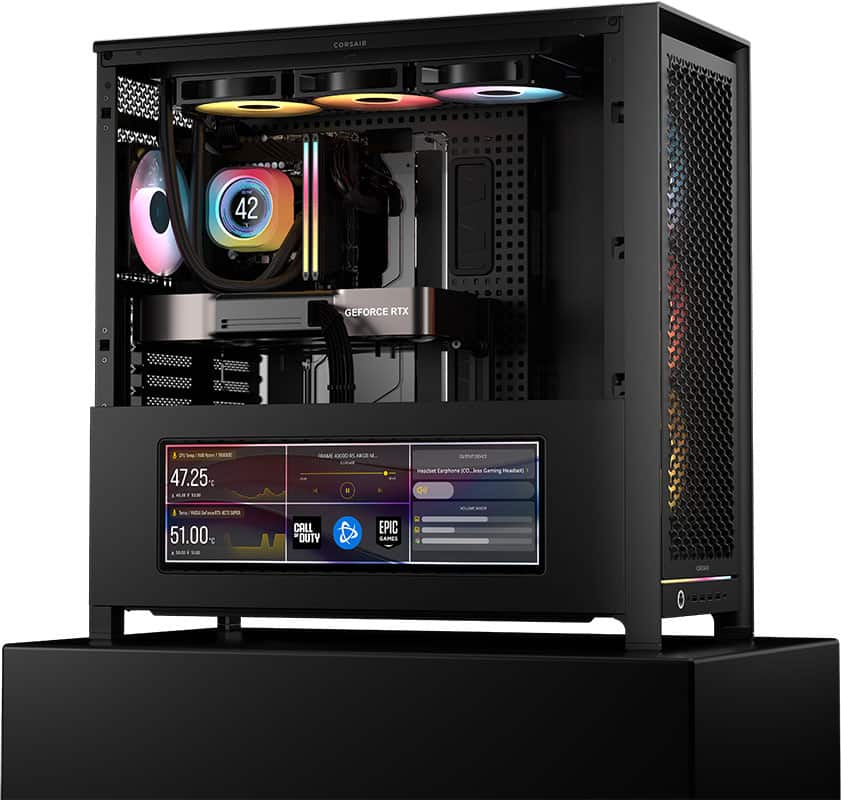

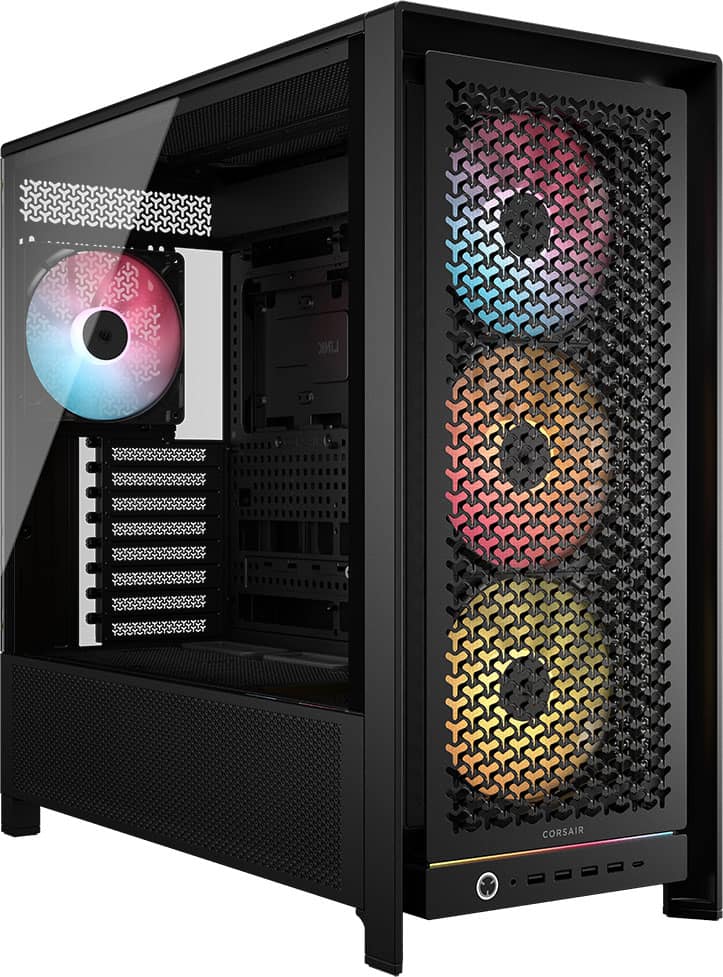

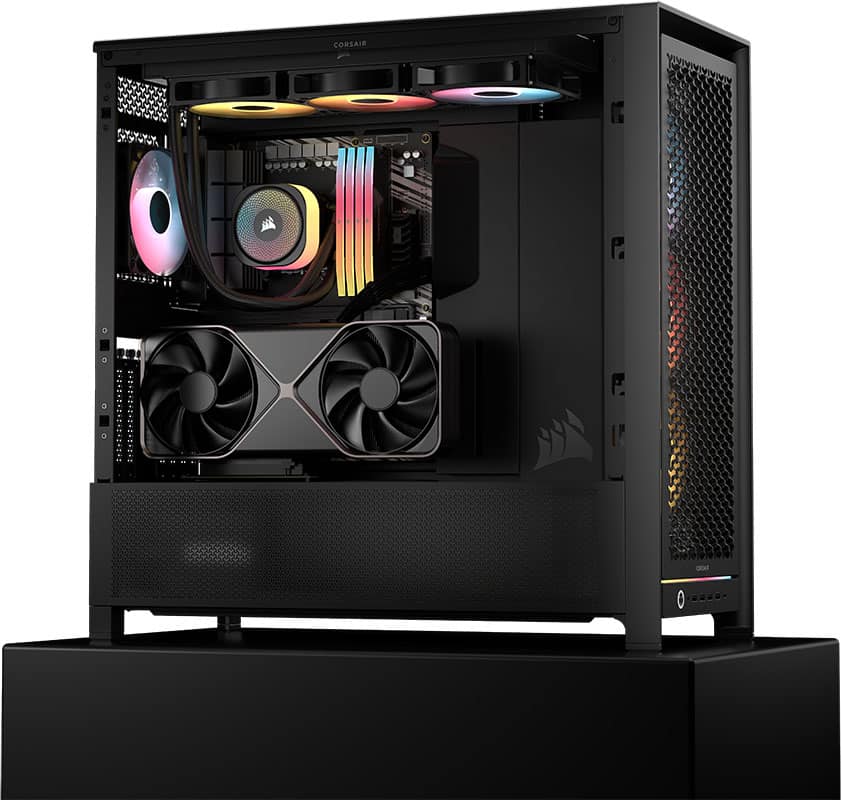

Build the high-airflow, low-temperature PC of your dreams in the CORSAIR FRAME 5000D high-airflow case, featuring the innovative FRAME Modular Case System offering unprecedented flexibility to perfectly customize your build as you want it. The InfiniRail Mounting System simplifies fan installation, while support for up to a 420mm radiator and a new 3D Y-Pattern Airflow front panel ensure cool air is directed precisely where it’s needed most. The increased width and length ensure compatibility with the most powerful graphics cards and cooling options, with support for reverse connection motherboards future-proofing your system. We provide the frame. You create the art.
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Most orders ship within a few business days — you will get tracking by email as soon as it is on the way. Questions about a delivery or a return? Reach our US-based team at info@improvemintfinancial.com or (855) 447-4921.
Highlights
- Motherboard Form Factor : Mini-ITX, microATX, ATX, EATX , see in specifications
- Maximum Power Supply Length : 250 mm , see in specifications
- Maximum GPU Length : 450 mm , see in specifications
- Number of Expansion Slots : 8 , see in specifications
- USB Ports : 1 x USB-C 3.2, 4 x USB-A 3.2 , see in specifications
- Number of USB Ports : 5 , see in specifications
- USB Port Location : Front , see in specifications
- Window Panel(s) : Panoramic, Right side , see in specifications
Specifications
General
| Brand | CORSAIR |
|---|---|
| Model Number | CC-9011309-WW |
| Product Name | 5000D RS ARGB Mid-Tower Modular PC Case |
| Product Width | 9.84 inches |
| Product Depth | 21.89 inches |
| Product Height | 21.34 inches |
| Product Weight | 28 ounces |
| Warranty - Parts | 2 year limited |
| Warranty - Labor | None |
All specifications (30)
Key specs
| Color | Black |
|---|---|
| Enclosure Type | Mid tower |
| Lighting Type | RGB |
| Cooling System | Air |
| Case Material | Steel |
| Maximum Power Supply Length | 250 millimeters |
Other
| Motherboard Form Factor | Mini-ITX |
|---|---|
| Maximum GPU Length | 450 millimeters |
| Number of Expansion Slots | 8 |
| USB Port Location | Front |
| Number of USB Ports (Total) | 5 |
| USB Ports | 1 x USB-C 3.2 |
| Headphone Jack | Yes |
| Microphone Input | Yes |
| Window Panel(s) | Panoramic |
| Customizable Case Lighting | Yes |
| Maximum CPU Cooler Height | 175 millimeters |
| Number of Fans Supported | 14 |
| Cooling Support | Top: 3x120mm, 3x140mm;Side: 3x120mm,3x140mm; Bottom: 2x120mm;Rear 1x120mm, 1x140mm; Front 3x 120mm, 3x 140mm, 2x 200mm; PSU Shroud: 2x 120mm |
| Number of Fans Included | 4 |
| Radiator Support | Top: 420mm, 360mm, 280mm, 240mm; Side: 360mm, 280mm, 240mm; Bottom: None Rear: 120mm, 140mm; PSU Shroud: None |
Features
- FRAME Modular Case System The revolutionary FRAME system gives new meaning to the word customization. The revolutionary FRAME Modular Case System redefines customization. Some of the choices include upgrading the motherboard tray to billet aluminum, replacing the front I/O panel with different USB ports, and swapping out the front intake panel for a different look. This case evolves with your needs, offering a variety of options for future upgrades and aesthetic changes
- Clean Lines or Turbo Cooled The internal side panel near the motherboard tray can be used as a cable cover for clean cable management, or you can remove it and mount fans to the side for increased cooling potential.

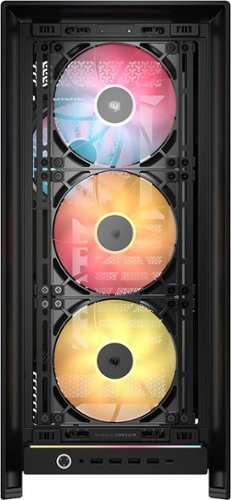

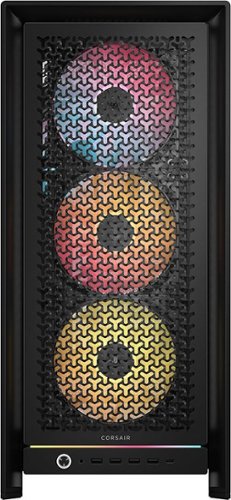

- 3D Y-Pattern Airflow Panel Optimized for high airflow and minimal restriction, the steel front panel is perforated in three dimensions with a Y-pattern that provides a low-obstruction path for cool air.
- Top 420mm Radiator Support Take your cooling to the next level with a top-mounted 420mm radiator and room for 360mm radiators on the front or side.
- InfiniRail Fan Mounting Options Mount up to 14x 120mm fans simultaneously to keep cool air flowing in and hot air exhausting quickly and efficiently, or easily adjust the InfiniRail fan mounts for 140mm or 200mm fan locations. The combinations are nearly endless.
- Four RS140 ARGB Fans Included RS140 ARGB PWM daisy-chainable fans for simply great cooling – no separate controller needed. Controlled through one 4-pin PWM connector and one +5V ARGB connector on your compatible motherboard.

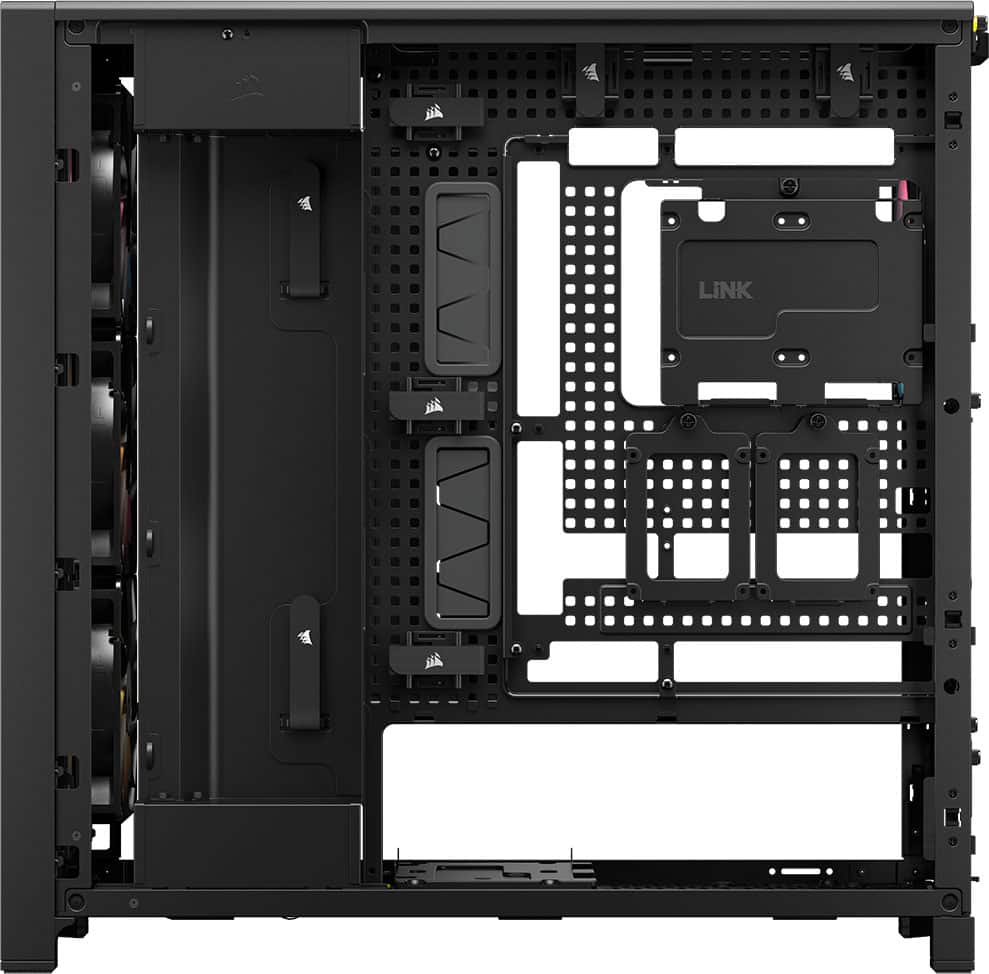

- Supports Reverse Connection Motherboards ASUS BTF, MSI Project Zero, and Gigabyte Project Stealth validated with plenty of connector and cable cutouts and tie-downs to keep things tidy even where you can’t see them.

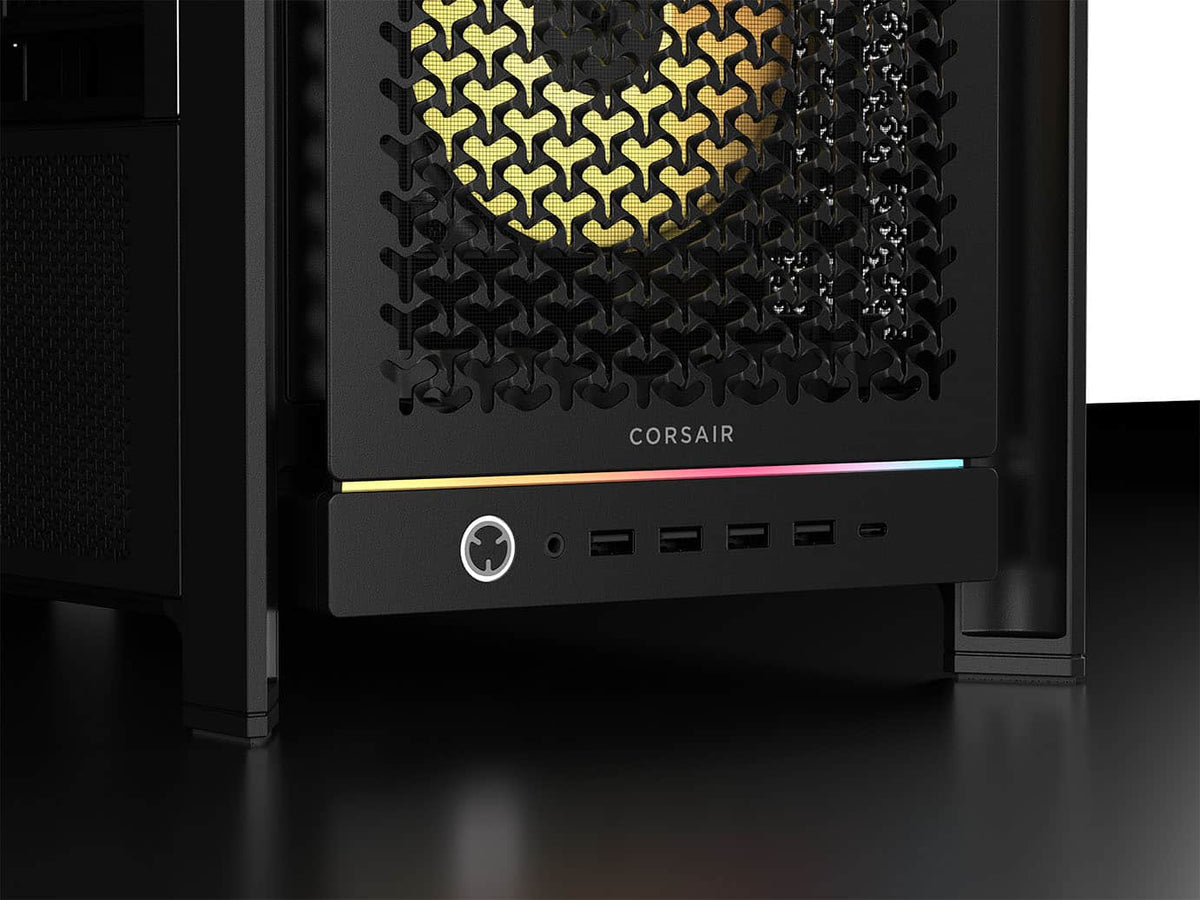

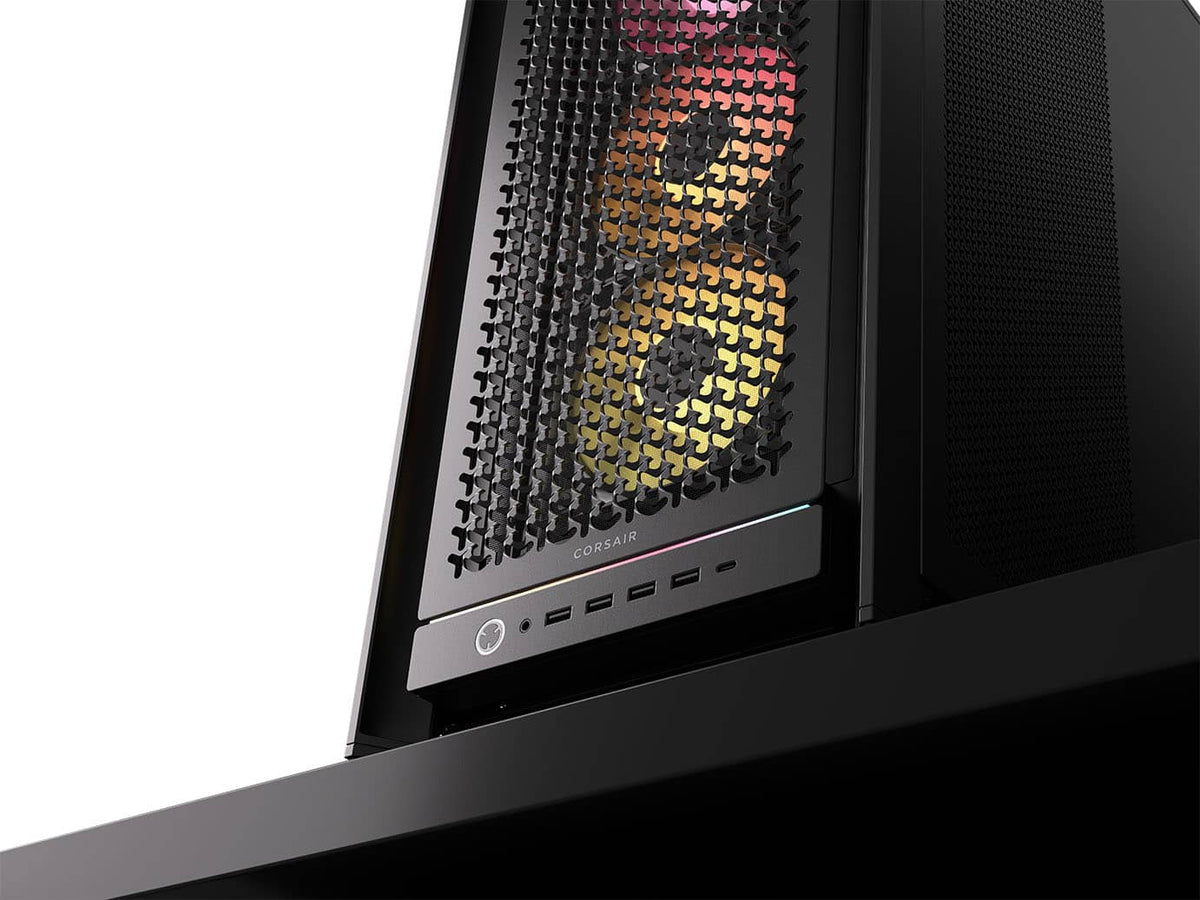

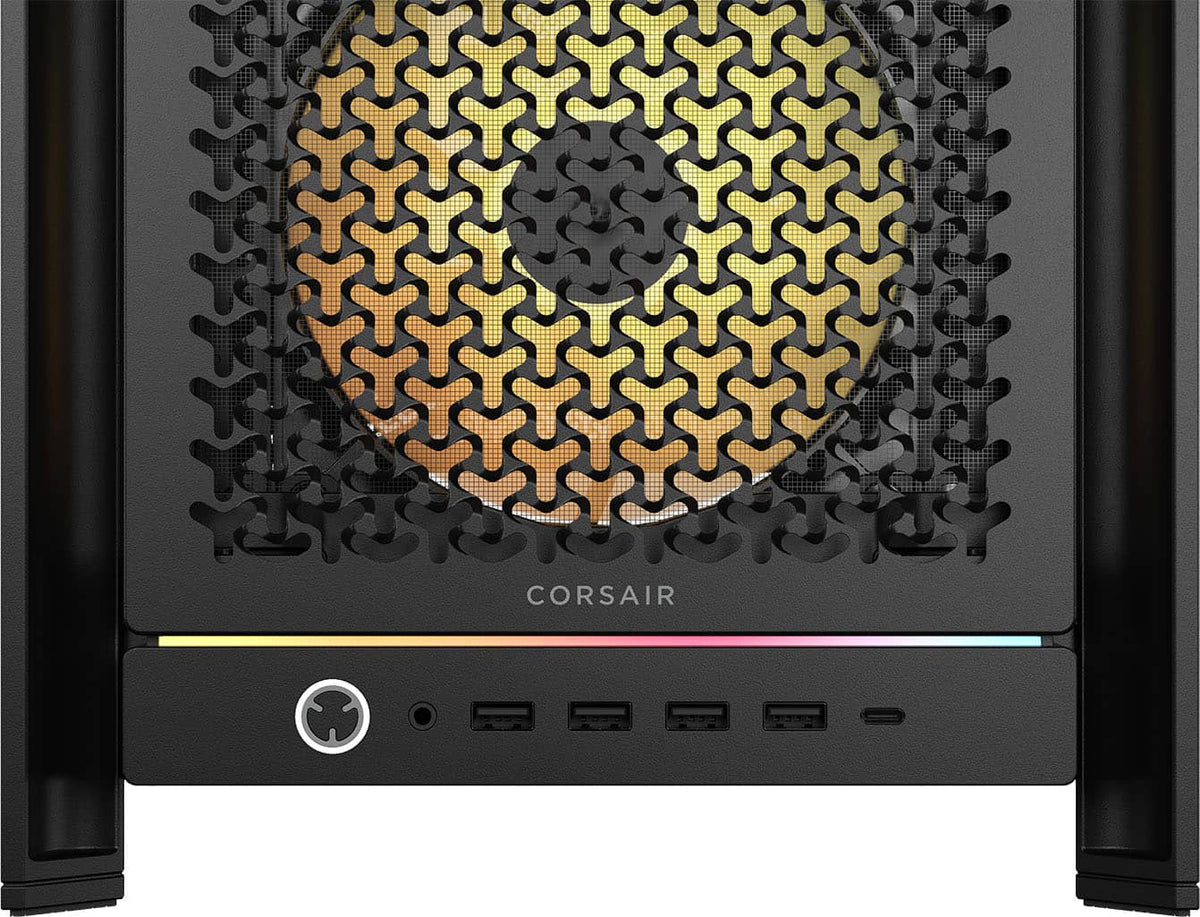

- Versatile Connectivity The FRAME 5000D offers four USB 3.2 Gen 1 Type-A ports and a USB 3.2 Gen 2 Type-C front I/O panel. The I/O ports have also been relocated to the bottom of the case to make it easy for folks with their PC on their desk to connect devices.
- Drives, Drives, Drives Included drive trays for dual 3.5” hard drives or four 2.5” SSDs, or they can be removed entirely to make room for custom liquid cooling components and cables.

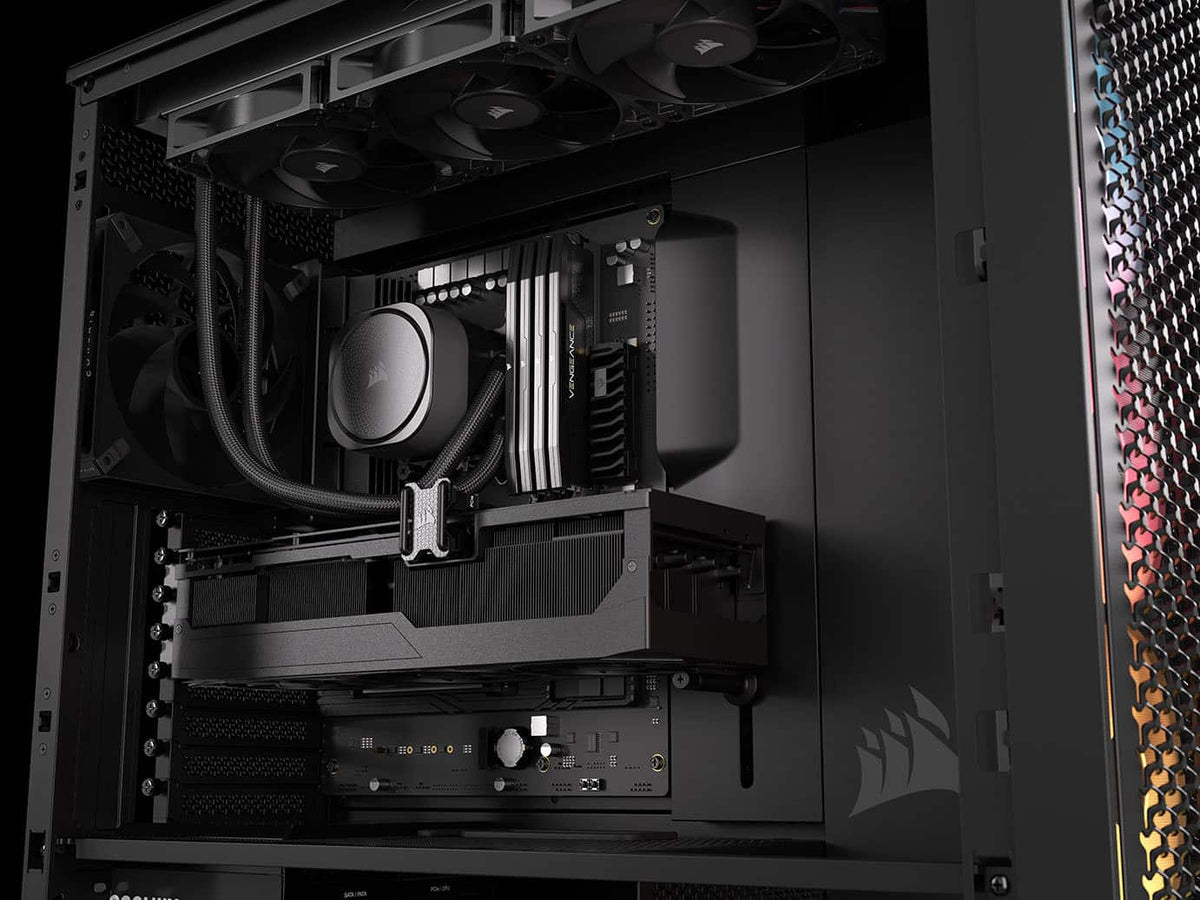

- Solid GPU Support (Literally) Modern graphics cards are bigger and heavier than ever, which is why every 5000D comes with an included GPU Anti-sag stabilization arm.
- Just a Bit Bigger GPUs are getting bigger and hotter, which is why the Frame 5000D was designed slightly longer and wider than most other mid-tower cases.
- Built for iCUE Link Designed from the ground up for easy iCUE LINK integration, the FRAME 5000D has cable hooks, increased tie downs, and a dedicated mounting pocket for an iCUE LINK System Hub (sold separately).
Customer reviews
4.4
out of 5
8 customer reviews
Most recent 6 reviews
-
Great for a 5080
We bought this case because our 5080 would not fit in our prior case. It is a well built case and easy to work with. Be aware that it is quite large and heavy. So make sure it fits what you are looking for.
-
big case
Big case. Fits all my nice juicy components in and it is high quality.
-
Great case
The best computer case!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
-
Best case yet
Upgraded to this case from the original corsair 5000d. Upgrade in everyday and was so to build in. Only thing is the cpu cables are a tight fit to go to the motherboard. Id recommend anyone who builds in this case to get one of corsairs shift power supplys to give yourself some extra wiggle room. Also with the better airflow my cpu and gpu temps are down about 5 Celsius in the operating temps
-
Best mid-tower on the market
They really took the entire build process into account. So easy to build in and awesome thermals!
-
Reccomend buying
This case is modular, not completely in every way possible, but pretty close. Very nice case. Best ive ever had. I reccomend this one. Take a serious look at getting it.
