Available in stock

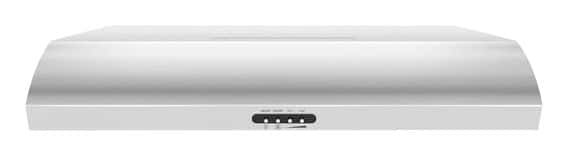

This Whirlpool UXT5236BDS convertible range hood features a FIT system that makes installation simple. A 3-speed, 560 cfm fan blows smoke and odors out of your kitchen, and a removable filter traps grease.
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Most orders ship within a few business days — you will get tracking by email as soon as it is on the way. Questions about a delivery or a return? Reach our US-based team at info@improvemintfinancial.com or (855) 447-4921.
Highlights
- Minimum Installation Height Above Cooktop : 24" , see in specifications
- Standardized Width : 36" , see in specifications
- Range Hood Type : Under cabinet , see in specifications
- Vent Style : Convertible , see in specifications
- Vent Type : Ducted, Ductless , see in specifications
- Number of Fan Speeds : 3 , see in specifications
- Control Type : Button , see in specifications
- Product Height : 4 15/16 inches , see in specifications
Specifications
General
| Brand | Whirlpool |
|---|---|
| Model Number | UXT5236BDS |
| Product Name | 36 inch Convertible Range Hood |

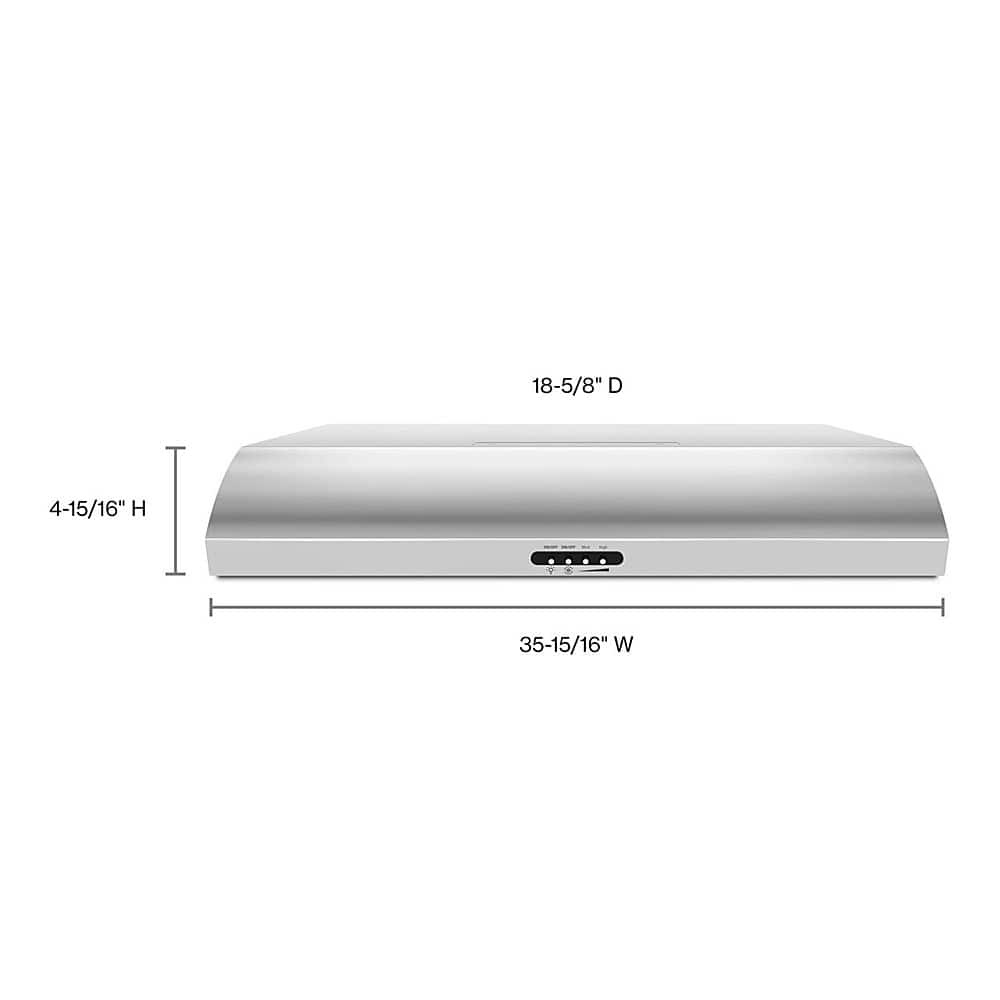

| Product Width | 35 15/16 inches |
| Product Depth | 18 5/8 inches |
| Product Height | 4 15/16 inches |
| Product Weight | 12 pounds |
| Warranty - Parts | 1 year limited |
| Warranty - Labor | 1 year limited |
All specifications (40)
Key specs
| Color | Stainless Steel |
|---|---|
| Vent Type | Ducted |
| Range Hood Type | Under cabinet |
| Color Finish | Stainless steel |
| Dishwasher-Safe Filter | No |
| Integrated Light(s) | Yes |
| Temperature Sensor | No |
| Control Type | Button |
Other
| Minimum Installation Height Above Cooktop | 24 inches |
|---|---|
| Standardized Width | 36 inches |
| Duct Shape | Rectangular |
| Duct Length | 420 inches |
| Duct Width | 10 inches |
| Exhaust Vent Location | Rear |
| Vent Style | Convertible |
| Number of Fan Speeds | 3 |
| Delay Shut-Off | No |
| Auto Fan Shut-Off | No |
| Remote Control | No |
| Damper Included | Yes |
| Number of Lights | 2 |
| Number of Light Levels | 2 |
| Bulb Type Required | Halogen |
| Bulb(s) Included | Yes |
| Maximum Air Flow Capacity | 560 cubic feet per minute |
| Minimum Operating Sound Level | 7 sones |
| Removable Grease Filter | Yes |
| Number of Filters | 2 |
| Amperage | 15 amperes |
| Voltage | 120 volts |
| Product Safety Certifications and Standard(s) | UL Listed |
Features
- 3-Speed, 560 CFM Motor Class Effectively removes smoke and odors from your kitchen. (Performance varies based on installation. Resources available at aham.org.)
- Grease Filter The grease filter helps trap unwanted grease and helps remove odors.
- FIT System The FIT system eliminates measuring, cutting and trim for a perfect fit every time. (Based on typical installation with existing electrical and ventilation connections. Consult a professional installer to ensure your installation complies with code requirements.)
- Hidden Vent
- Halogen Lighting Lets you easily install the range hood in 3 simple steps.
- 7" Round Damper
- 3-1/4" x 10" Damper
- Recirculation (Non-Vented/Duct-Free) By not having to connect to outside air, this hood can be installed almost anywhere, including a condo. Recirculation happens through filters to help keep the air fresh.
Customer reviews
4.3
out of 5
30 customer reviews
Most recent 6 reviews
-
We need to measure different places on the donkey
You’ll write more fractions. Can’t you measure in cm?
-
Nicely designed vent.
Works great. Lights are bright and ventilation is strong.
-
Great upgrade
It was a great purchase. Love the stainless look .
-
Adequate range hood
Range hood only has one setting for the lights; have to unscrew screw to remove fan grid to clean and to get to the lights. Provides great over the stove lighting.
-
Great hood for recirculated
I have had this hood for over a year now, it works very well and easy to clean up.
-
nice range hood
easy to install and looks good. Matches well with all of my stainless appliances. However, the directions do indicate it takes one person to install. Unless you have the right height altering tool or product, it did take two of us to feed the electrical through and eventually mounting it on the wall.
Ratings and reviews are provided by our partner.
Customers also viewed
From
Windster Hoods - 36 inches - Convertible - Under cabinet Range Hood - Stainless Steel
Choose your option
From
Zephyr - 36 inches - Convertible - Under cabinet Range Hood - Stainless Steel
Choose your option
From

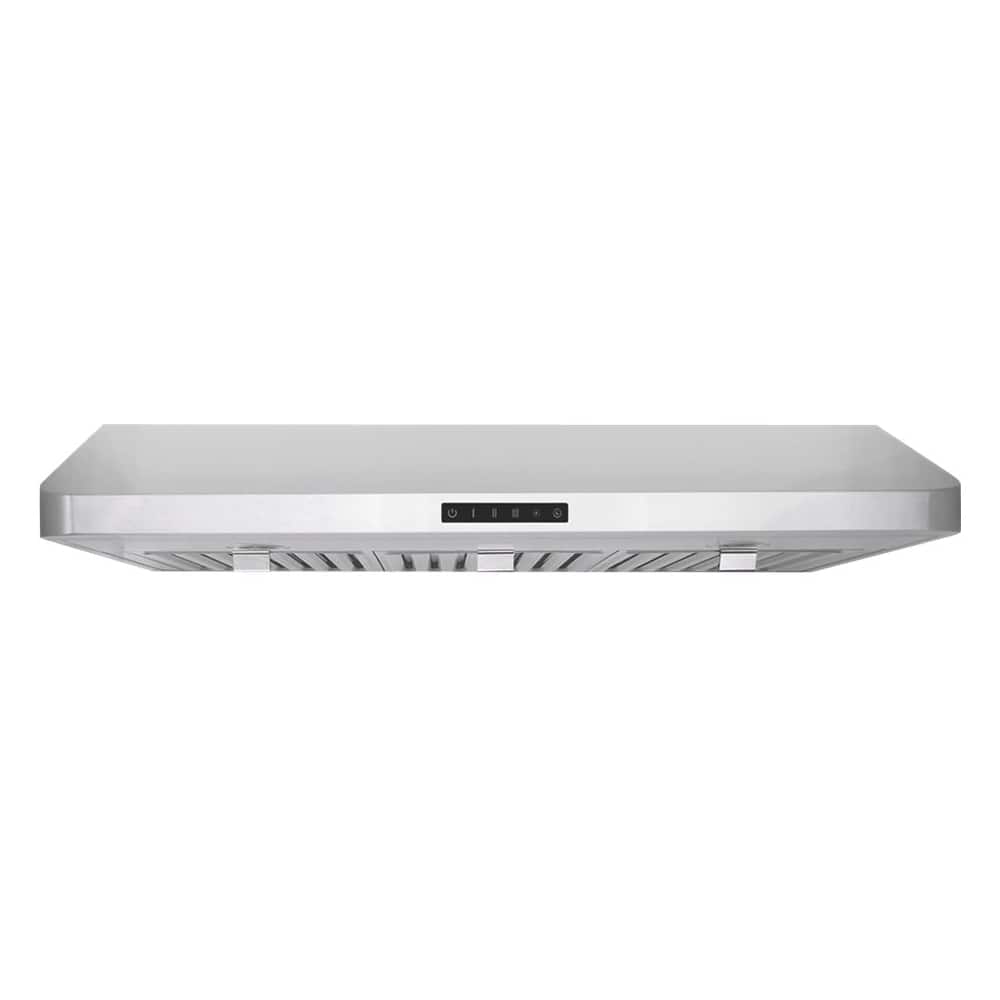

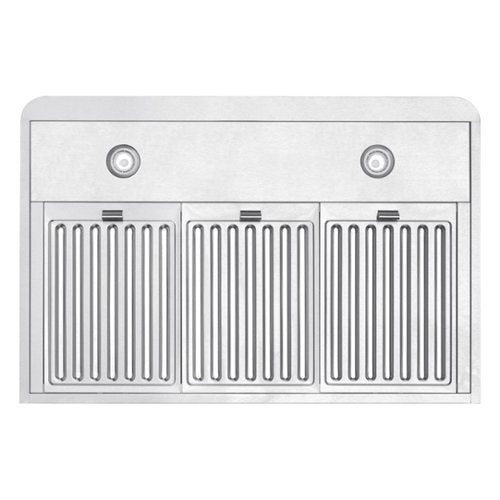

Windster Hoods - 36 inches - Under cabinet Range Hood - Stainless Steel
Choose your option
From

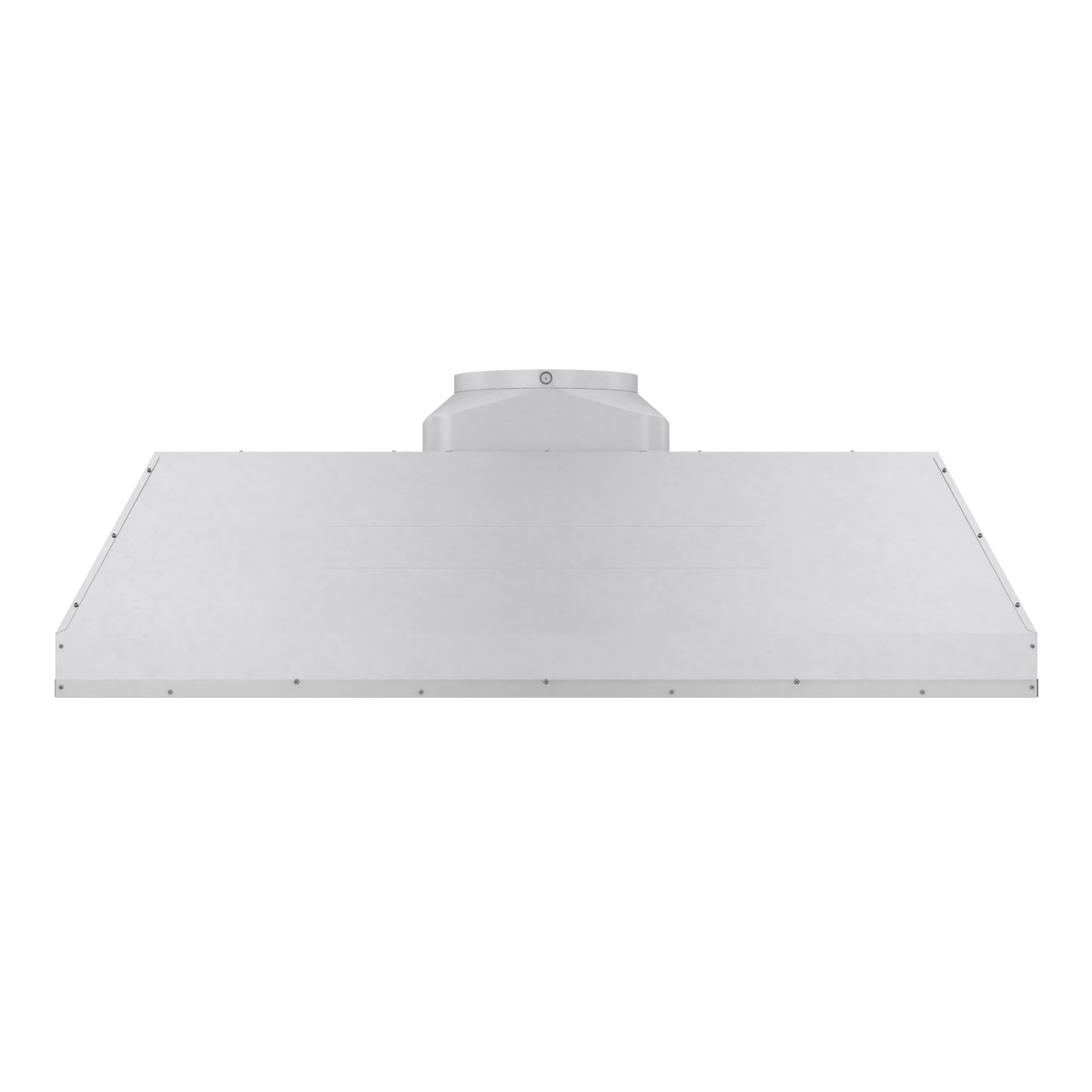

Thor Kitchen - 36 inches - Externally Vented & Externally Vented - Range Hood Insert - Stainless Steel
