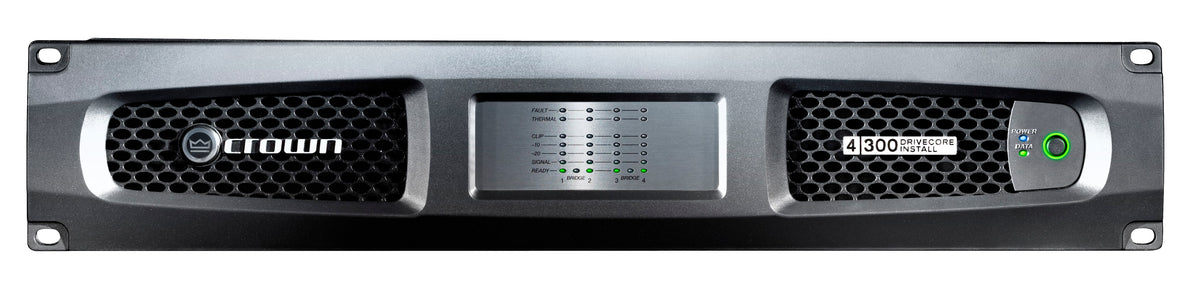

Crown - DCI4x300-U-USFX Four-channel, Analog Power Amplifier, 300W @ 4Ω, 70V/100V - Black

Crown - DCI4x300-U-USFX Four-channel, Analog Power Amplifier, 300W @ 4Ω, 70V/100V - Black

Crown - DCI4x300-U-USFX Four-channel, Analog Power Amplifier, 300W @ 4Ω, 70V/100V - Black

Crown - DCI4x300-U-USFX Four-channel, Analog Power Amplifier, 300W @ 4Ω, 70V/100V - Black

Crown - DCI4x300-U-USFX Four-channel, Analog Power Amplifier, 300W @ 4Ω, 70V/100V - Black

Type: Power Amplifiers

Model: DCI4X300-U-USFX

SKU: 6618364

$3,653.00

Shipping calculated at checkout.

Available in stock

The DriveCore Install series amplifiers is a complete line of high performance installation amplifiers based on the proprietary DriveCore technology. DCi Series amplifiers are designed, engineered and manufactured to the industry’s highest quality standards, and provide system integrators with the advanced features and flexibility required for challenging 21st century installed sound applications. Versatile, compact and highly energy-efficient, DCi Series amplifiers continue the unbroken Crown tradition of leadership in professional and commercial power amplifier technology.

Pickup Enter a ZIP to check Shipping

Low weekly payments
No Perfect Credit Needed
Pay it off early in 110 days

Shipping & Returns

Most orders ship within a few business days. Track your order any time in your account, and many orders also get tracking by email. Questions about a delivery or a return? Reach our US-based team at info@improvemintfinancial.com or (855) 447-4921.

Share:

Crown - DCI4x300-U-USFX Four-channel, Analog Power Amplifier, 300W @ 4Ω, 70V/100V - Black

$3,653.00

Highlights

Number of Channels : 4 , see in specifications
Amplifier Type : Power amplifiers , see in specifications
Amplifier Class : D , see in specifications
Network Connector(s) : No network connectors , see in specifications
Total Harmonic Distortion : 0.0035 percent , see in specifications
Speaker Connection Type : Banana Jack/Screw Terminals , see in specifications
Video Only Inputs : No video only inputs , see in specifications
Fan Cooled : Yes , see in specifications

Specifications

General

Brand	Crown
Model Number	DCI4x300-U-USFX
Product Name	DCI4x300-U-USFX Four-channel, Analog Power Amplifier, 300W @ 4Ω, 70V/100V
Product Width	19 inches
Product Height	3.5 inches
Product Weight	20.1 pounds
Warranty - Parts	3 years
Warranty - Labor	3 Year

All specifications (22)

Key specs

Amplifier Class	D
Amplifier Type	Power amplifiers
Continuous Watts x Channel @ Ohms	300W x 4 Channel @4 Ohms
Color	Black
Product Depth	14.25 inches
Speaker Connection Type	Banana Jack/Screw Terminals

Other

Number of Channels	4
Total Harmonic Distortion	0.0035 percent
Video Only Inputs	No video only inputs
Network Connector(s)	No network connectors
Line-Level Inputs	No
Video Only Outputs	No video only outputs
Fan Cooled	Yes
Bridgeable	Yes

Features

Class D Amplifier Based on crown's proprietary and patented drivecore technology, these amplifiers are the next generation of pwm technology using cutting edge class d amplifier topologies
True Rack Density True rack density – 4 channel by 300w. other amplifer options available with 300w or 600w in 2/4/8 channel configurations and 1250w in 2/4 channel configurations with bridgable outputs of 300- 2500w, all in a 2u form factor.
Direct Drive Constant Voltage Save money by using smaller gauge wiring to drive the speakers using either 70v rms or 100vrms. with no need for a step-up transformer at the output, the dci produces higher audio quality much more efficiently.
CHANNEL INDEPENDENT HI-Z/LOW-Z SELECTION Drive either one or two speakers in low-z mode, or literally hundreds of speakers in high-z mode (70vrms or 100vrms). this means better design flexibility since dci powers all loads on a channel-by-channel basis.
BRIDGEABLE CHANNEL PAIRS Dci series channels are bridgeable – even in 100vrms mode – which means even more adaptability for higher power applications such as subwoofers.
Powersave Powersave includes an auto-standby mode where after 30 minutes of no audio input, the amplifier powers down and consumes less than 1w; this feature can be enabled and disabled via the back panel dip switches
Advanced PFC Universal Power Supply Provides market-leading efficency, and is designed to deliver maximum power no matter where the amplifier is located; universal ac input accepts 100 – 240vac, 50/60hz (±10%)
REMOTE ON/OFF INTERFACE Aux port provides additional flexibility for amplifiers to be integrated in control systems for remote on/off and amplifier fault monitoring
Efficien Cooling System Highly efficient internal cooling fans provide airflow to the most heat-generating parts. incorporating the fans into the amplifier brick design maximizes cooling while minimizing wasted energy and noise.

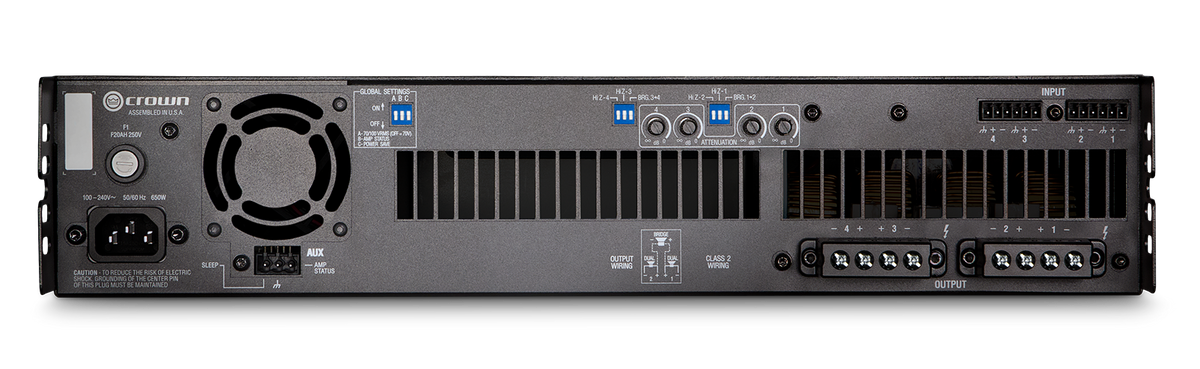

Analog I/O 4x block 6-pin balanced input/4x barrier strip 4-pin output
