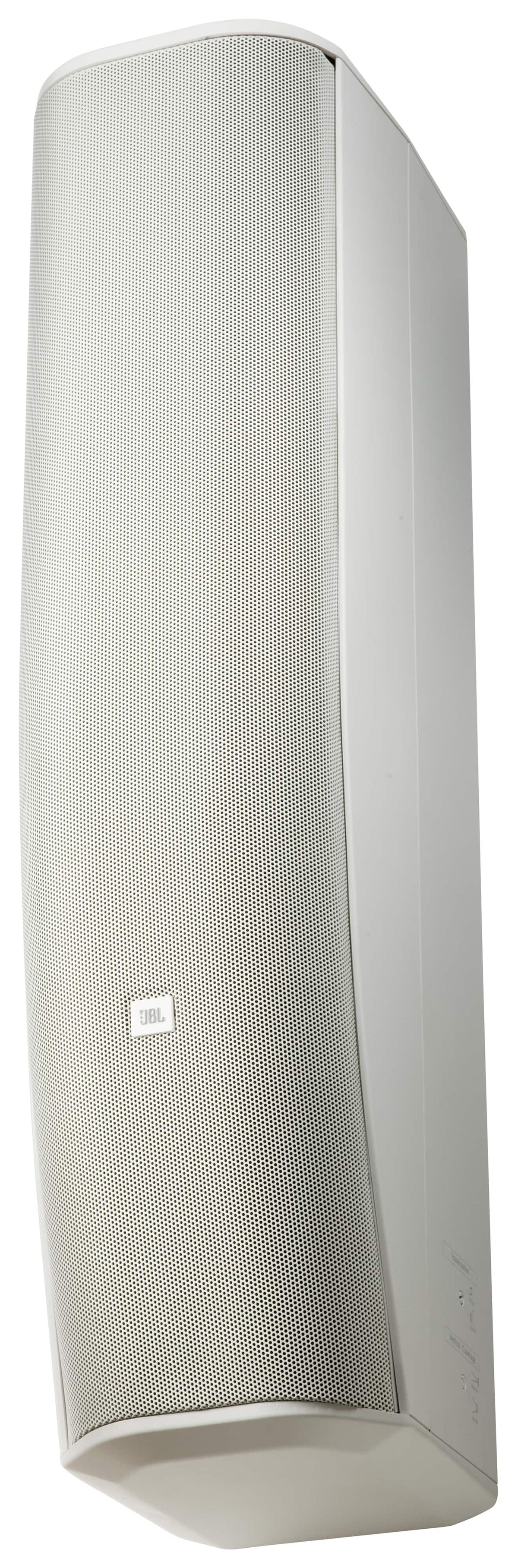

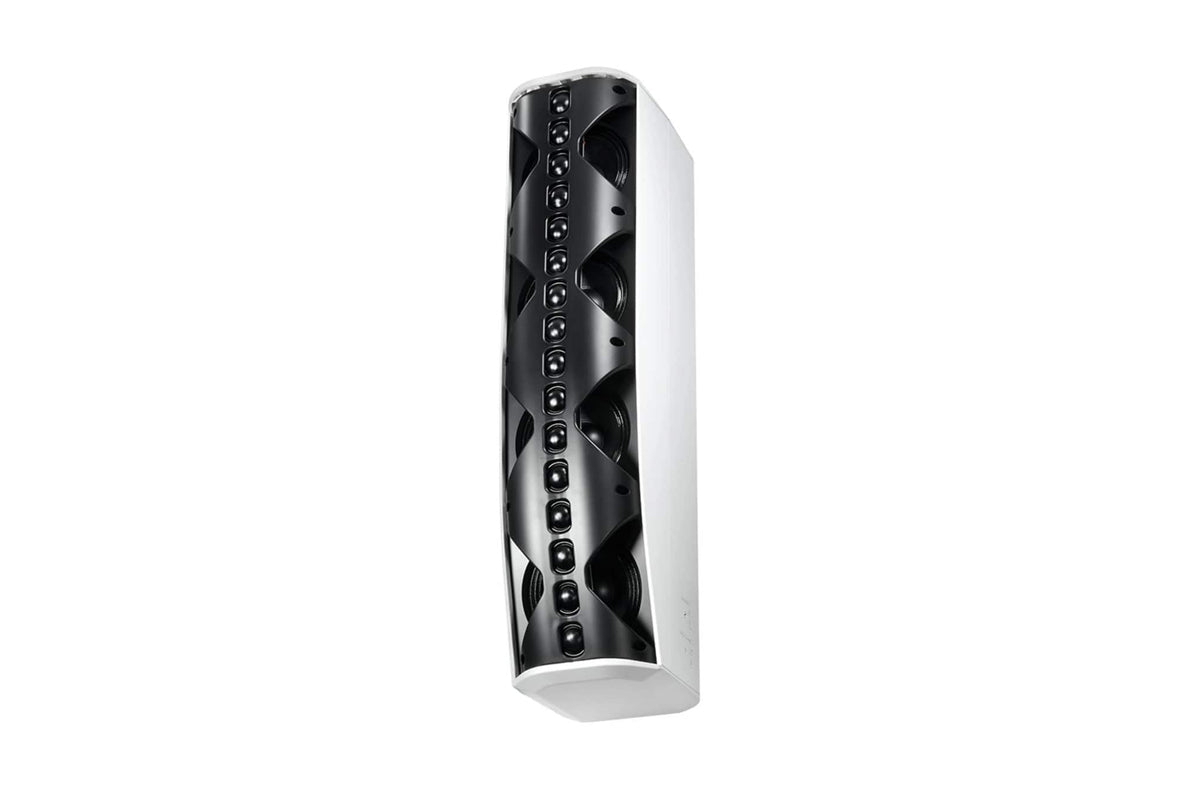

JBL - CBT70J Altavoz de columna de arreglo lineal de dos vías con tecnología de ancho de haz constante, montaje en pared - Unidad - Blanco
Disponible en stock
El CBT 70J-1, con tecnología de ancho de haz constante (Constant Beamwidth Technology), representa un avance en la consistencia del control de patrón, utilizando una formación de haz mediante retardo analógico complejo y una atenuación de amplitud para lograr una cobertura vertical superior y consistente, sin el haz vertical estrecho ni los lóbulos fuera de cobertura típicos de los altavoces de columna de formato recto. El CBT 70J-1 combina la tecnología de ancho de haz constante con una curvatura física en forma de J, lo que da como resultado un arreglo lineal progresivo muy bien controlado con una cobertura vertical asimétrica. La cobertura asimétrica produce una mayor concentración de sonido con un patrón más cerrado en la mitad superior del arreglo y una menor concentración de sonido con un patrón vertical más amplio en la mitad inferior del arreglo.
No se pudo cargar la disponibilidad de recogida
Envíos y devoluciones
Envíos y devoluciones
La mayoría de los pedidos se envían en pocos días hábiles; recibirá el número de rastreo por correo electrónico en cuanto vaya en camino. ¿Tiene preguntas sobre una entrega o una devolución? Comuníquese con nuestro equipo en EE. UU. en info@improvemintfinancial.com o al (855) 447-4921.
Aspectos destacados
- Speaker Type : Satellite, In-Wall , see in specifications
- Minimum Frequency Response : 60Hz , see in specifications
- Maximum Frequency Response : 20 kHz , see in specifications
- Impedance : 8 ohms , see in specifications
- Number of Speakers : 20 , see in specifications
- Peak Power Handling : 2000 W , see in specifications
- RMS Power : 500 W , see in specifications
- Tweeter Size : 1" , see in specifications
Especificaciones
General
| Brand | JBL |
|---|---|
| Model Number | CBT70J1WH |
| Product Name | CBT70J Constant Beamwidth Technology Two-Way Line Array Column Speaker, Wall Mount-Each |
| Product Width | 6.7 inches |
| Product Depth | 9.3 inches |
| Product Height | 27.4 inches |
| Product Weight | 21 pounds |
| Warranty - Parts | 2 years |
| Warranty - Labor | 2 years |
All specifications (27)
Key specs
| Wireless Multi-Room Audio | No |
|---|---|
| Audio Only Inputs | No audio only inputs |
| Color | White |
| Speaker Connectivity | Wired |
| Maximum Frequency Response | 20 kilohertz |
| Speaker Type | Satellite |
| RMS Power | 500 watts |
| Speaker Wire Connection Type | Banana Jack/Screw Terminals |
Other
| Peak Power Handling | 2000 watts |
|---|---|
| Impedance | 8 ohms |
| Minimum Frequency Response | 60 hertz |
| Number of Speakers | 20 |
| Number of Tweeters | 16 |
| Tweeter Size | 1 inches |
| Number of Woofers | 4 |
| Woofer Size | 5 inches |
| Network Connector(s) | No network connectors |
| Indoor Or Outdoor Use | Indoor and outdoor |
Características

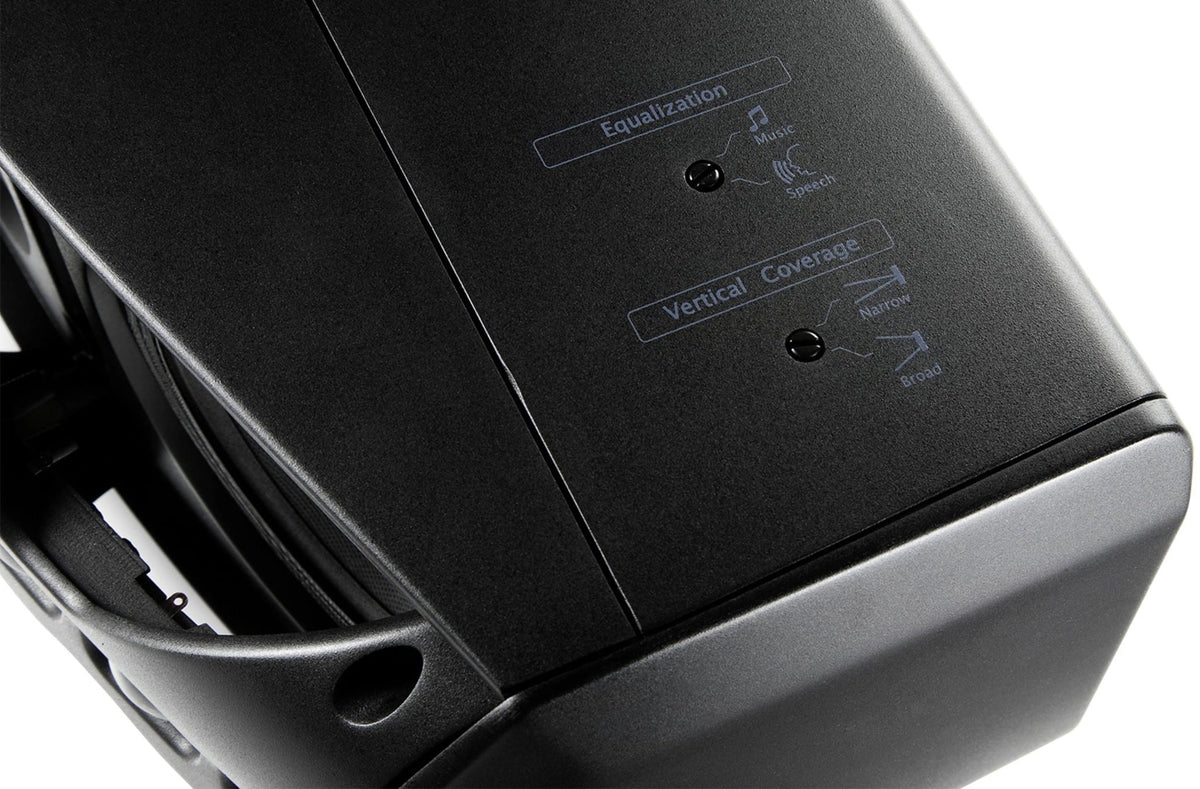

- Adjustable Coverage to Fit the Application The innovative coverage adjustability allows switching between broad and narrow vertical coverage settings to allow matching the coverage and throw requirements of the application. Coverage can be easily switched in-venue with the speaker already installed. This innovation allows a single loudspeaker model to excel in an extremely wide variety of project types.
- User Variable Voicing The voicing can be set to match the application through a Music/Speech switch. The Music setting provides flat frequency response, while the Speech setting produces a mid-range presence boost to provide clear, intelligible speech even at the longest throw distances, along with increased midrange sensitivity for higher midrange maximum output capability
- Low Frequency Drivers The low frequency drivers are lightweight dual magnet neodymium motors with 38 mm (1.5 in) diameter voice coils. The dual magnet system provides maximum flux in a compact package. The magnet structure is magnetically shielded and the pole tips are magnetically saturated for lower flux modulation and minimum distortion. The 16 mm (0.63 in) long coil provides high linear drive and high power handling in a compact driver.
- High Frequency Drivers The high frequency driver features a dual magnet neodymium structure for maximum sensitivity. The tweeter is encased for weather resistance. The drivers are magnetically shielded to allow close placement CRT monitors.
- SonicGuard Dynamic SonicGuard protection on the high frequency section minimizes distortion at high drive levels by limiting driver excursion dynamically. This maximizes music clarity and speech intelligibility at high drive levels while protecting the drivers from damage due to occasional overpowering.
- Bracketry A swivel (pan) / tilt wall-mount bracket is included, plus ten M6 inserts on the back panel fit the spacing of common third-party mounting brackets, or can be utilized to suspend the speaker using forged shoulder steel eyebolts or swivel mounting rings, providing installation versatility.
- Weather Resistant with optional panel cover CBT 70J-1 can be installed either indoors or outdoors. IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant. The drivers are weather-treated, the fiberglass reinforced ABS cabinet is excellent for outdoor applications, external screws are stainless steel and the painted aluminum grille resists rusting in the harshest conditions.
- Mounting Bracket Included swivel (pan)/tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming
