ZLINE - 34 pulgadas - Extracción externa - Inserto para campana extractora - Acero inoxidable
Disponible en stock

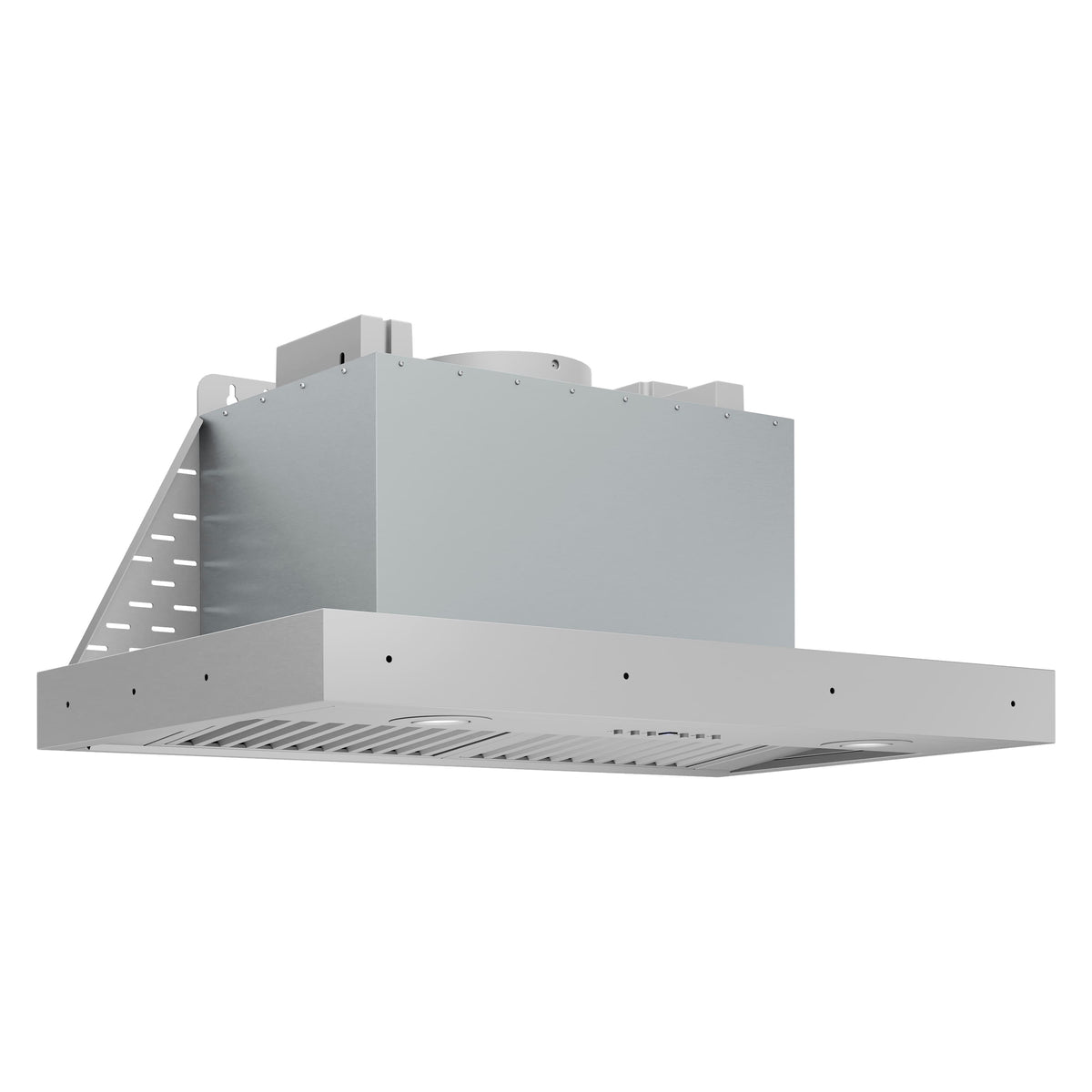

El inserto para campana extractora de montaje en pared ZLINE DuraMount™ de 34 pulgadas en acero inoxidable (683-34) combina una potente ventilación con un diseño de montaje patentado que aporta un lujo accesible a cualquier diseño de cocina personalizada. Con soportes triangulares reforzados con puntos de montaje escalonados y superpuestos, DuraMount™ está diseñado específicamente para coincidir con los montantes en un espaciado estándar de 16 pulgadas, lo que garantiza un ajuste estabilizado en cada instalación —sin necesidad de refuerzos adicionales— que ofrece una alineación diseñada con precisión y un rendimiento profesional pensado para hogares reales.
No se pudo cargar la disponibilidad de recogida
Envíos y devoluciones
Envíos y devoluciones
La mayoría de los pedidos se envían en pocos días hábiles; recibirá el número de rastreo por correo electrónico en cuanto vaya en camino. ¿Tiene preguntas sobre una entrega o una devolución? Comuníquese con nuestro equipo en EE. UU. en info@improvemintfinancial.com o al (855) 447-4921.
Aspectos destacados
- Minimum Installation Height Above Cooktop : 30" , see in specifications
- Standardized Width : 34" , see in specifications
- Range Hood Type : Insert , see in specifications
- Vent Style : External , see in specifications
- Vent Type : Ducted , see in specifications
- Product Height : 15.38" , see in specifications
- Product Width : 34.5" , see in specifications
- Product Depth : 18.75" , see in specifications
Especificaciones
General
| Brand | ZLINE |
|---|---|
| Model Number | 683-34 |
| Product Name | ZLINE 34 in. DuraMount™ Ducted Wall Mount Range Hood Insert in Stainless Steel |

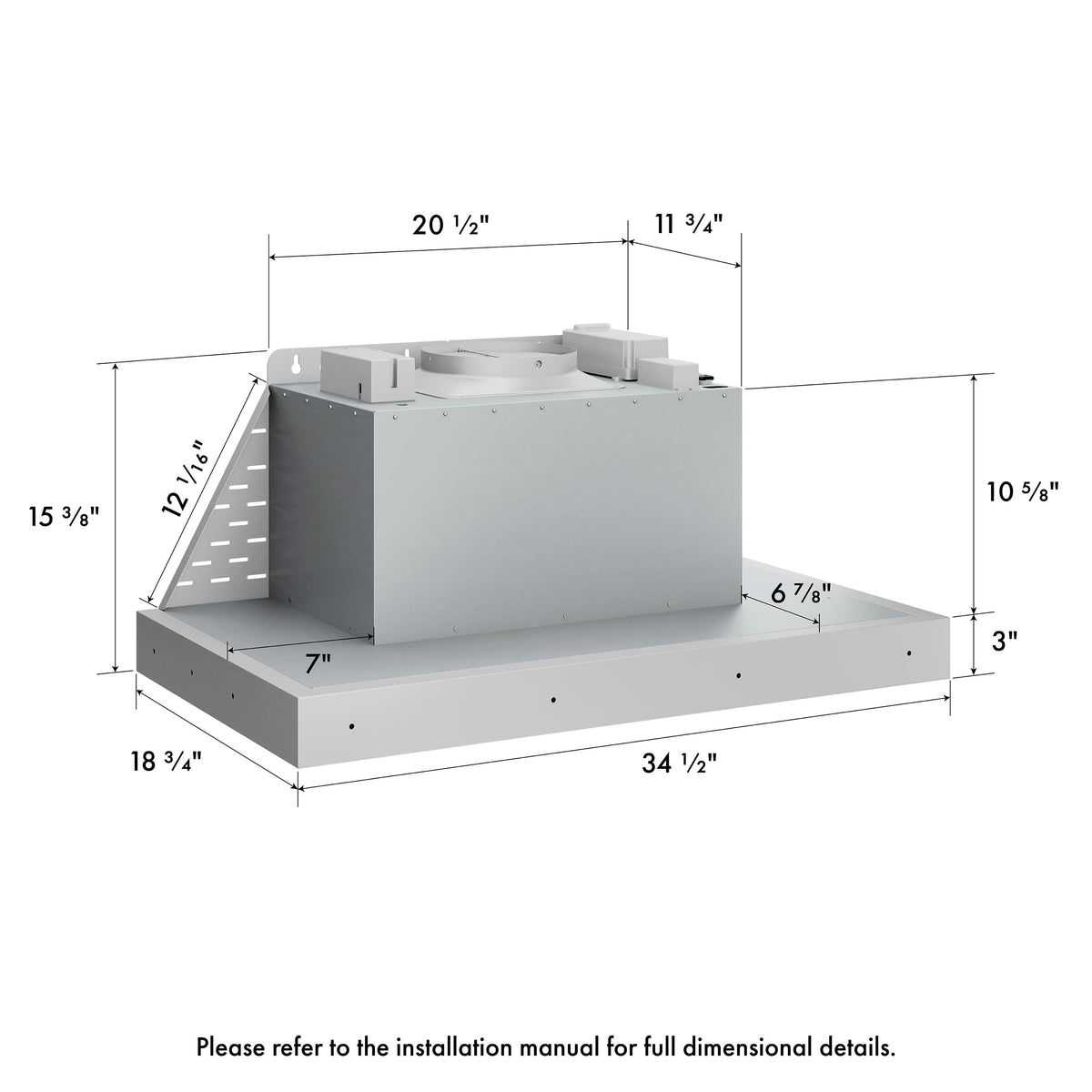

| Product Width | 34.5 inches |
| Product Depth | 18.75 inches |
| Product Height | 15.38 inches |
| Product Weight | 55.12 pounds |
| Warranty - Parts | 3 years |
| Warranty - Labor | None |
All specifications (17)
Key specs
| Color | Stainless Steel |
|---|---|
| Vent Type | Ducted |
| Range Hood Type | Insert |
Other
| Minimum Installation Height Above Cooktop | 30 inches |
|---|---|
| Standardized Width | 34 inches |
| Cut-Out Width | 34.5 inches |
| Cut-Out Depth | 18.75 inches |
| Vent Style | External |
Características

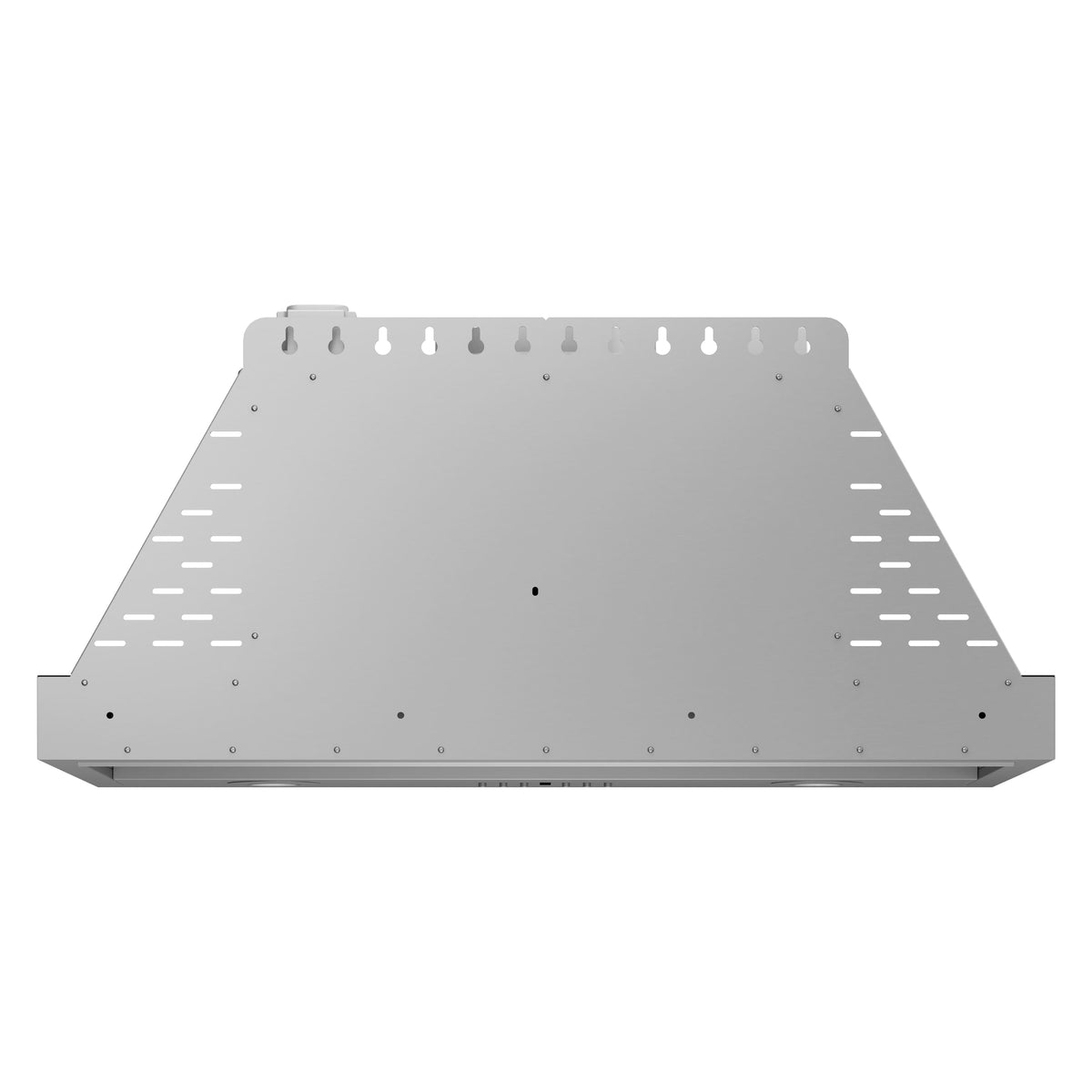

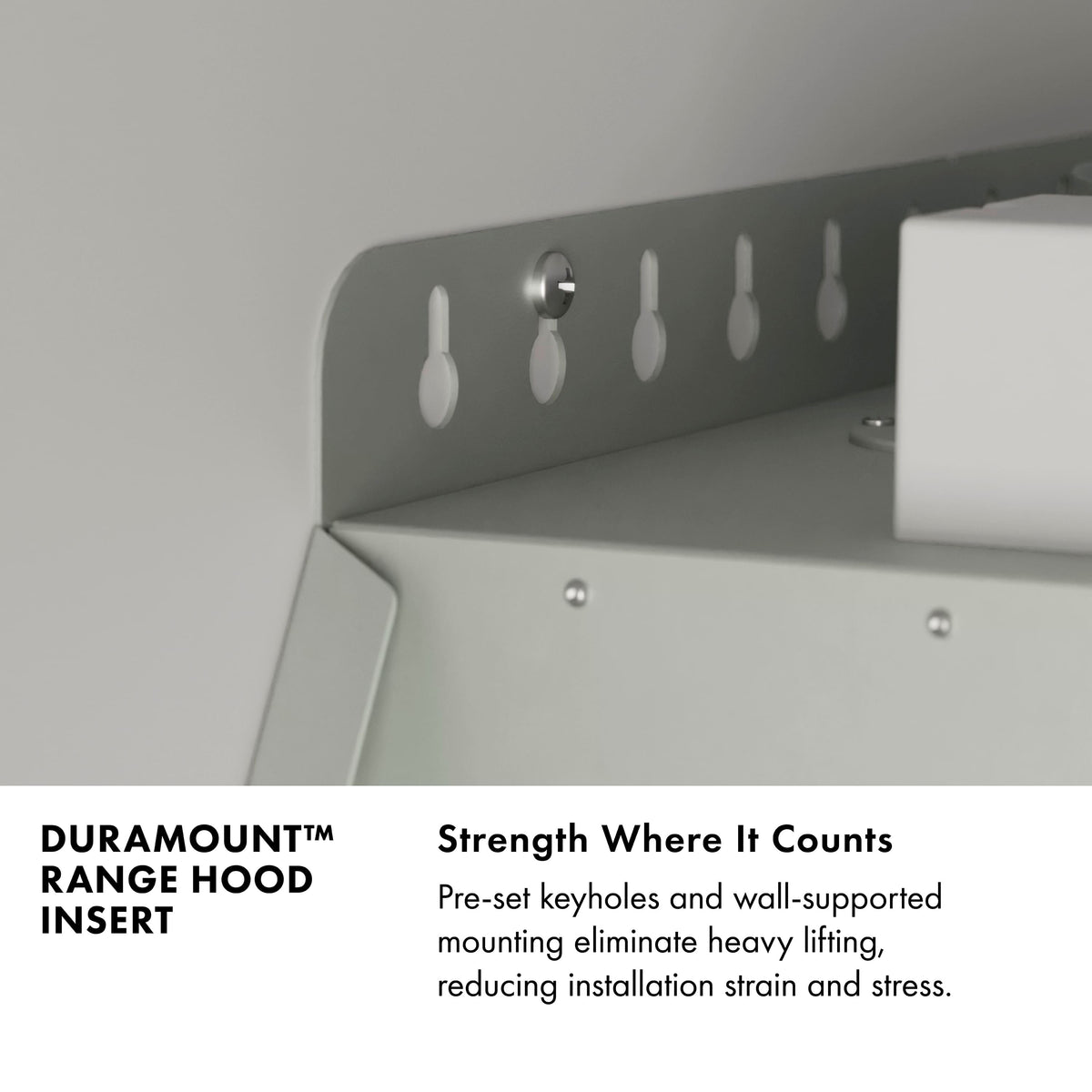

- Patented Mounting Design Mounting screws are leveled first, then the insert hangs directly onto pre-set keyholes, reducing the need for heavy lifting and enabling a straightforward installation process
- Multi-Point Flexibility Designed for a 36-inch custom hood, a multi-point perimeter pattern offers numerous options, making it easy to fasten to studs or anchors without complex modifications or additional bracing
- Two Decades of Trusted Power Built on 20 years of ZLINE engineering expertise, the 683-34 DuraMount insert features dual high-velocity motors backed by the industry’s first-ever lifetime motor warranty guarantee, bringing a new level of proven performance to custom kitchen ventilation

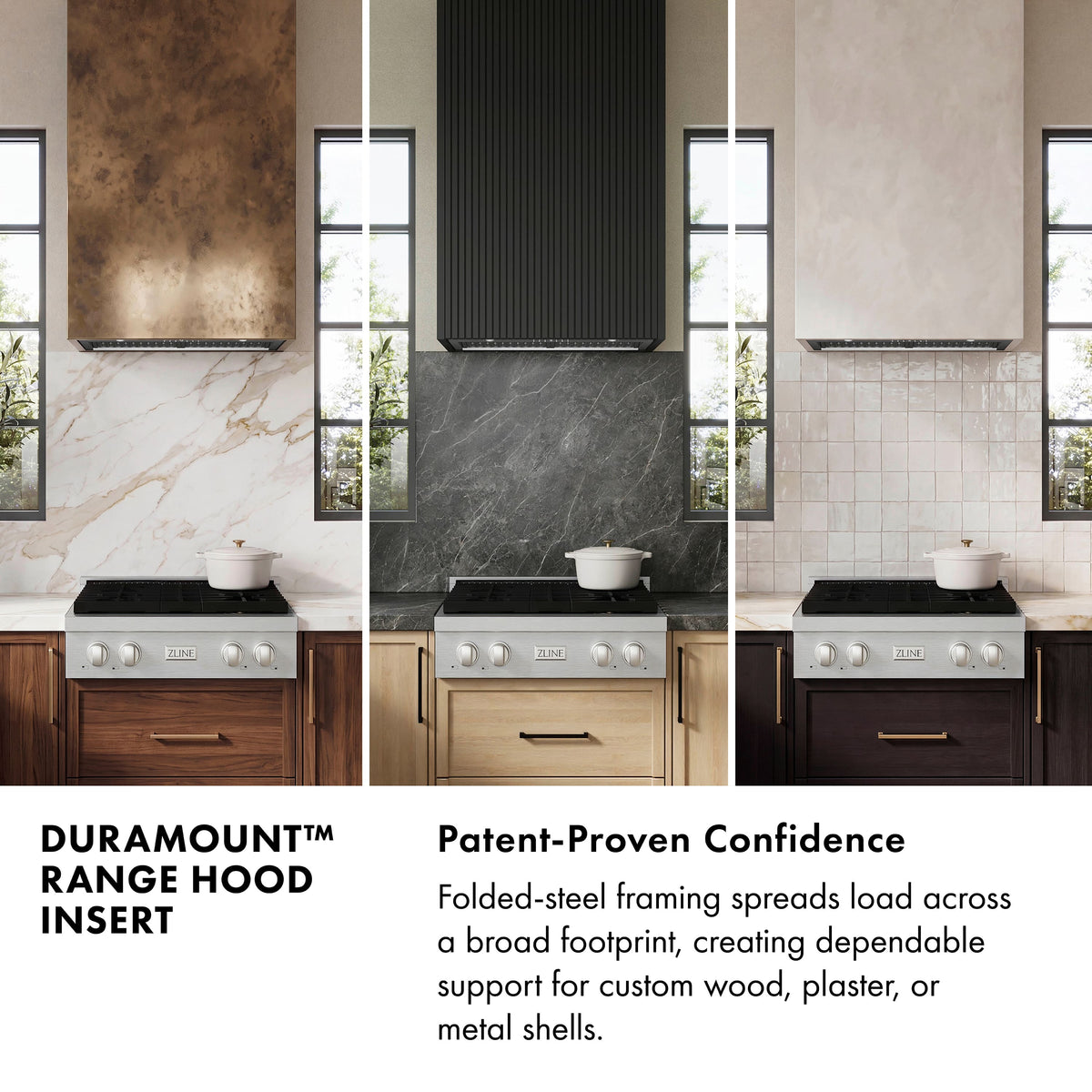

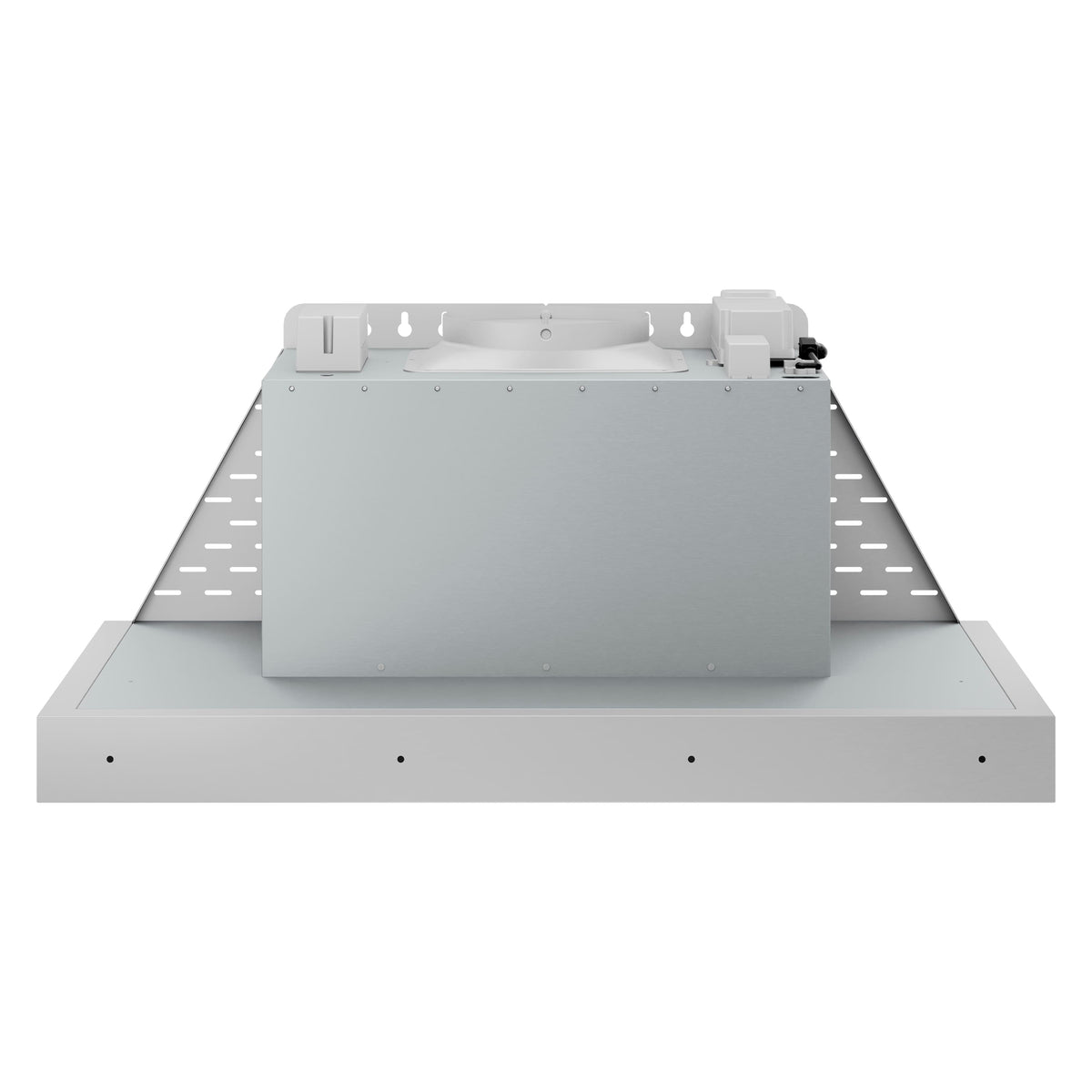

- Full-Frame Support A rigid, folded-steel DuraMount frame distributes weight across a broad footprint, creating a strong foundation for wood, plaster, or metal custom shells
- Remodel-Ready Fit Manufactured to align with standard 16 in. on-center framing and irregular wall structures, ensuring dependable installs even in remodels or tight retrofit conditions
- Anchor-Friendly Installation (120/240/320/400 CFM) to choose the appropriate air flow for your cooking situation
- Corrosion-Resistant Stainless Steel Manufactured with brushed 430-grade stainless steel, which contains rust and corrosion-resistant properties to ensure a durable insert that will last for years to come

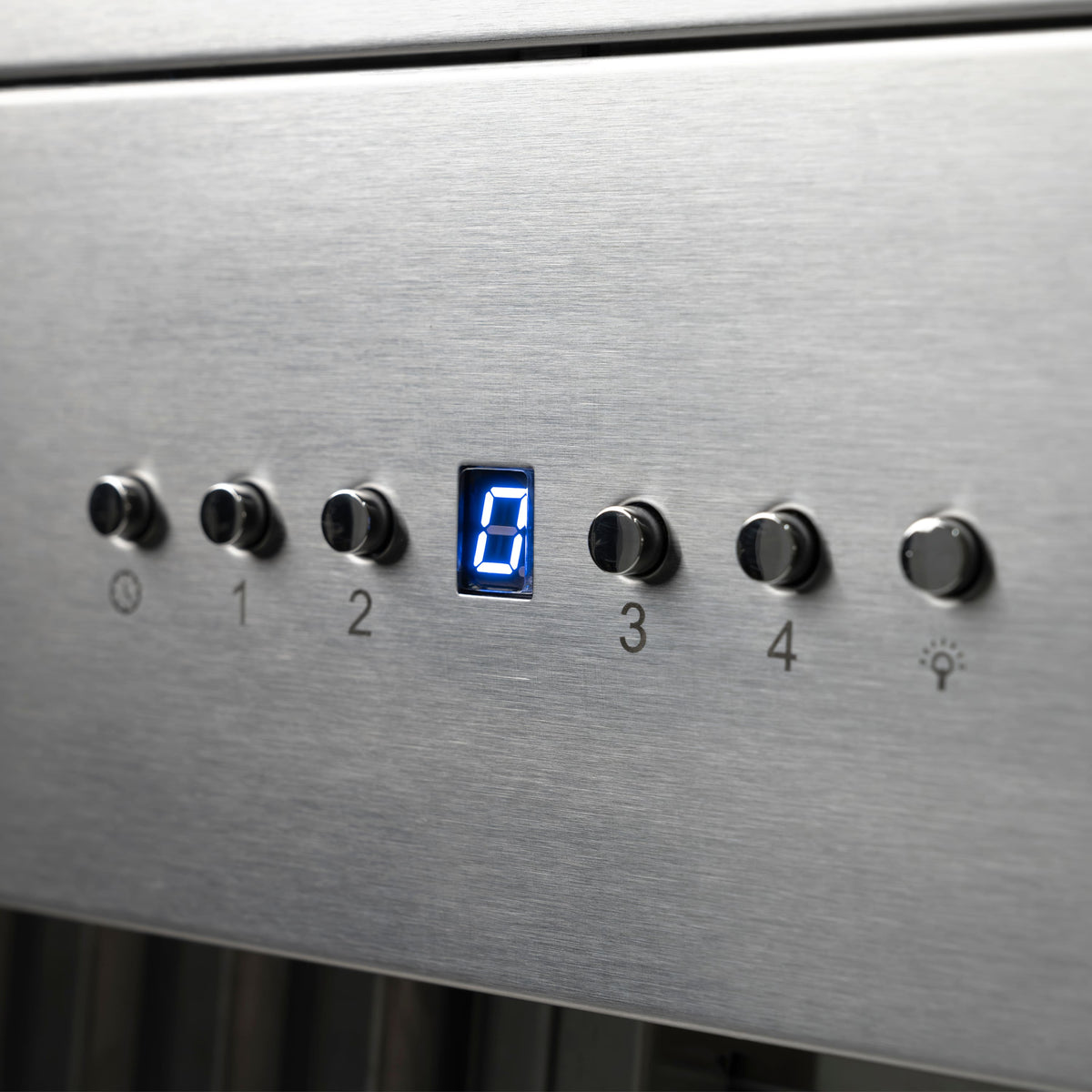

- Convenient Control Panel Easy-to-use push button controls let you easily adjust fan speeds and lighting options
- Powerful Ventilation The highest speed setting of 700 CFM air flow efficiently moves large amounts of air away from your cooking area

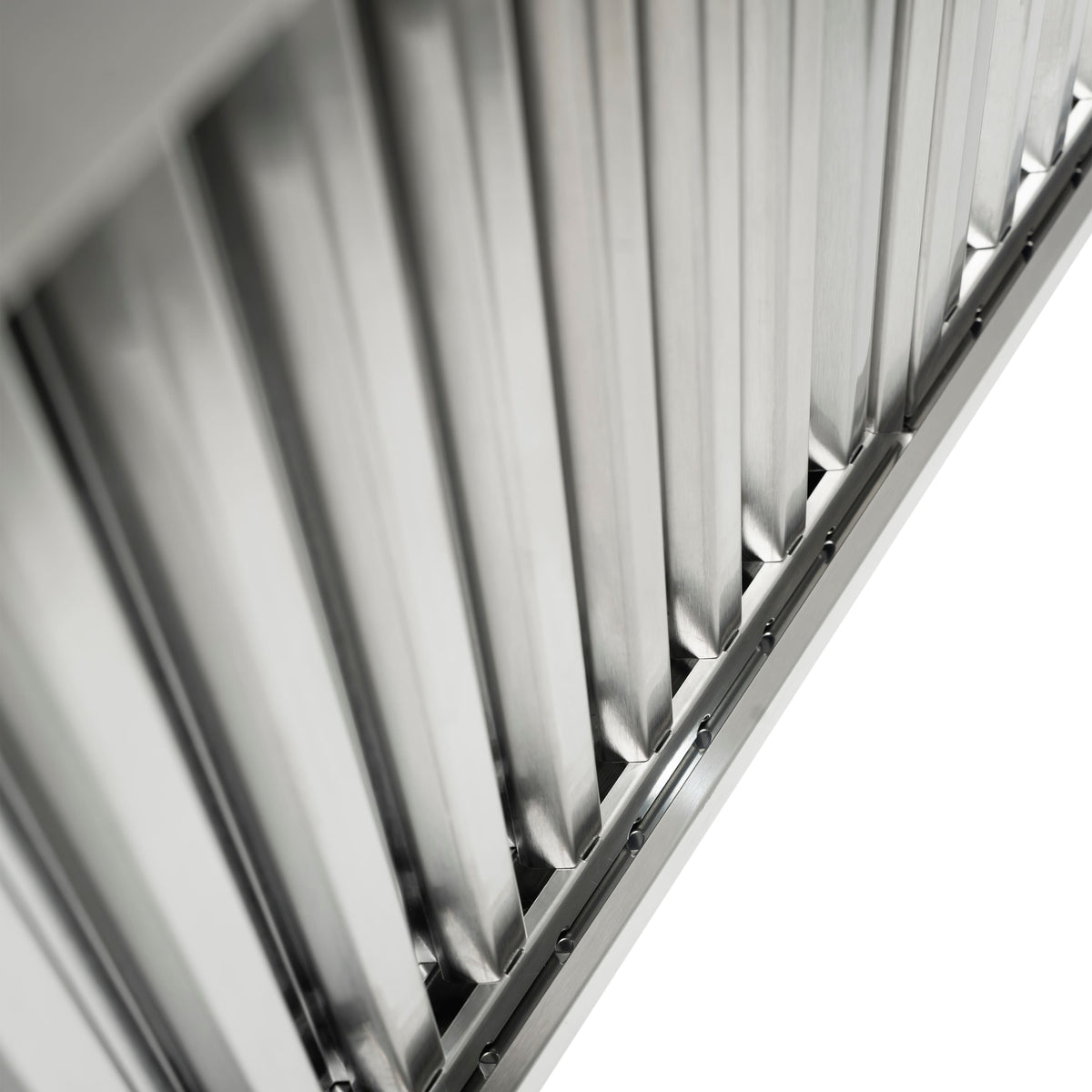

- Minimal Cleaning This range hood insert includes dishwasher-safe stainless steel baffle filters that are simple to clean

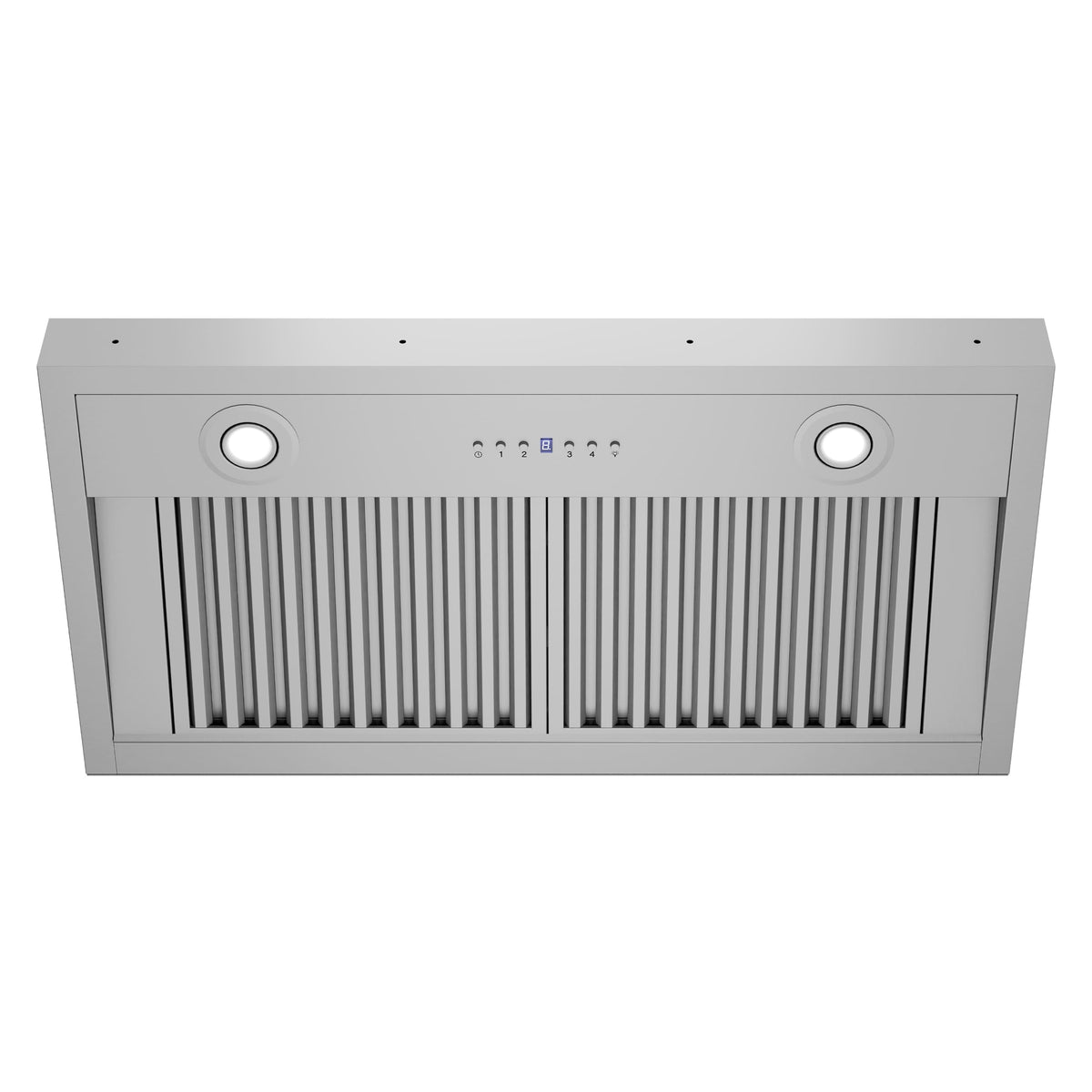

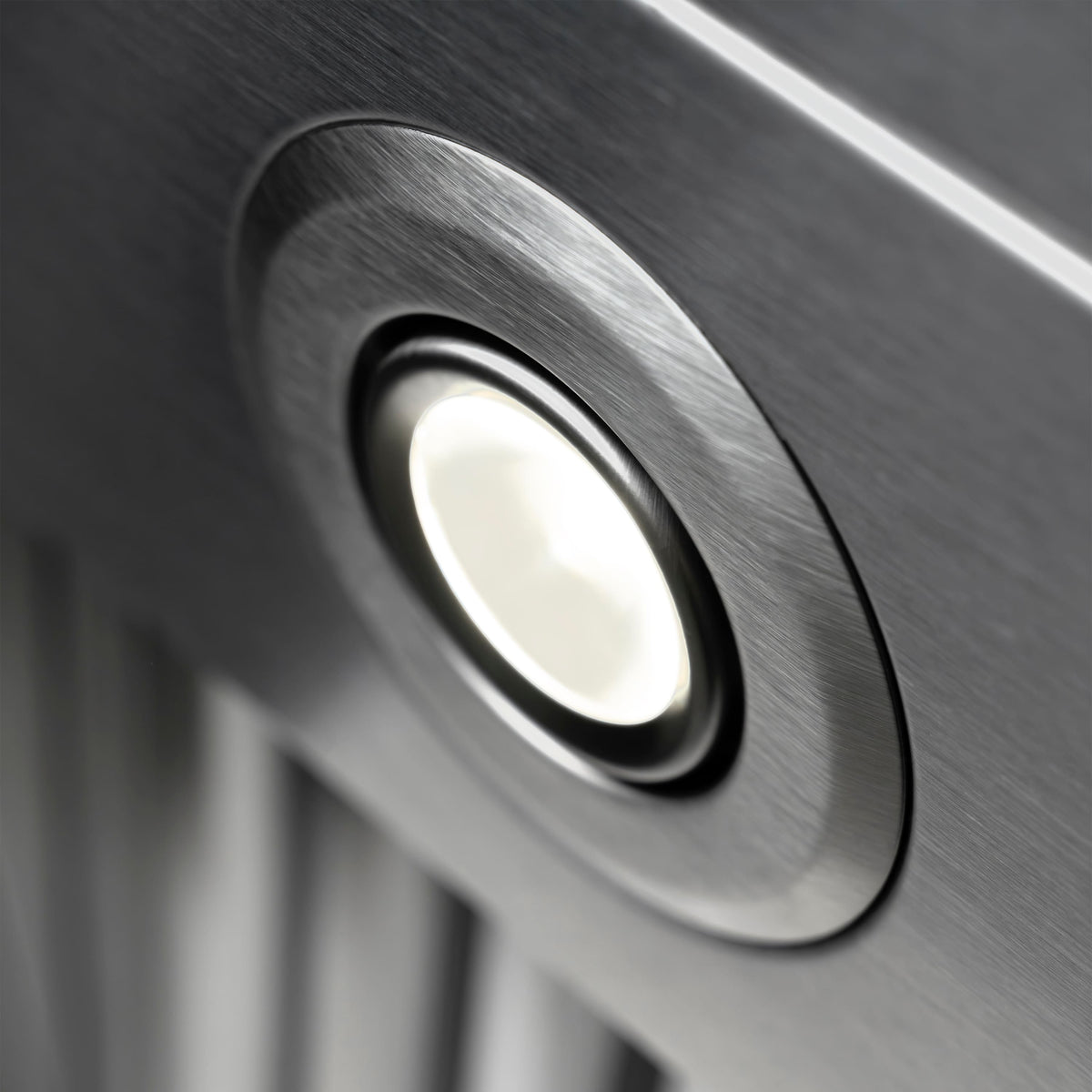

- Adjustable LED Lighting This range hood insert comes equipped with 2 energy-efficient adjustable LED lights to illuminate the cooking surface below
- Standard Ducting ZLINE hood inserts are designed to fit standard (circular) ductwork for simple installation; this hood includes a transition piece for 8 in. diameter ducting
