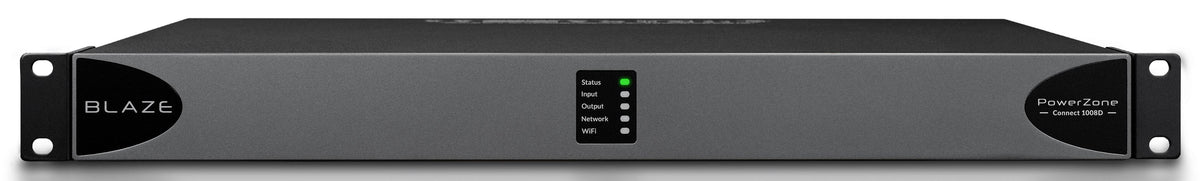

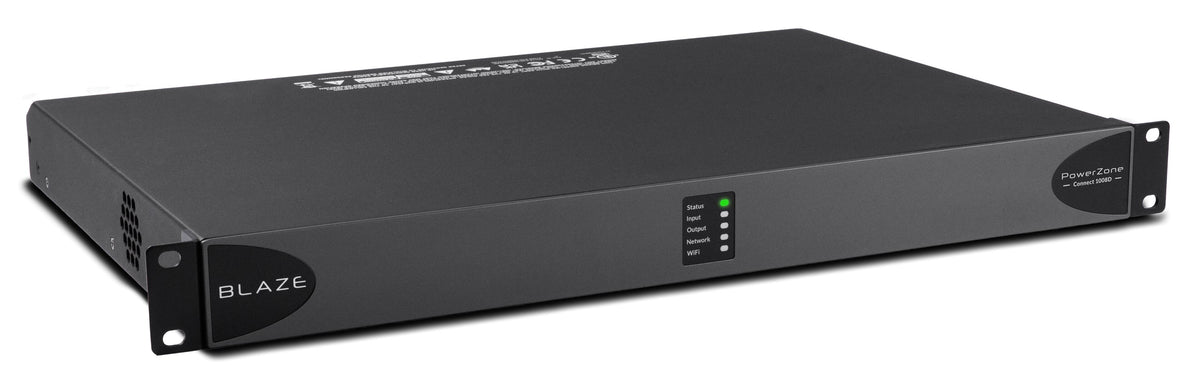

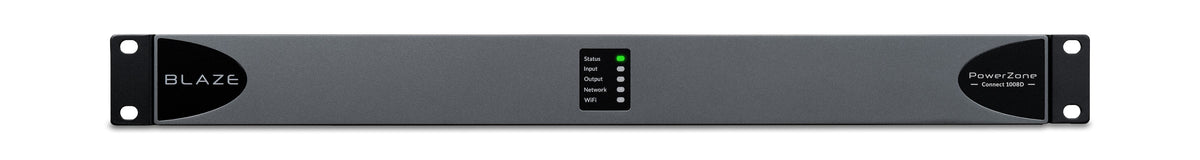

Sonance - Blaze PowerZone Connect 1008D – Amplificador Clase D de 1000 W con DSP, 8 canales y Dante (unidad) – Negro
Disponible en stock
La serie PowerZone Connect 1U es una línea de amplificadores de clase D con DSP diseñada para simplificar la vida de los instaladores de sistemas, proporcionando una fiabilidad, eficiencia y configuración del sistema excepcionales e inigualables. Su factor de forma compacto los convierte en la elección ideal para proyectos de instalación de audio/voz con limitaciones de espacio que requieren un alto rendimiento de salida de hasta 1000 W. La familia 1U alimenta tanto altavoces convencionales de baja impedancia (de 4 a 16 ohmios) como altavoces de tensión constante (70 V/100 V) acoplados por transformador, y cuenta con tecnología de reparto automático de potencia para una distribución proporcional. Nuestra intuitiva aplicación web PowerZone Control está integrada en todos nuestros amplificadores PowerZone Connect para facilitar la configuración del sistema. PowerZone Control facilita la personalización sin esfuerzo incluso de los sistemas de audio/voz más complejos al ofrecer numerosas opciones de configuración DSP y funciones de ajuste, que incluyen configuración multizona, mezcla de entradas, prioridad y atenuación (ducking), restricción, ecualización de entrada y salida, enrutamiento de salida S/PDIF, filtro de paso alto, preajustes de altavoces, retardo, configuración del controlador Wall-S1, generador de senoidales y mucho más.
No se pudo cargar la disponibilidad de recogida
Shipping & Returns
Shipping & Returns
Most orders ship within a few business days — you will get tracking by email as soon as it is on the way. Questions about a delivery or a return? Reach our US-based team at info@improvemintfinancial.com or (855) 447-4921.
Highlights
- Number of Channels : 8 , see in specifications
- Total Power Handling : 1000 W , see in specifications
- Minimum Frequency Response : 20Hz , see in specifications
- Maximum Frequency Response : 20 kHz , see in specifications
- Amplifier Type : Integrated amplifiers , see in specifications
- Amplifier Class : D , see in specifications
- Network Connector(s) : 1 x LAN , see in specifications
- Impedance : 8 ohms , see in specifications
Specifications
General
| Brand | Sonance |
|---|---|
| Model Number | UBX-888-031 |
| Product Name | Blaze PowerZone Connect 1008D – 1000 W DSP-enabled Class-D amplifier with 8 channels and Dante (Each) |
| Product Width | 12.6 inches |
| Product Depth | 17.3 inches |
| Product Height | 1.7 inches |
| Product Weight | 8.4 pounds |
| Warranty - Parts | 5 years |
| Warranty - Labor | 5 Years |
All specifications (32)
Key specs
| Amplifier Class | D |
|---|---|
| Audio Only Inputs | Unbalanced RCA |
| Audio/Video Inputs | No audio/video inputs |
| Continuous Watts x Channel @ Ohms | 125 W x 8 @ 8 Ohm |
| Color | Black |
| Maximum Watts x Channel @ Ohms | 250 W @ 4 ohms bridged (4 channels) |
| Total Power Handling | 1000 watts |
Other
| Number of Channels | 8 |
|---|---|
| Minimum Frequency Response | 20 hertz |
| Impedance | 8 ohms |
| Maximum Frequency Response | 20 kilohertz |
| Amplifier Type | Integrated amplifiers |
| Video Only Inputs | No video only inputs |
| Network Connector(s) | 1 x LAN |
| Antenna Input | No antenna inputs |
| Speaker-Level Inputs | No |
| Line-Level Inputs | Yes |
| Speaker Connection Type | Banana Jack/Screw Terminals |
| Audio/Video Outputs | No audio/video outputs |
| Video Only Outputs | No video only outputs |
| App Compatible | Yes |
| Fan Cooled | Yes |
| Bridgeable | Yes |
Features
- 1RU Form Factor Compact 1RU rack-mount design for easy integration into standard equipment racks.
- Full-Matrix DSP Configuration via PowerZone Control Configure and manage the full DSP matrix directly through the built-in PowerZone Control web application.
- Hybrid Power Distribution (4 ohm, 8 ohm, 16 ohm, 70V/100 V) Flexible power distribution supporting both low-impedance (4 ohm to 16 ohm) and high-impedance (70 V/100 V) speaker configurations.
- Pascal UMAC Class-D Technology High-efficiency Class-D amplification powered by Pascal UMAC for superior audio performance.
- Dante Ultimo Chip (4×4 Channels) Integrated 4x4 Dante Ultimo interface for seamless digital audio networking.
- S/PDIF Input/Output Supports digital audio connectivity through S/PDIF inputs and outputs.
- Configurable GPIO (general purpose input/output) Customizable GPIO ports for enhanced control and integration with external systems.
- Energy Efficiency & Compliance Compliant with ErP and Energy Star standards for environmentally friendly operation.
- UL Listed Audio Equipment Certified to meet UL safety standards for professional audio equipment.
- UREC™ Universal Power Supply with PFC Reliable power supply featuring Power Factor Correction (PFC) for global compatibility.
- 5-Year Warranty Comes with a comprehensive 5-year warranty for long-term peace of mind.
Customers also viewed
From
Sonance - UA 2-125 ARC – Amplificador de audio para TV de 2.1 canales con HDMI, salida para subwoofer y compatible con kit de subwoofer inalámbrico (unidad) - Negro
Elige tu opción
From
Sonance - Blaze PowerZone Connect 504D – Amplificador Clase D de 500 W con DSP, 4 canales y Dante (unidad) – Negro
Elige tu opción
Customers also bought
From

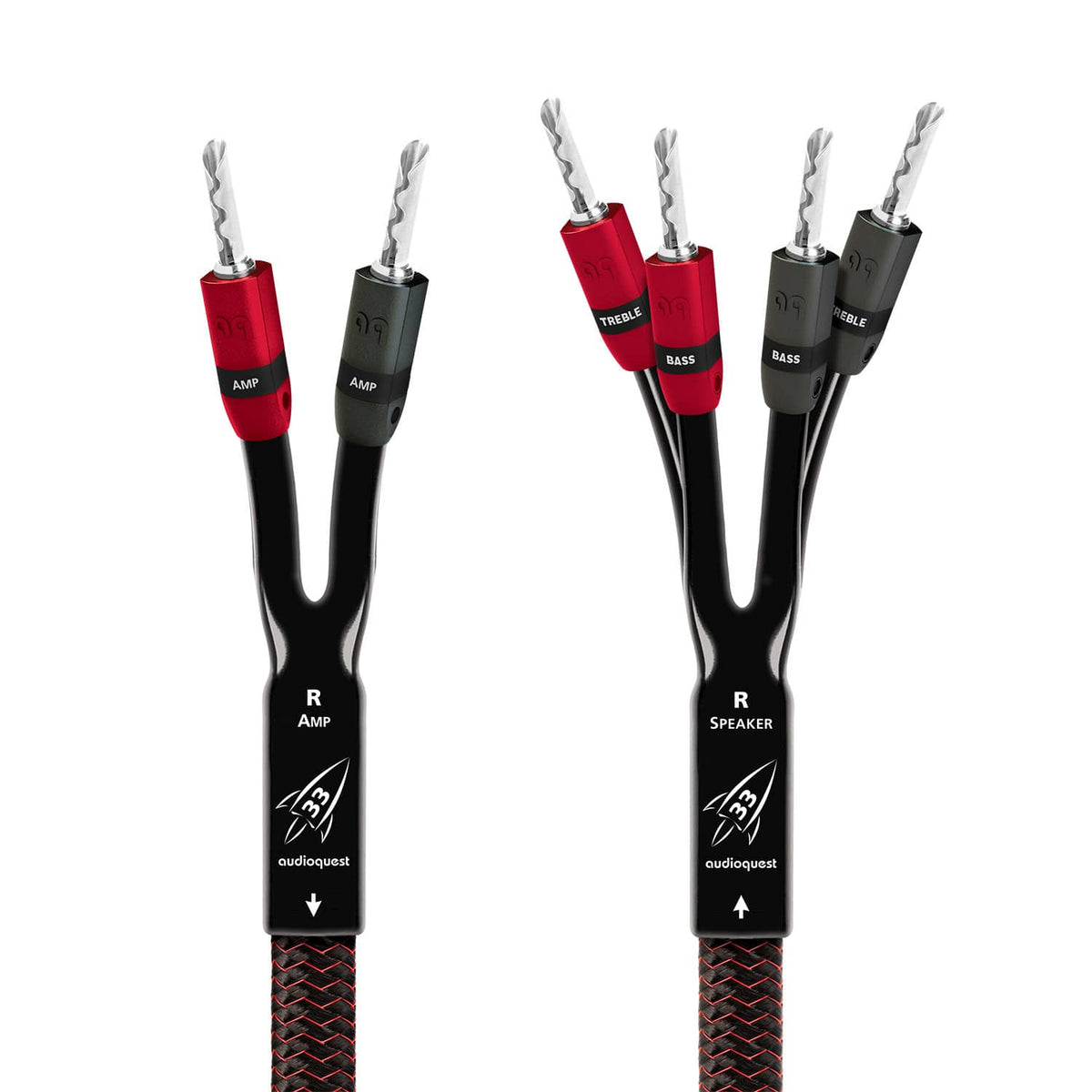

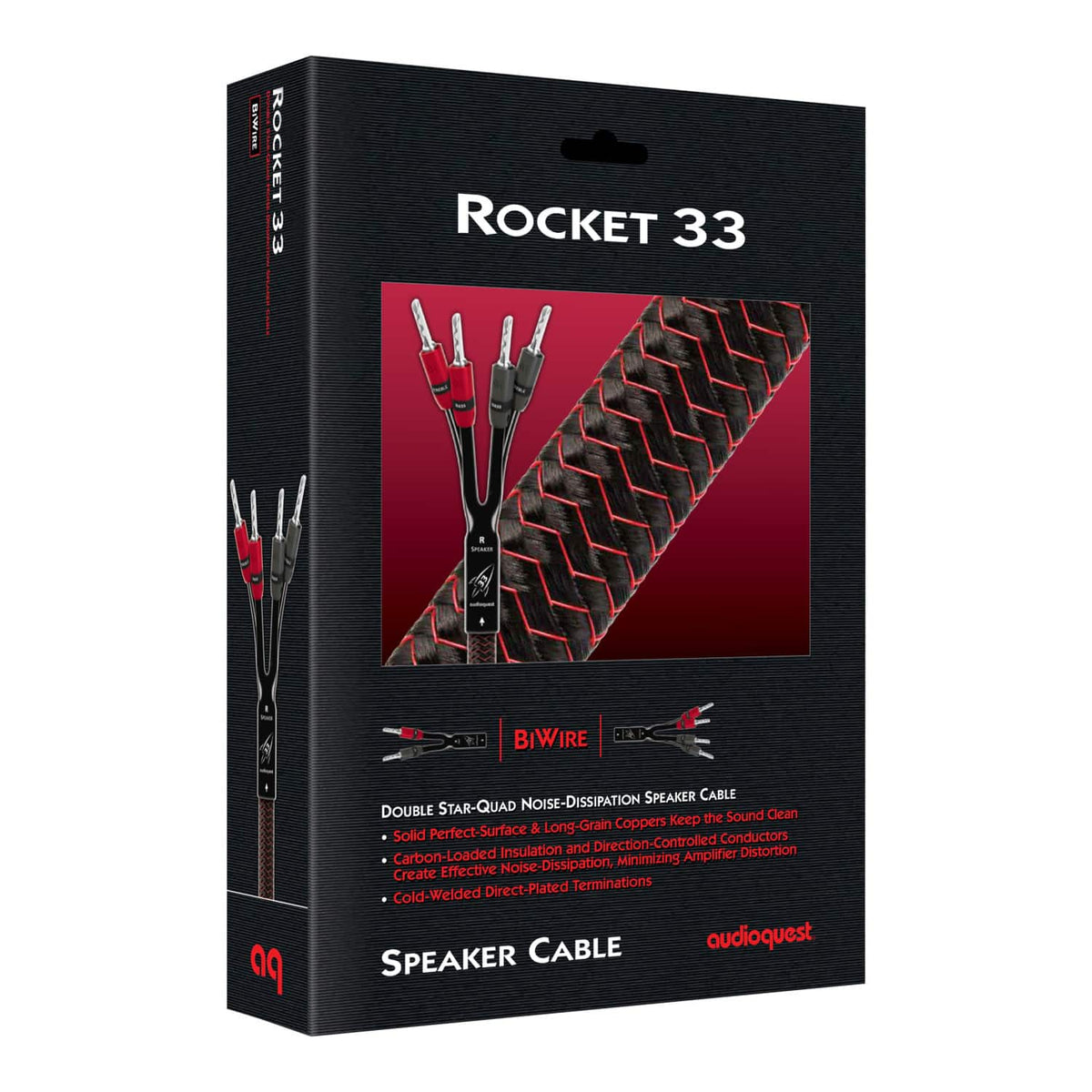

AudioQuest - Rocket 33 Single BiWire 16' Analog Speaker Cable w/ SureGrip 300 Connectors with Banana to Banana Connectors - Red on Black
